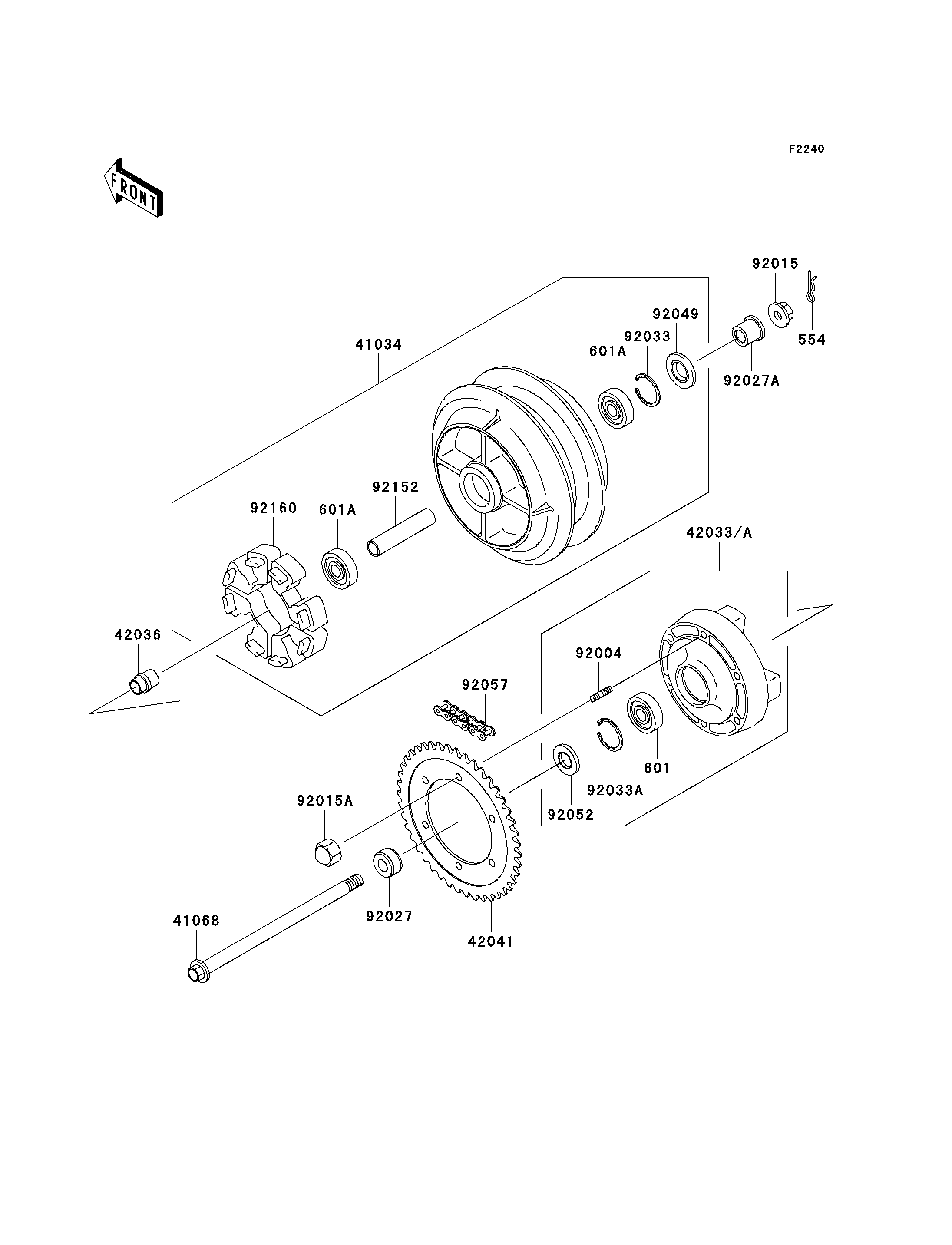

2000 Vulcan 800 Drifter - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
554
601
601A
601A
41034
41068
42033A
42036
42041
92004
92015
92015A
92027
92027A
92033
92033A
92049
92052
92057
92152
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-SNAP,10MM 554 554A1000 1
BEARING-BALL,#6205UG 601 601B6205UG 1
BEARING-BALL,#6303UUC3 601A 601B6303UU 2
DRUM-ASSY,REAR BRAKE 41034 41034-1299 1
AXLE,RR 41068 41068-1365 1
COUPLING-ASSY,RR HUB 42033A 42033-1204 1
SLEEVE,RR HUB,L=33 42036 42036-1146 1
SPROCKET-HUB,40T 42041 42041-1519 1
STUD,10X19.5 92004 92004-1151 6
NUT,FLANGED,16MM 92015 92015-1946 1
NUT,CAP,10MM 92015A 92015-1961 6
COLLAR,REAR AXLE,LH,L=18.5 92027 92027-1321 1
COLLAR,RR AXLE,L=28 92027A 92027-1875 1
RING-SNAP,47MM 92033 92033-1042 1
RING-SNAP,52MM 92033A 92033-1043 1
SEAL-OIL,BJN28475 92049 92049-1056 1
SEAL-OIL,TWC35527 92052 92052-006 1
CHAIN,DRIVE,EK50MV-OX112L 92057 92057-1284 1
COLLAR,RR HUB,L=101 92152 92152-1117 1
DAMPER,SHOCK,RR HUB 92160 92160-1697 4
