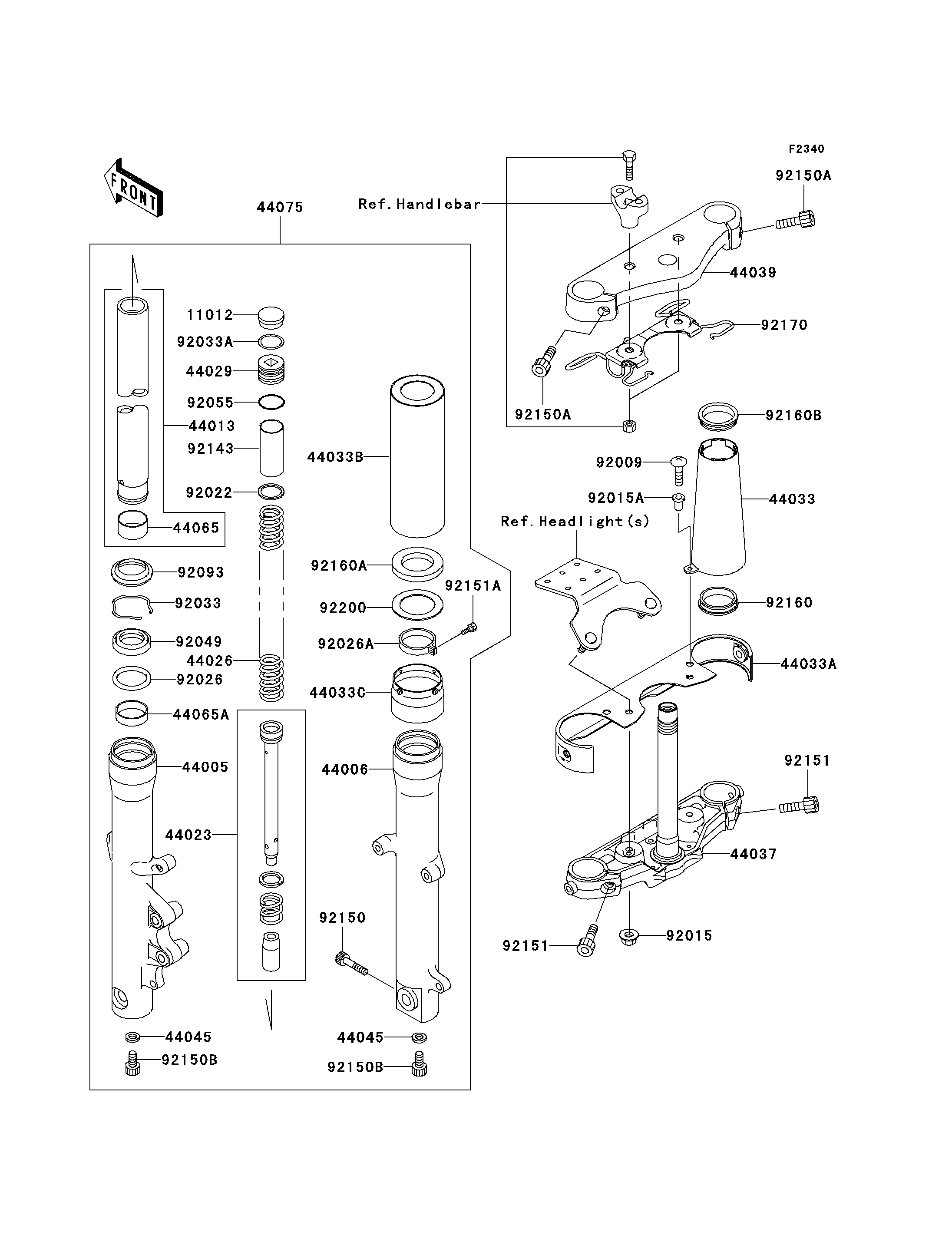

Parts Diagrams |
11012
44005
44006
44013
44023
44026
44029
44033
44033A
44033B
44033C
44037
44039
44045
44045
44065
44065A
44075
92009
92015
92015A
92022
92026
92026A
92033
92033A
92049
92055
92093
92143
92150
92150A
92150A
92150B
92150B
92151
92151
92151A
92160
92160A
92160B
92170
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,FORK TOP | 11012 | 11012-1618 | 2 | ||
PIPE-LEFT FORK OUTER | 44005 | 44005-1393 | 1 | ||
PIPE-RIGHT FORK OUTER | 44006 | 44006-1392 | 1 | ||
PIPE-FORK INNER | 44013 | 44013-1467 | 2 | ||
CYLINDER-SET-FORK | 44023 | 44023-1140 | 2 | ||
SPRING-FRONT FORK | 44026 | 44026-1698 | 2 | ||
SEAT-FORK SPRING | 44029 | 44029-1125 | 2 | ||
COVER-FORK | 44033 | 44033-1239 | 2 | ||
COVER-FORK | 44033A | 44033-1240 | 1 | ||
COVER-FORK | 44033B | 44033-1241 | 2 | ||
COVER-FORK | 44033C | 44033-1252 | 2 | ||
HOLDER-FORK UNDER | 44037 | 44037-1385 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-1289 | 1 | ||
GASKET,FORK CYLINDER BOLT | 44045 | 44045-051 | 2 | ||
BUSHING-FRONT FORK,INNER PIPE | 44065 | 44065-1131 | 2 | ||
BUSHING-FRONT FORK | 44065A | 44065-1132 | 2 | ||
DAMPER-SET-FORK | 44075 | 44075-1085 | 1 | ||
SCREW,5X16,BLACK | 92009 | 92009-1654 | 2 | ||
NUT,FLANGED,8MM,BLACK | 92015 | 92015-1183 | 2 | ||
NUT,WELL,5MM | 92015A | 92015-1757 | 2 | ||
WASHER | 92022 | 92022-1909 | 2 | ||
SPACER,FORK OUTER | 92026 | 92026-1276 | 2 | ||
SPACER | 92026A | 92026-1515 | 2 | ||
RING-SNAP,FORK OUTER | 92033 | 92033-1222 | 2 | ||
RING-SNAP,SPRING SEAT | 92033A | 92033-1223 | 2 | ||
SEAL-OIL,FORK | 92049 | 92049-1363 | 2 | ||
RING-O,SPRING SEAT | 92055 | 92055-1363 | 2 | ||
SEAL,FORK | 92093 | 92093-1268 | 2 | ||
COLLAR,FORK,L=100 | 92143 | 92143-1923 | 2 | ||
BOLT,SOCKET,10X40 | 92150 | 92150-1029 | 1 | ||
BOLT,SOCKET,8X30 | 92150A | 92150-1031 | 2 | ||
BOLT,SOCKET,8X18 | 92150B | 92150-1432 | 2 | ||
BOLT,SOCKET,10X25 | 92151 | 92151-1083 | 2 | ||
BOLT,SOCKET,4X16 | 92151A | 92151-1356 | 2 | ||
DAMPER | 92160 | 92160-1892 | 2 | ||
DAMPER | 92160A | 92160-1927 | 2 | ||
DAMPER | 92160B | 92160-1968 | 2 | ||
CLAMP | 92170 | 92170-1990 | 1 | ||
WASHER | 92200 | 92200-1417 | 2 |
