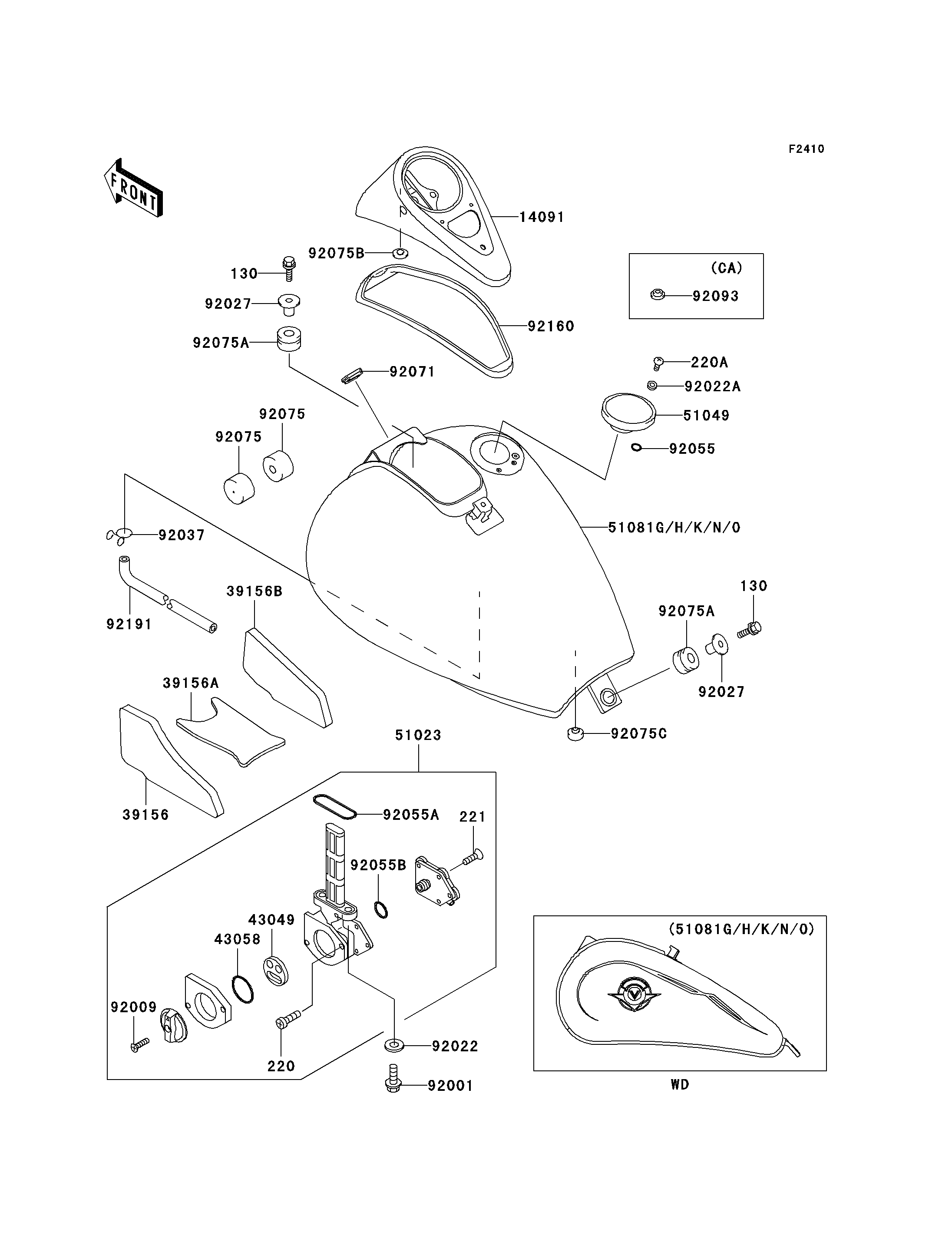

2000 Vulcan 800 Drifter - Fuel Tank(4/4)

DOWNLOAD PDF
SELECT A NEW PART
14091
14091
14091
14091
39156
39156
39156
39156
39156A
39156A
39156A
39156A
39156B
39156B
39156B
39156B
43049
43049
43049
43049
43058
43058
43058
43058
51023
51023
51023
51023
51049
51049
51049
51049
92001
92001
92001
92001
92009
92009
92009
92009
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92027
92027
92027
92027
92027
92027
92027
92027
92055
92055
92055
92055
92055A
92055A
92055A
92055A
130
130
130
130
130
130
130
130
220
220
220
220
220A
220A
220A
220A
221
221
221
221
92055B
92055B
92055B
92055B
92071
92071
92071
92071
92075
92075
92075
92075
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075B
92075B
92075B
92075B
92075C
92075C
92075C
92075C
92160
92160
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,METER 14091 14091-1077 1
PAD,FUEL TANK,LH 39156 39156-1512 1
PAD,FUEL TANK,CNT 39156A 39156-1513 1
PAD,FUEL TANK,RH 39156B 39156-1629 1
PACKING,TAP VALVE 43049 43049-1075 1
RING,TAP LEVER 43058 43058-1083 1
TAP-ASSY,FUEL 51023 51023-1219 1
CAP-TANK,FUEL 51049 51049-1103 1
BOLT,6X25 92001 92001-1524 2
SCREW,4X12 92009 92009-1742 1
WASHER,6.2X11X1.5 92022 92022-183 2
WASHER,5.1X10X1.0 92022A 92022-1977 2
COLLAR,L=19.3 92027 92027-1780 2
RING-O 92055 92055-1023 2
RING-O,FUEL TAP PACKING 92055A 92055-1112 1
BOLT-FLANGED,8X30 130 130H0830 2
SCREW-PAN-CROS 220 220B0308 2
SCREW-PAN-CROS 220A 220D0510 2
SCREW-CSK-CROS,4X14 221 221B0414 5
RING-O 92055B 92055-1539 1
GROMMET 92071 92071-1187 1
DAMPER,FUEL TANK 92075 92075-125 2
DAMPER 92075A 92075-1736 2
DAMPER,RUBBER 92075B 92075-261 1
DAMPER 92075C 92075-281 1
DAMPER,METER COVER 92160 92160-1593 1
TANK-COMP-FUEL,P.B.BEIGE 51081H 51081-5133-X8 1 CNUS
TANK-COMP-FUEL,P.B.BEIGE 51081K 51081-5137-X8 1 CA
TANK-COMP-FUEL,S.BLUE 51081N 51081-5169-Q5 1 CNUS
TANK-COMP-FUEL,S.BLUE 51081O 51081-5186-Q5 1 CA
CLAMP,TUBE 92037 92037-147 1 CNUS
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
TUBE,DRAIN 92191 92191-1015 1 CNUS
