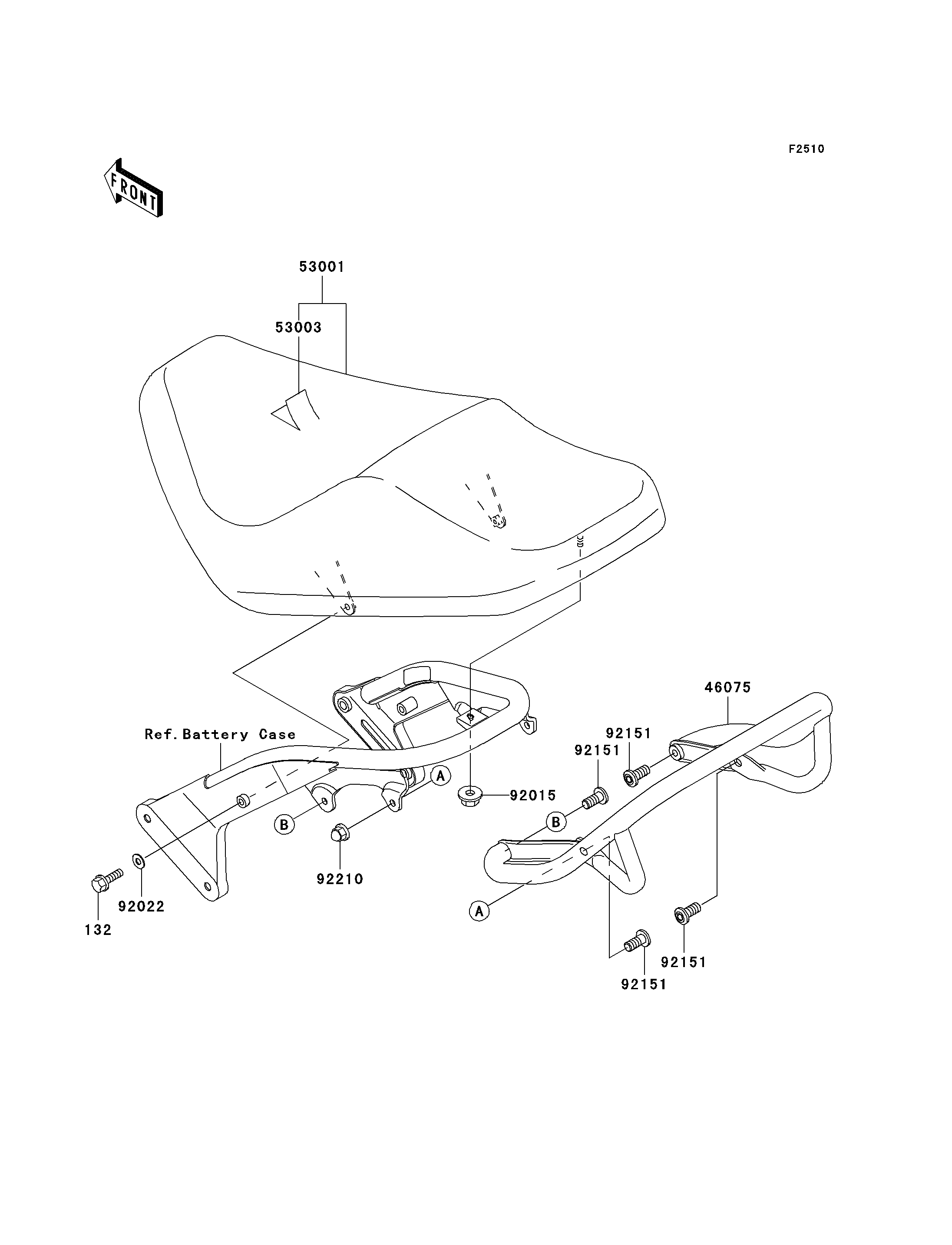

132
46075
53001
53003
92015
92022
92151
92151
92151
92151
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132J0650 2
GRIP 46075 46075-1186 1
SEAT-ASSY,DUAL,BLACK 53001 53001-1898-MA 1
LEATHER,SEAT,BLACK 53003 53003-1432-MA 1
NUT,LOCK,FLANGED,6MM 92015 92015-1603 1
WASHER,7X16X1.2 92022 92022-1344 2
BOLT,SOCKET,10X22 92151 92151-1577 4
NUT,CAP,10MM 92210 92210-1189 2
