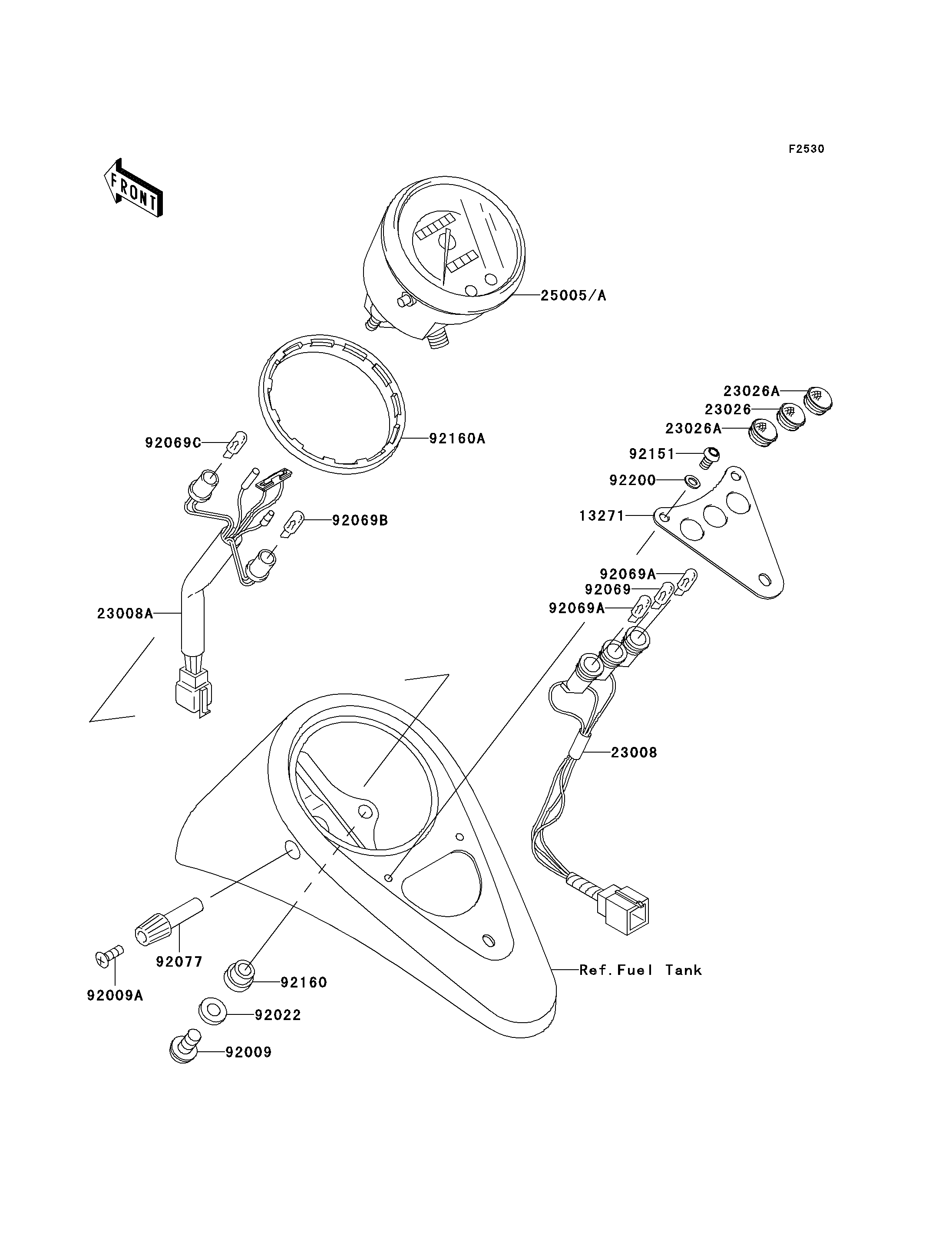

Parts Diagrams |
13271
23008
23008A
23026
23026A
23026A
92009
92009A
92022
92069
92069A
92069A
92069B
92069C
92077
92151
92160
92160A
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PLATE,PILOT LAMP | 13271 | 13271-1136 | 1 | ||
SOCKET-ASSY,PILOT LAMP | 23008 | 23008-1546 | 1 | ||
SOCKET-ASSY,SPEEDOMETER | 23008A | 23008-1604 | 1 | ||
LENS,GREEN | 23026 | 23026-1171 | 1 | ||
LENS,RED | 23026A | 23026-1173 | 2 | ||
SCREW,4X6 | 92009 | 92009-1690 | 2 | ||
SCREW,3X8 | 92009A | 92009-1799 | 1 | ||
WASHER,4.3X12.5X1 | 92022 | 92022-1949 | 2 | ||
BULB,12V 3.4W | 92069 | 92069-1007 | 1 | ||
BULB,12V 1.7W | 92069A | 92069-1059 | 2 | ||
BULB,12V 3W | 92069B | 92069-1068 | 1 | ||
BULB,12V 1.7W | 92069C | 92069-1070 | 1 | ||
KNOB,TRIP | 92077 | 92077-1117 | 1 | ||
BOLT,SOCKET,6X10 | 92151 | 92151-1449 | 3 | ||
DAMPER | 92160 | 92160-1068 | 2 | ||
DAMPER,SHOCK,METER | 92160A | 92160-1380 | 1 | ||
WASHER,6.2X10X1 | 92200 | 92200-1465 | 3 | ||
SPEEDOMETER,MPH | 25005 | 25005-1653 | 1 | CAUS | |
SPEEDOMETER,KPH | 25005A | 25005-1656 | 1 | CN |
PLATE,PILOT LAMP | |
REF # | 13271 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SOCKET-ASSY,PILOT LAMP | |
REF # | 23008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SOCKET-ASSY,SPEEDOMETER | |
REF # | 23008A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LENS,GREEN | |
REF # | 23026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LENS,RED | |
REF # | 23026A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,4X6 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,3X8 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,4.3X12.5X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BULB,12V 3.4W | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BULB,12V 1.7W | |
REF # | 92069A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BULB,12V 3W | |
REF # | 92069B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BULB,12V 1.7W | |
REF # | 92069C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KNOB,TRIP | |
REF # | 92077 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X10 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,SHOCK,METER | |
REF # | 92160A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,6.2X10X1 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SPEEDOMETER,MPH | |
REF # | 25005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CAUS |
REMARKS |
SPEEDOMETER,KPH | |
REF # | 25005A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
