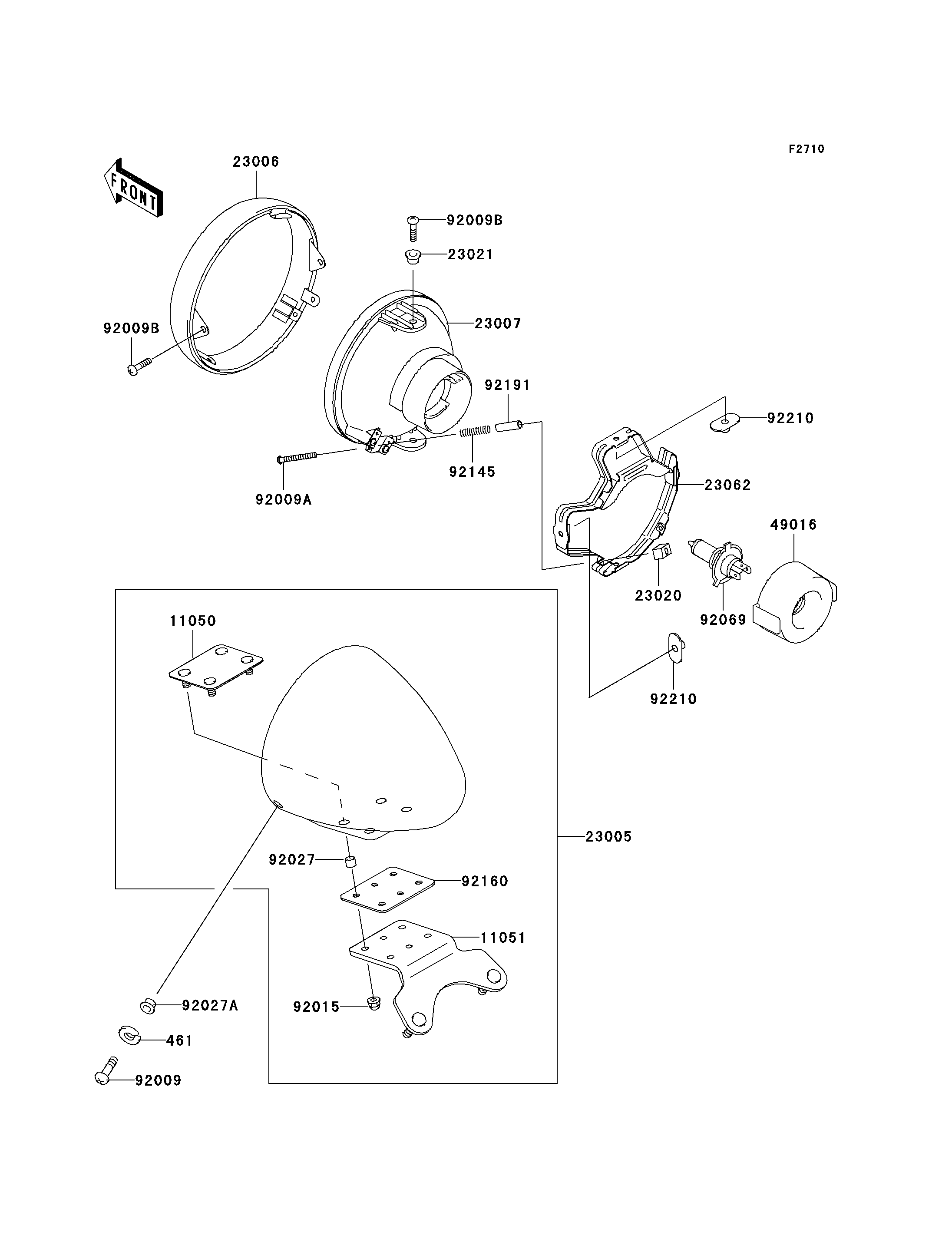

2000 Vulcan 800 Drifter - Headlight(s)
461
11050
11051
23005
23006
23007
23020
23021
23062
49016
92009
92009A
92009B
92009B
92015
92027
92027A
92069
92145
92160
92191
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
WASHER-SPRING,5MM,BLACK | 461 | 461K0500 | 2 | ||
BRACKET,HEAD LAMP BODY | 11050 | 11050-1978 | 1 | ||
BRACKET,HEAD LAMP BODY | 11051 | 11051-1085 | 1 | ||
BODY-COMP-HEAD LAMP,BLACK | 23005 | 23005-1172-10 | 1 | ||
RIM-LAMP | 23006 | 23006-1079 | 1 | ||
LENS-COMP,HEAD LAMP | 23007 | 23007-1359 | 1 | ||
NUT,4MM,FOCUS ADJUST | 23020 | 23020-018 | 2 | ||
WASHER | 23021 | 23021-010 | 2 | ||
BRACKET-COMP,HEAD LAMP | 23062 | 23062-1131 | 1 | ||
COVER-SEAL,SOCKET | 49016 | 49016-1203 | 1 | ||
SCREW,5X16 | 92009 | 92009-1693 | 2 | ||
SCREW,FOCUS ADJUST,4X60 | 92009A | 92009-1816 | 2 | ||
SCREW,5X16 | 92009B | 92009-1879 | 4 | ||
NUT,CAP,6MM,BLACK | 92015 | 92015-1170 | 4 | ||
COLLAR,6.8X10X6 | 92027 | 92027-103 | 4 | ||
COLLAR,HEAD LAMP,BLACK | 92027A | 92027-1503 | 2 | ||
BULB,12V 60/55W,H4 | 92069 | 92069-1002 | 1 | ||
SPRING,HEAD LAMP LENS | 92145 | 92145-1268 | 2 | ||
DAMPER | 92160 | 92160-1960 | 1 | ||
TUBE,3.5X4.5X19 | 92191 | 92191-1217 | 2 | ||
NUT,SPECIAL,5MM | 92210 | 92210-1060 | 4 |
