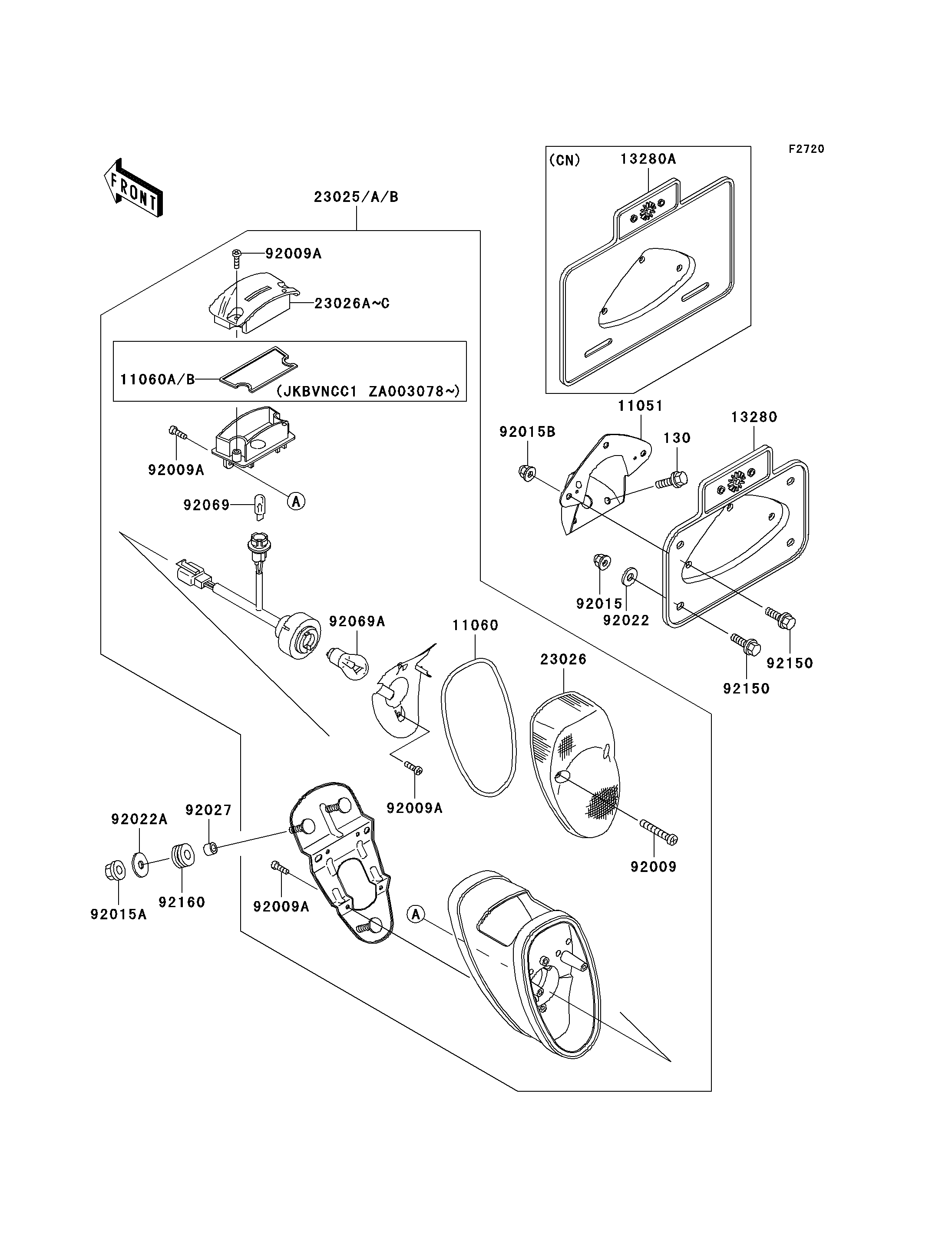

2000 Vulcan 800 Drifter - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
130
11051
11060
11060A
23025A
23026
23026B
92009
92009A
92009A
92009A
92009A
92015A
92015B
92022A
92027
92069
92069A
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0612 3
BRACKET,LICENSE HOLDER 11051 11051-1086 1
GASKET,TAIL LAMP 11060 11060-1884 1
GASKET,LICENSE LENS 11060A 11060-1939 1
LAMP-TAIL 23025A 23025-1293 1
LENS,TAIL 23026 23026-1220 1
LENS,LICENSE 23026B 23026-1224 1
SCREW,TAPPING,4X20 92009 92009-1378 2
SCREW,TAPPING,4X12 92009A 92009-1381 10
NUT,FLANGED,6MM 92015A 92015-1367 3
NUT,CAP,6MM 92015B 92015-1385 3
WASHER,6.5X20X1.6 92022A 92022-1557 3
COLLAR,6.8X10X12 92027 92027-162 3
BULB,12V 5W 92069 92069-1016 1
BULB,12V 21/5W 92069A 92069-1084 1
DAMPER 92160 92160-1162 3
HOLDER,LICENSE PLATE 13280 13280-1103 1 CAUS
HOLDER,LICENSE PLATE 13280A 13280-1130 1 CN
NUT,CAP,6MM,BLACK 92015 92015-1170 2 CN
NUT,CAP,6MM,BLACK 92015 92015-1170 4 CAUS
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 2 CN
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 4 CAUS
BOLT,6X14 92150 92150-1133 5 CN
BOLT,6X14 92150 92150-1133 7 CAUS
