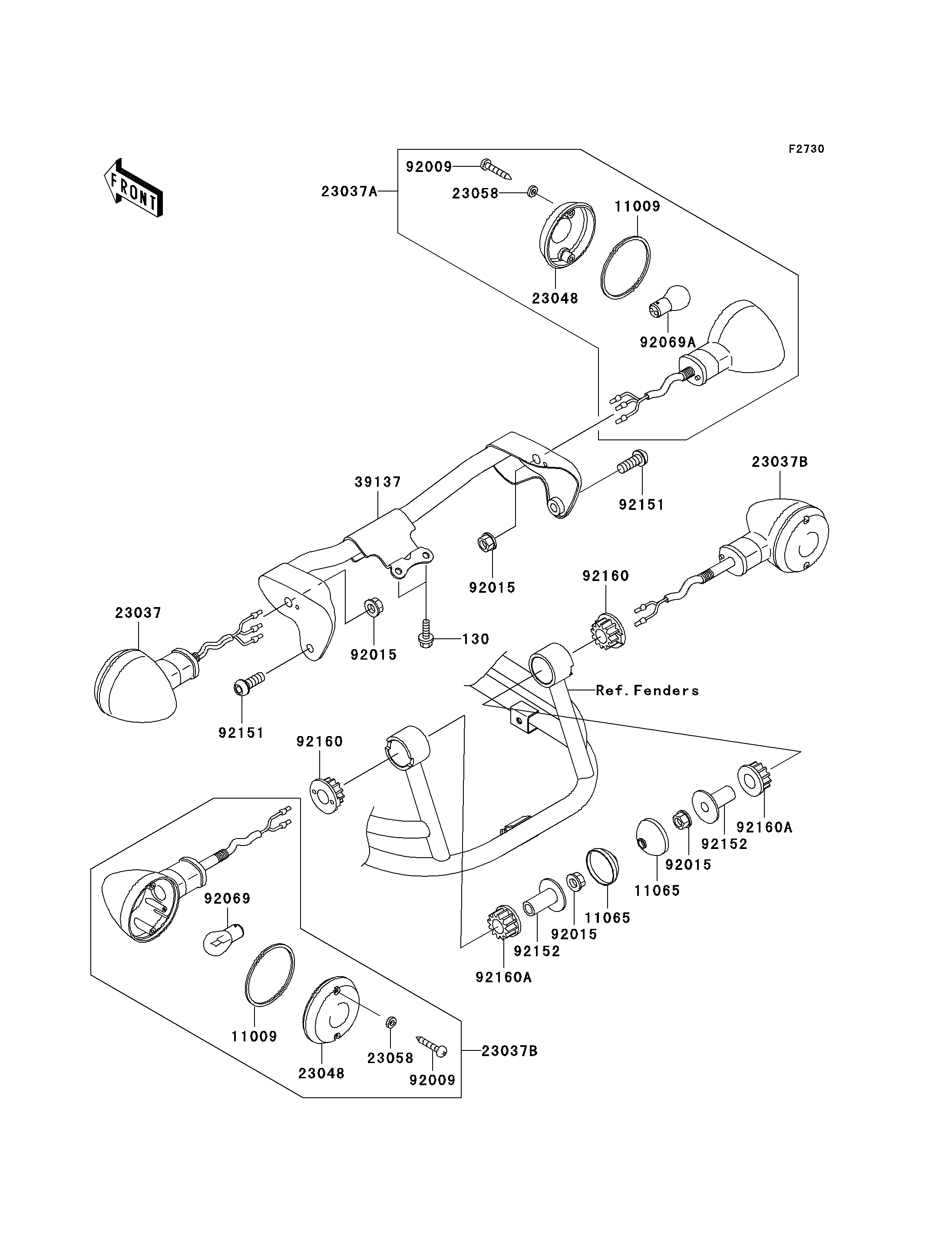

2000 Vulcan 800 Drifter - Turn Signals
130
11009
11009
11065
11065
23037
23037A
23037B
23037B
23048
23048
23058
23058
39137
92009
92009
92015
92015
92015
92015
92069
92069A
92151
92151
92152
92152
92160
92160
92160A
92160A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130J0612 | 2 | ||
GASKET,SIGNAL LAMP | 11009 | 11009-1413 | 4 | ||
CAP,REAR SIGNAL LAMP | 11065 | 11065-1115 | 2 | ||
LAMP-ASSY-SIGNAL,FR,LH | 23037 | 23037-1357 | 1 | ||
LAMP-ASSY-SIGNAL,FR,RH | 23037A | 23037-1358 | 1 | ||
LAMP-ASSY-SIGNAL,RR | 23037B | 23037-1359 | 2 | ||
LENS-SIGNAL LAMP | 23048 | 23048-1066 | 4 | ||
WASHER,PLAIN,4MM | 23058 | 23058-002 | 8 | ||
STAY-COMP,SIGNAL LAMP,FR | 39137 | 39137-1072 | 1 | ||
SCREW,TAPPING,4X25 | 92009 | 92009-1637 | 8 | ||
NUT,FLANGED,10MM | 92015 | 92015-1428 | 4 | ||
BULB,12V 32CP(23W) | 92069 | 92069-055 | 2 | ||
BULB,12V 32/3CP(23/8W) | 92069A | 92069-060 | 2 | ||
BOLT,SOCKET,8X25 | 92151 | 92151-1327 | 2 | ||
COLLAR,REAR SIGNAL LAMP | 92152 | 92152-1202 | 2 | ||
DAMPER | 92160 | 92160-1966 | 2 | ||
DAMPER | 92160A | 92160-1967 | 2 |
