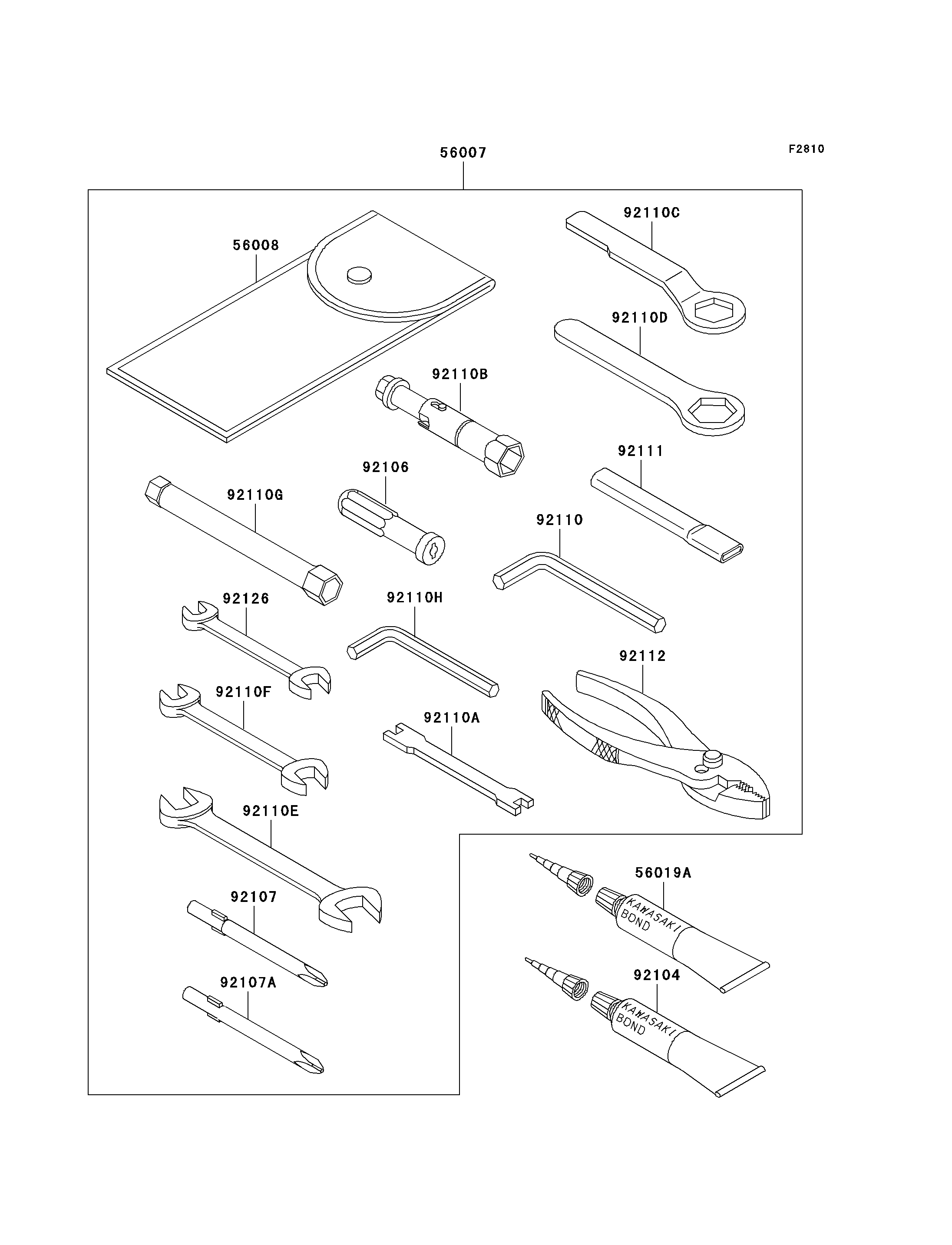

2000 Vulcan 800 Drifter - Owner's Tools
56007
56008
56019A
92104
92106
92107
92107A
92110
92110A
92110B
92110C
92110D
92110E
92110F
92110G
92110H
92111
92112
92126
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TOOL-KIT | 56007 | 56007-1424 | 1 | ||
| BAG,TOOL | 56008 | 56008-1075 | 1 | ||
| THREE BOND TB1211,HT/RS,WHITE | 56019A | 56019-120 | 1 | ||
| GASKET-LIQUID,TUBE,100G,BLACK | 92104 | 92104-1003 | 1 | ||
| GRIP-SCREW DRIVER | 92106 | 92106-1001 | 1 | ||
| TOOL-DRIVER,#3PHILLIPS | 92107 | 92107-005 | 1 | ||
| TOOL-DRIVER,#2PHILLIPS | 92107A | 92107-1053 | 1 | ||
| TOOL-WRENCH,ALLEN,5MM | 92110 | 92110-1015 | 1 | ||
| TOOL-WRENCH,SPOKE | 92110A | 92110-1016 | 1 | ||
| TOOL-WRENCH,BOX,16MM | 92110B | 92110-1132 | 1 | ||
| TOOL-WRENCH,BOX END,22MM | 92110C | 92110-1148 | 1 | ||
| TOOL-WRENCH,BOX END,19MM | 92110D | 92110-1151 | 1 | ||
| TOOL-WRENCH,OPEN END,10X12 | 92110E | 92110-1152 | 1 | ||
| TOOL-WRENCH,OPEN END,14X17 | 92110F | 92110-1153 | 1 | ||
| TOOL-WRENCH,BOX,12MM | 92110G | 92110-1201 | 1 | ||
| TOOL-WRENCH,ALLEN,4MM | 92110H | 92110-3703 | 1 | ||
| TOOL-BAR,BOX END WRENCH | 92111 | 92111-1051 | 1 | ||
| TOOL-PLIERS | 92112 | 92112-1001 | 1 | ||
| TOOL-WRENCH,OPEN END,8X10 | 92126 | 92126-004 | 1 |
