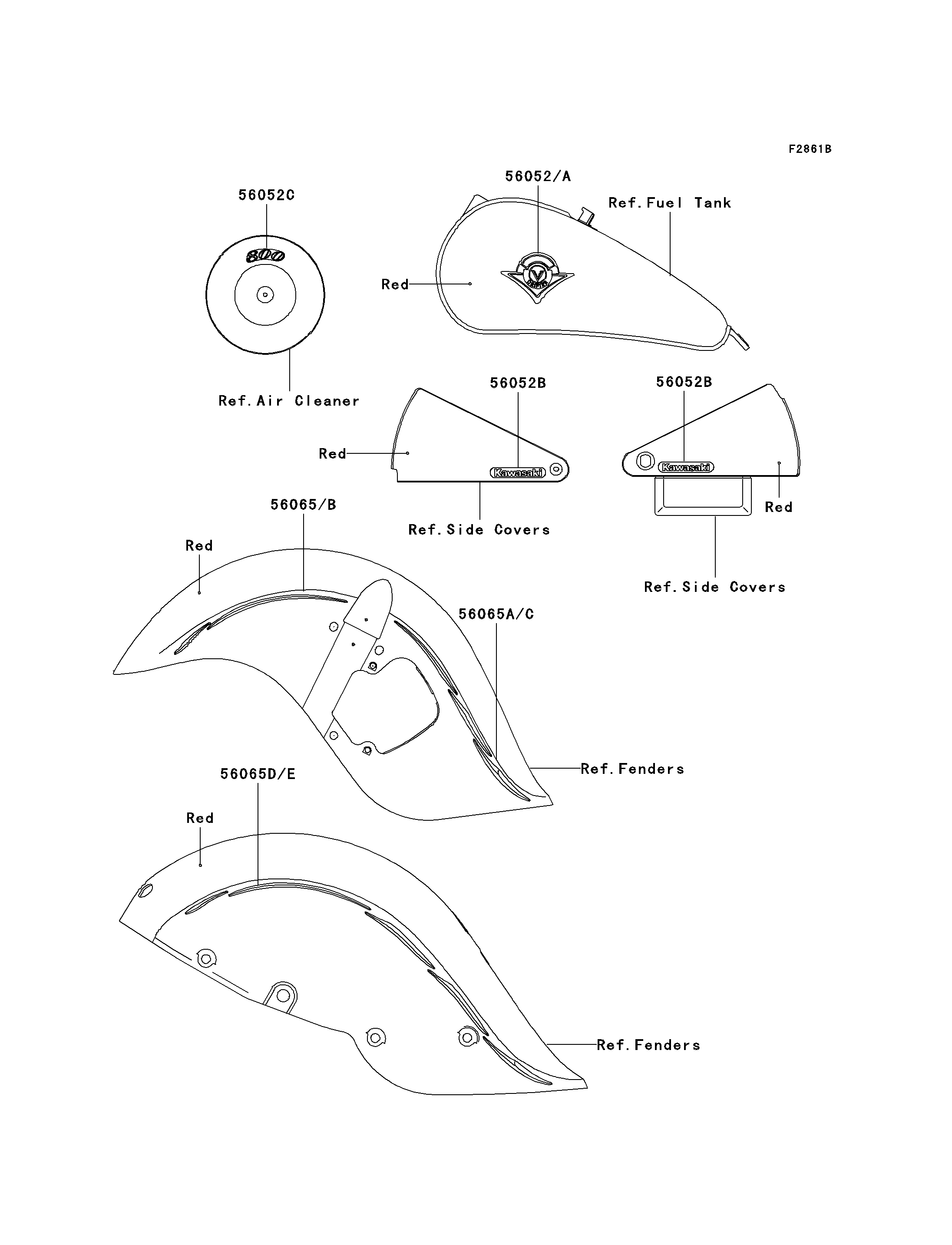

56052
56052A
56052B
56052B
56052C
56065
56065A
56065B
56065C
56065D
56065E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FUEL TANK,LH 56052 56052-1340 1
MARK,FUEL TANK,RH 56052A 56052-1341 1
MARK,SIDE COVER,KAWASAKI 56052B 56052-1533 2
MARK,AIR CLEANER COVER,800 56052C 56052-1544 1
PATTERN,FR FENDER,FR,LH 56065 56065-1296 1
PATTERN,FR FENDER,RR,LH 56065A 56065-1297 1
PATTERN,FR FENDER,FR,RH 56065B 56065-1298 1
PATTERN,FR FENDER,RR,RH 56065C 56065-1299 1
PATTERN,RR FENDER,LH 56065D 56065-1907 1
PATTERN,RR FENDER,RH 56065E 56065-1908 1
