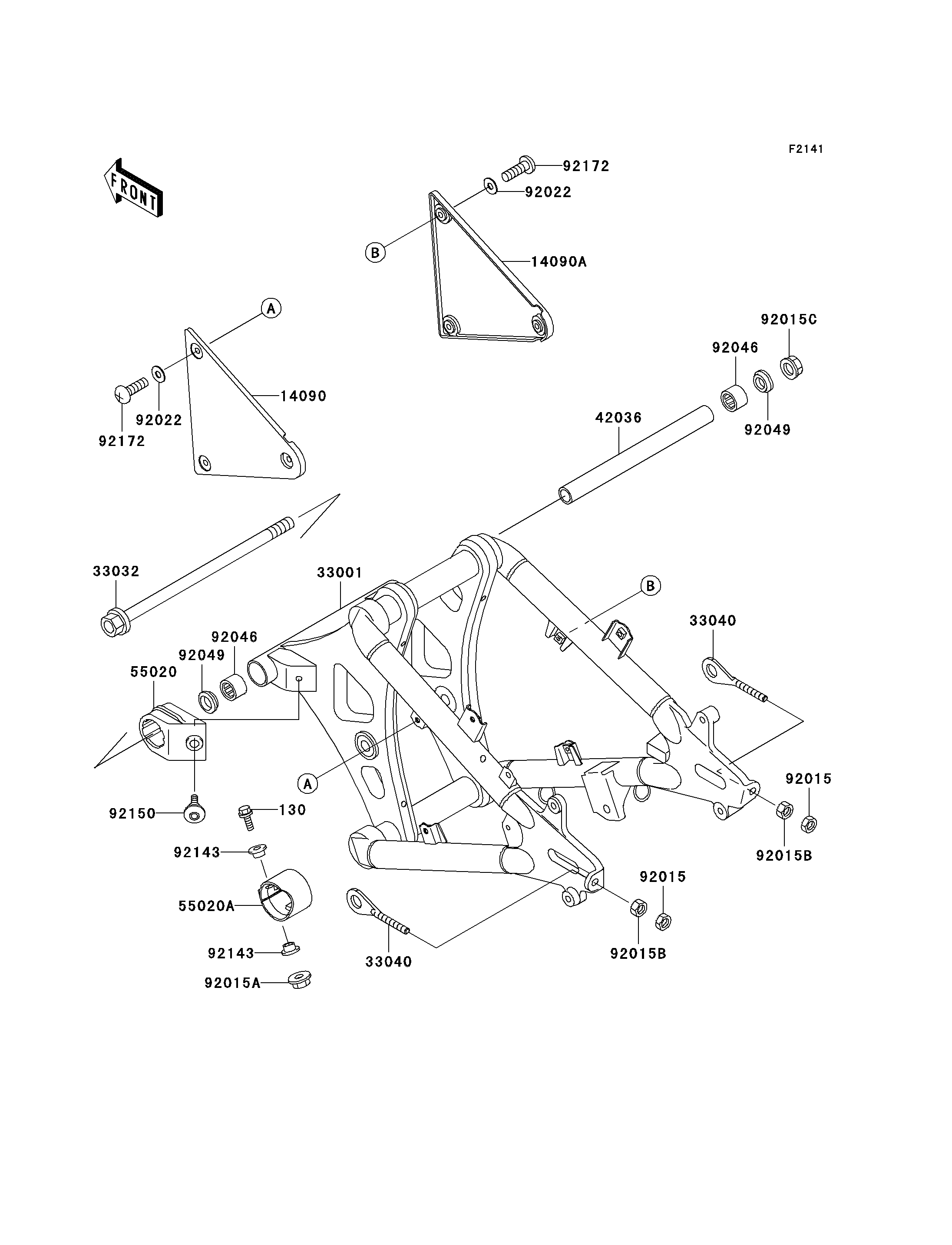

2006 Vulcan 800 Drifter - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
130
14090
14090A
33001
33032
33040
33040
42036
55020
55020A
92015
92015
92015A
92015B
92015B
92015C
92022
92022
92046
92046
92049
92049
92143
92143
92150
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130J0625 1
COVER,SWING ARM,LH,EBONY 14090 14090-1988-H8 1
COVER,SWING ARM,RH,EBONY 14090A 14090-1989-H8 1
ARM-COMP-SWING 33001 33001-1595 1
SHAFT-SWING ARM 33032 33032-1177 1
ADJUSTER-CHAIN 33040 33040-1146 2
SLEEVE,SWING ARM,L=243 42036 42036-1324 1
GUARD,CHAIN PIVOT 55020 55020-1530 1
GUARD,CHAIN CLOSS 55020A 55020-1531 1
NUT,8MM 92015 92015-1364 2
NUT,LOCK,FLANGED,6MM 92015A 92015-1603 1
NUT,8MM 92015B 92015-1658 2
NUT,FLANGED,16MM 92015C 92015-1946 1
WASHER,6.5X16X1 92022 92022-1143 6
BEARING-NEEDLE,TA2230Z 92046 92046-1174 2
SEAL-OIL,MHA22X29X5.7F 92049 92049-1289 2
COLLAR,L=6.6 92143 92143-1088 2
BOLT,SOCKET,6MM 92150 92150-1154 1
SCREW,6X14 92172 92172-0004 6
