Parts Diagrams |

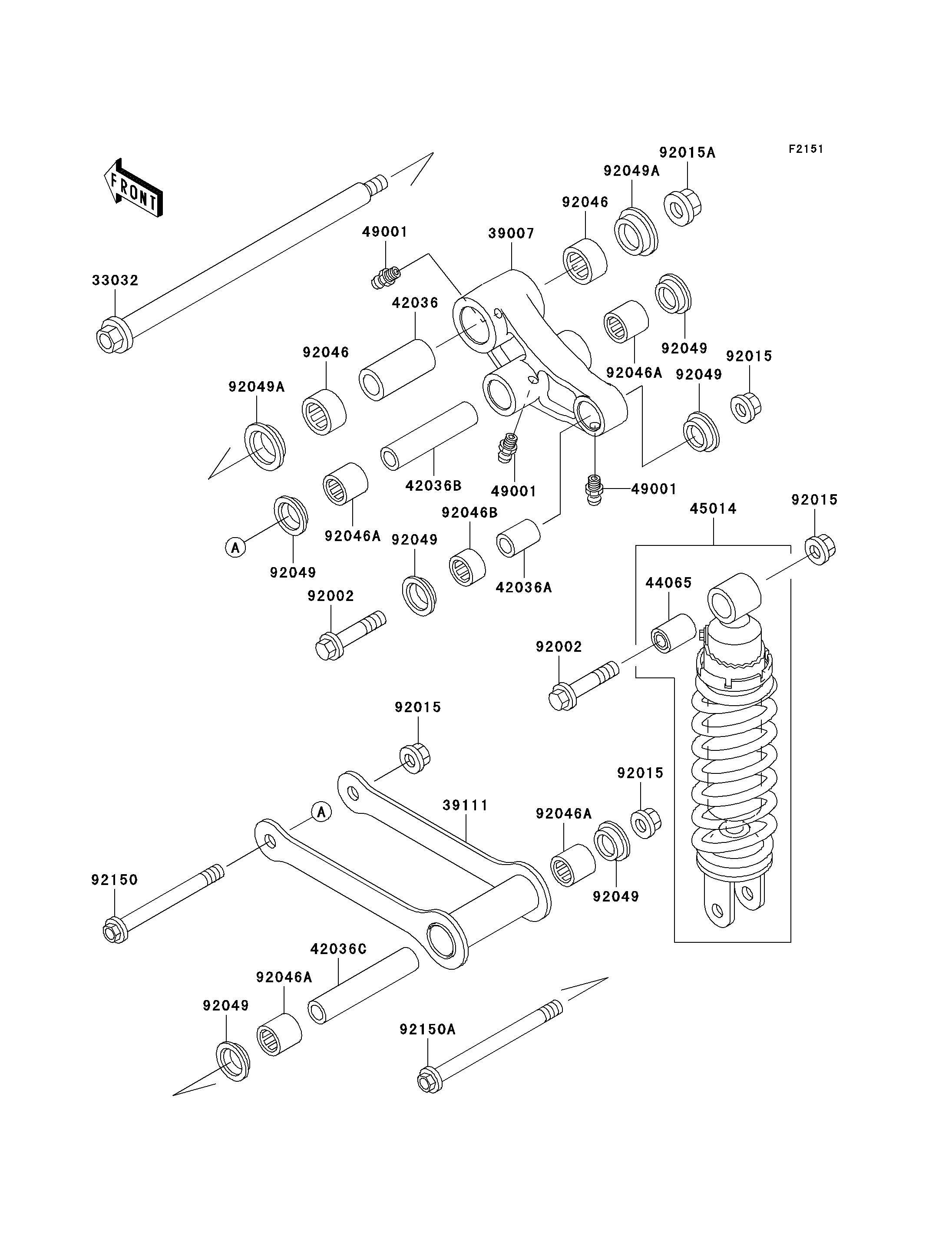

2006 Vulcan 800 Drifter - Suspension/Shock Absorber
33032
39007
39111
42036
42036A
42036B
42036C
44065
45014
49001
49001
49001
92002
92002
92015
92015
92015
92015
92015A
92046
92046
92046A
92046A
92046A
92046A
92046B
92049
92049
92049
92049
92049
92049
92049A
92049A
92150
92150A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-SWING ARM | 33032 | 33032-1176 | 1 | ||
| ARM-SUSP,UNI TRAK | 39007 | 39007-1280 | 1 | ||
| ROD-TIE,SUSPENSION | 39111 | 39111-1141 | 1 | ||
| SLEEVE,20X28X60 | 42036 | 42036-1207 | 1 | ||
| SLEEVE,12.1X20X30 | 42036A | 42036-1234 | 1 | ||
| SLEEVE,12.1X20X92 | 42036B | 42036-1322 | 1 | ||
| SLEEVE,12.1X20X108 | 42036C | 42036-1323 | 1 | ||
| BUSHING,SHOCKABSORBER | 44065 | 44065-1017 | 1 | ||
| SHOCKABSORBER | 45014 | 45014-1708 | 1 | ||
| NIPPLE-GREASE | 49001 | 49001-0001 | 3 | ||
| BOLT,12X55 | 92002 | 92002-1130 | 2 | ||
| NUT,FLANGED,12MM | 92015 | 92015-1433 | 4 | ||
| NUT,FLANGED,16MM | 92015A | 92015-1946 | 1 | ||
| BEARING-NEEDLE,7E-HVS 28X34X17 | 92046 | 92046-0008 | 2 | ||
| BEARING-NEEDLE,BM202726 | 92046A | 92046-1110 | 4 | ||
| BEARING-NEEDLE,BM202715 | 92046B | 92046-1112 | 1 | ||
| SEAL-OIL,ARM | 92049 | 92049-1109 | 6 | ||
| SEAL-OIL | 92049A | 92049-1181 | 2 | ||
| BOLT,FLANGED,12X117 | 92150 | 92150-1895 | 1 | ||
| BOLT,FLANGED,12X145 | 92150A | 92150-1896 | 1 |
