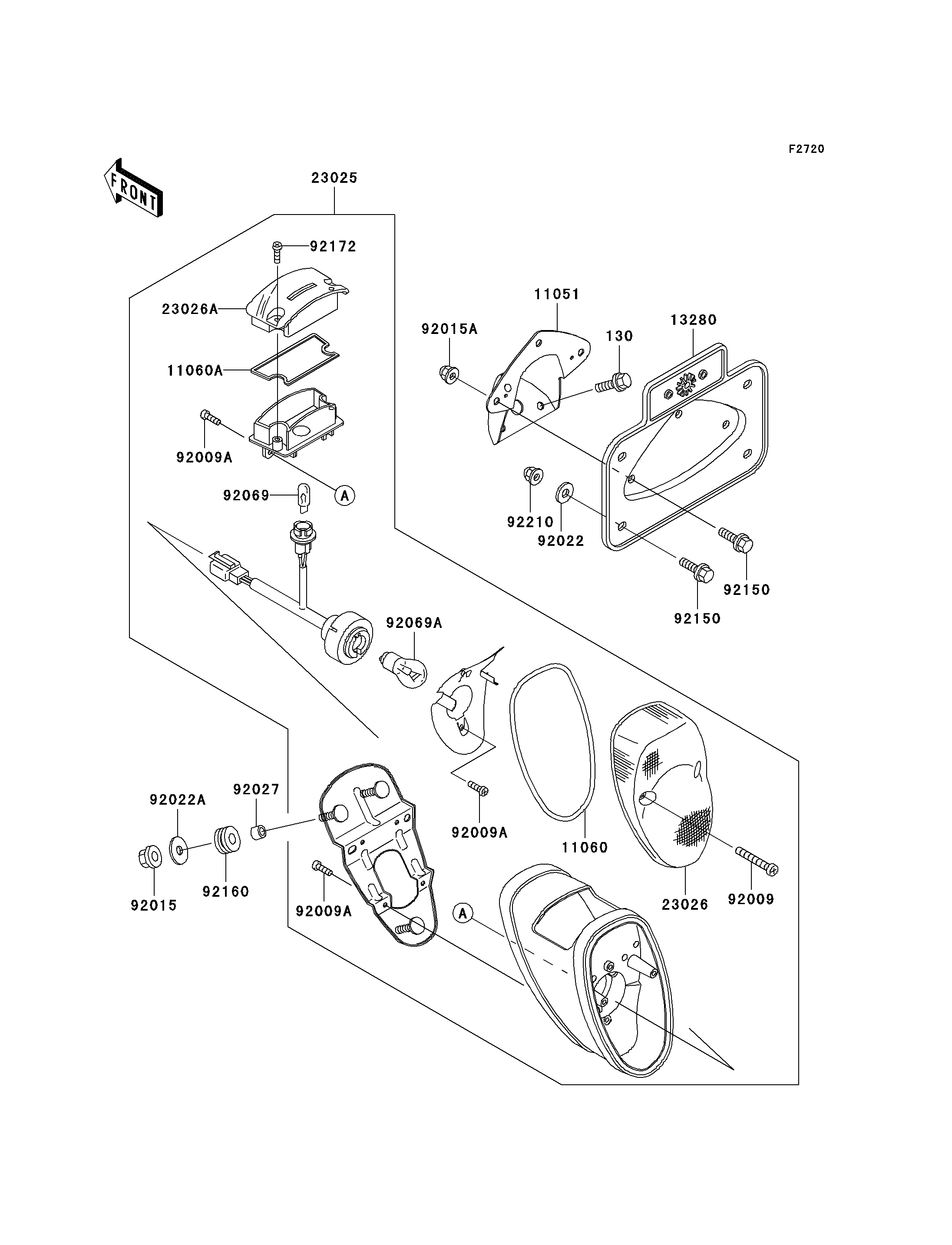

2006 Vulcan 800 Drifter - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
130
11051
11060
11060A
13280
23025
23026
23026A
92009
92009A
92009A
92009A
92015
92015A
92022
92022A
92027
92069
92069A
92150
92150
92160
92172
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130J0612 3
BRACKET,LICENSE HOLDER 11051 11051-1998 1
GASKET,TAIL LAMP 11060 11060-1884 1
GASKET,LICENSE LENS 11060A 11060-1939 1
HOLDER,LICENSE PLATE 13280 13280-1103 1
LAMP-TAIL 23025 23025-1309 1
LENS,TAIL 23026 23026-1220 1
LENS,LICENSE 23026A 23026-1224 1
SCREW,TAPPING,4X20 92009 92009-1378 2
SCREW,TAPPING,4X12 92009A 92009-1381 8
NUT,FLANGED,6MM 92015 92015-1367 3
NUT,CAP,6MM 92015A 92015-1385 3
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 4
WASHER,6.5X20X1.6 92022A 92022-1557 3
COLLAR,6.8X10X12 92027 92027-162 3
BULB,12V 5W 92069 92069-1016 1
BULB,12V 21/5W 92069A 92069-1084 1
BOLT,6X14 92150 92150-1133 7
DAMPER 92160 92160-1162 3
SCREW,TAPPING,4X12 92172 92172-0084 2
NUT,CAP,6MM 92210 92210-0003 4
