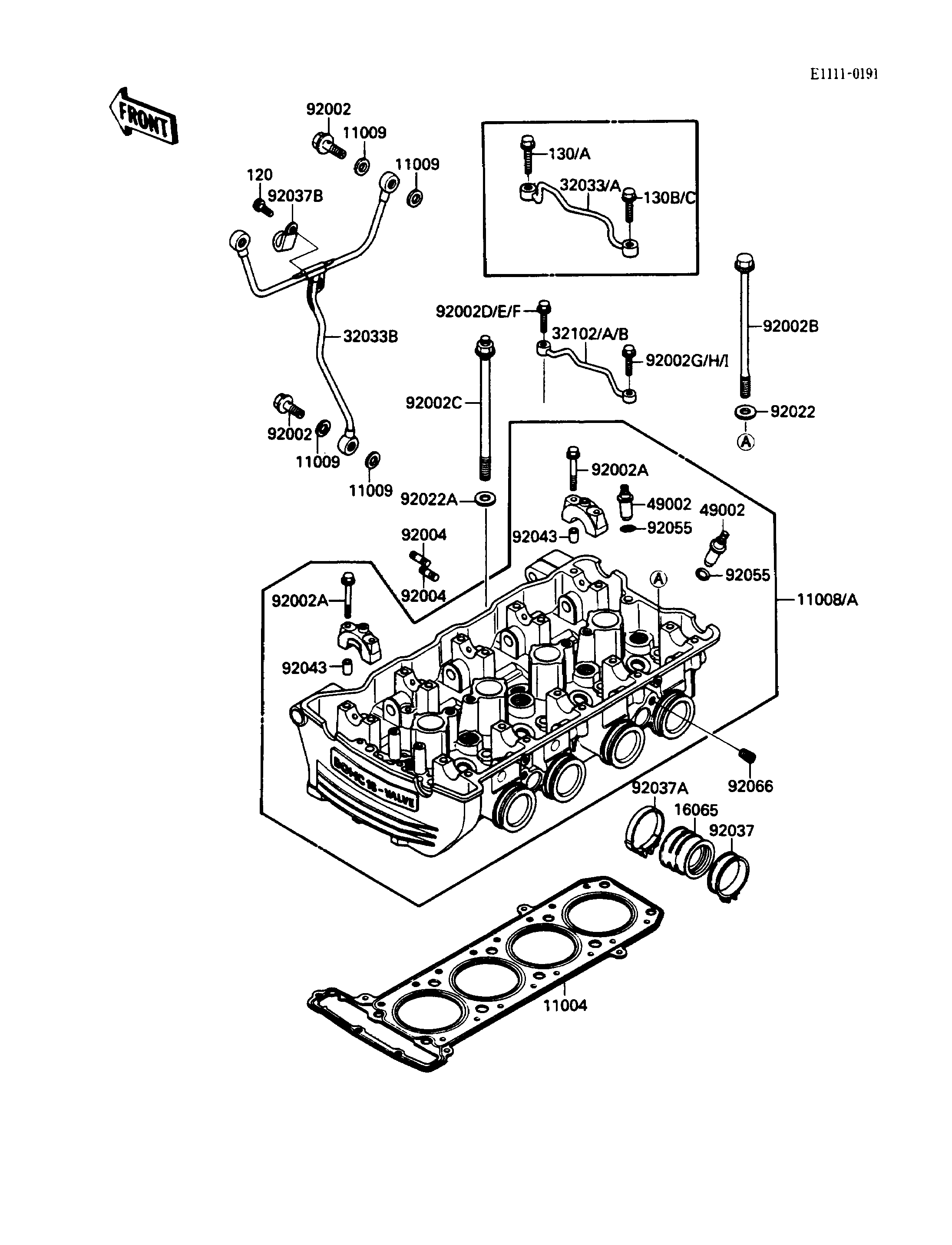

1986 Concours - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-1148 1
HEAD-COMP-CYLINDER 11008 11008-1177 1 CAUS
HEAD-COMP-CYLINDER 11008A 11008-1178 1 CN
GASKET,12.4X17X1.5 11009 11009-1376 6
HOLDER-CARBURETOR 16065 16065-1112 4
PIPE,CYLINDER HEAD 32033 32033-1183 2 CAUS ( - ZGT00AE009216)
PIPE,CYLINDER HEAD 32033A 32033-1183 2 CN
PIPE,OIL PAN-HEAD 32033B 32033-1850 1
PIPE,CYLINDER HEAD 32102A 32102-1423 2 CAUS ( ZGT00AE009217 - )
PIPE,CYLINDER HEAD 32102B 32102-1423 2 CN
GUIDE-VALVE 49002 49002-1052 16
BOLT,BANJO,12X23 92002 92001-1871 3
BOLT,6X50 92002A 92002-1872 20
BOLT,10X164 92002B 92001-1886 4
BOLT,11X164 92002C 92002-1486 6
BOLT,6X31.6 92002E 92002-1911 2 CAUS ( ZGT00AE009217 - )
BOLT,6X31.6 92002F 92002-1911 2 CN
BOLT,6X26.6 92002H 92002-1912 2 CAUS ( ZGT00AE009217 - )
BOLT,6X26.6 92002I 92002-1912 2 CN
STUD,8X28 92004 92004-1110 8
WASHER,10.5X20X1.6 92022 92022-1591 4
WASHER,11.5X20.5X1.6 92022A 92022-1720 6
CLAMP,ID=53,BLACK 92037 92037-1304 4
CLAMP 92037A 92037-1523 4
CLAMP,WIRING HARNESS 92037B 92037-1539 1 CN
PIN,DOWEL,6.3X8X14 92043 92042-007 20
RING-O,11.7MM 92055 92055-1265 16
PLUG 92066 92066-1201 2
BOLT-SOCKET 120 120S0610 1
BOLT-FLANGED,6X30 130 130G0630 2 CAUS ( - ZGT00AE009216)
BOLT-FLANGED,6X30 130A 130G0630 2 CN
BOLT-FLANGED,6X25 130B 130J0625 2 CAUS ( - ZGT00AE009216)
BOLT-FLANGED,6X25 130C 130J0625 2 CN
