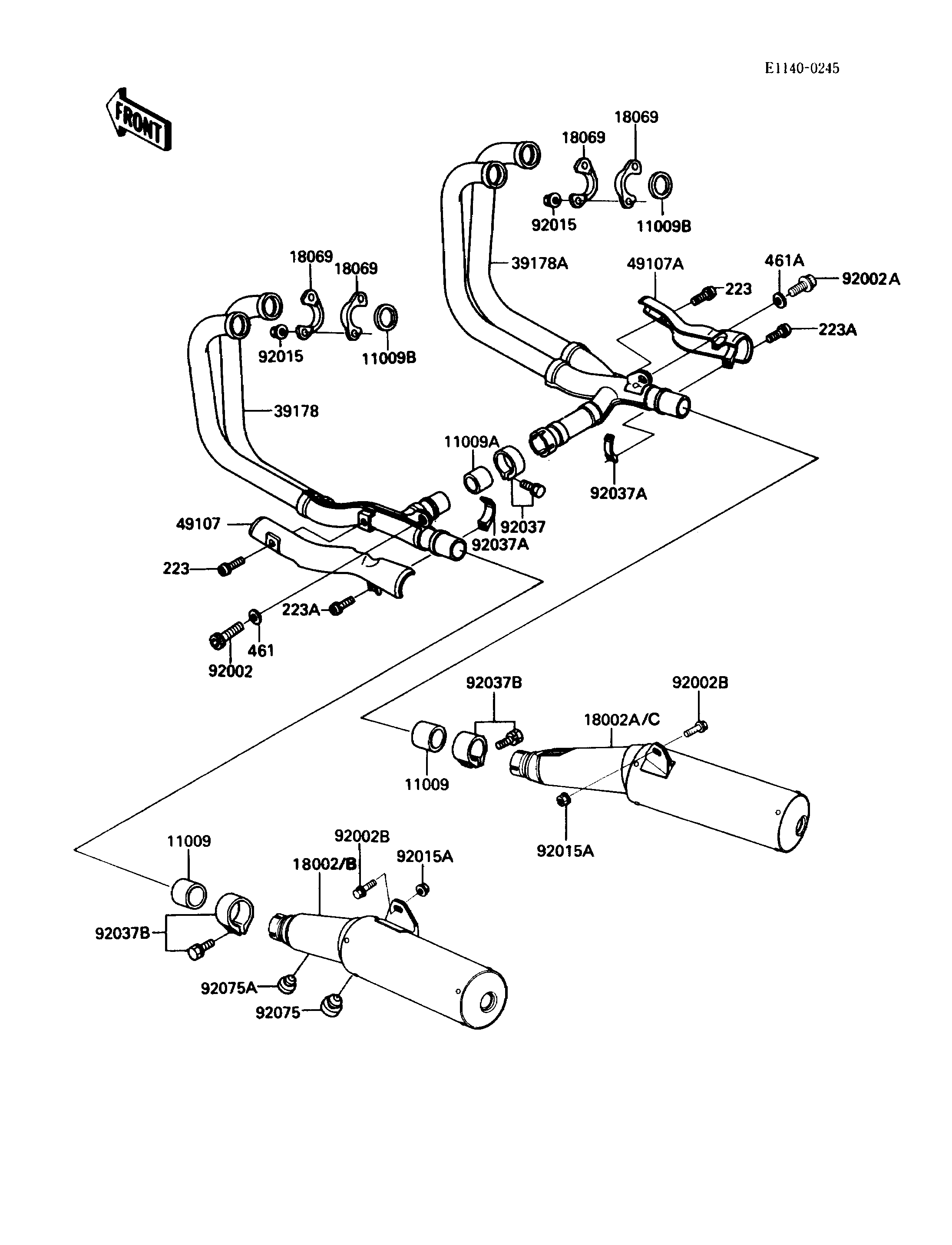

1986 Concours - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE CONNECTING 11009 11009-1480 2
GASKET,EXHAUST MANIFOLD 11009A 11009-1659 1
GASKET,EXHAUST PIPE HOLDER 11009B 18067-013 4
BODY-COMP-MUFFLER,LH 18002 18002-1649 1
BODY-COMP-MUFFLER,RH 18002A 18002-1650 1
HOLDER-EXHAUST PIPE 18069 18069-1054 8
MANIFOLD-COMP-EXHAUST,LH 39178 39178-1105 1
MANIFOLD-COMP-EXHAUST,RH 39178A 39178-1106 1
COVER-EXHAUST PIPE,LH 49107 49107-1053 1
COVER-EXHAUST PIPE,RH 49107A 49107-1058 1
BOLT,SOCKET,8X20 92002 92002-1477 1
BOLT,SOCKET,10X25 92002A 92002-1683 1
BOLT,10X30 92002B 92002-1817 2
NUT,LOCK,8MM 92015 92015-1380 8
NUT,FLANGED,10MM 92015A 92015-1428 2
CLAMP,MUFFLER,BLACK 92037 92037-1270 1
CLAMP,EXHAUST PIPE COVER 92037A 92037-1506 2
CLAMP,POWER CHAMBER 92037B 92037-1537 2
DAMPER,STAND,CNT 92075 92075-1002 1
DAMPER 92075A 92075-281 1
SCREW-PAN-WS-CROS 223 223C0612 2
SCREW-PAN-WS-CROS 223A 223C0620 2
WASHER-SPRING,8MM 461 461F0800 1
WASHER-SPRING,10MM,BLACK 461A 461K1000 1
