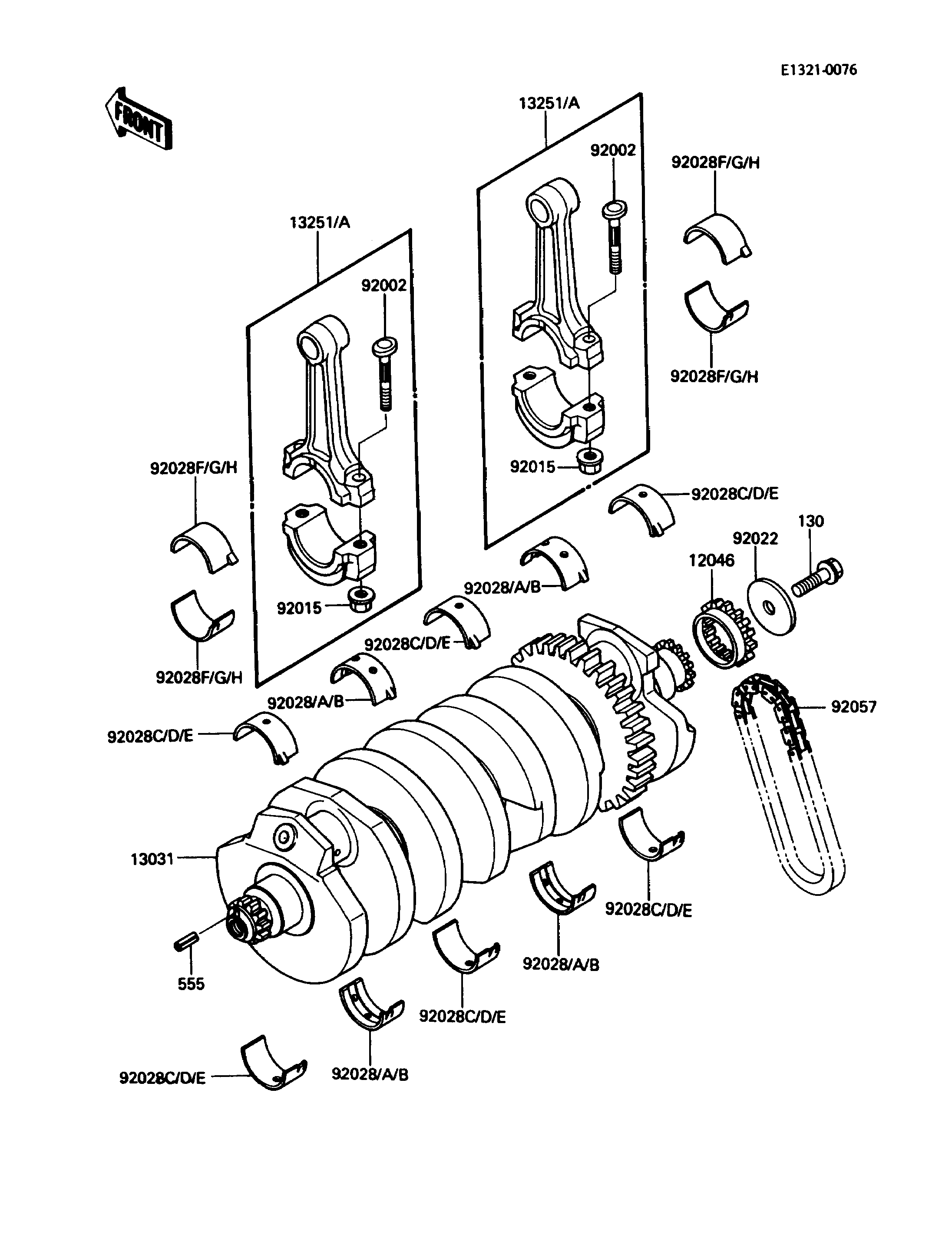

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,21T 12046 12046-1084 1
CRANKSHAFT-COMP 13031 13031-1201 1
ROD-ASSY-CONNECTING,K 13251 13251-1075-KK 4
ROD-ASSY-CONNECTING,L 13251A 13251-1075-LL 4
BOLT,CONNECTING ROD,9MM 92002 92002-1678 8
NUT,CONNECTING ROD 92015 92015-1559 8
WASHER,8.5X36X4 92022 92022-1633 1
BUSHING,CRANKSHAFT,BLUE 92028 92028-1100 AR
BUSHING,CRANKSHAFT,BLACK 92028A 92028-1101 AR
BUSHING,CRANKSHAFT,BROWN 92028B 92028-1102 AR
BUSHING,CRANKSHAFT,BLUE 92028C 92028-1272 AR
BUSHING,CRANKSHAFT,BLACK 92028D 92028-1273 AR
BUSHING,CRANKSHAFT,BROWN 92028E 92028-1274 AR
BUSHING,CONNECTING ROD BLUE 92028F 92028-1407 AR
BUSHING,CONNECTING ROD BLACK 92028G 92028-1408 AR
BUSHING,CONNECTING ROD BROWN 92028H 92028-1409 AR
CHAIN,GENERATOR 92057 92057-1209 1
BOLT-FLANGED,8X25 130 130G0825 1
PIN-SPRING 555 555A0410 1
