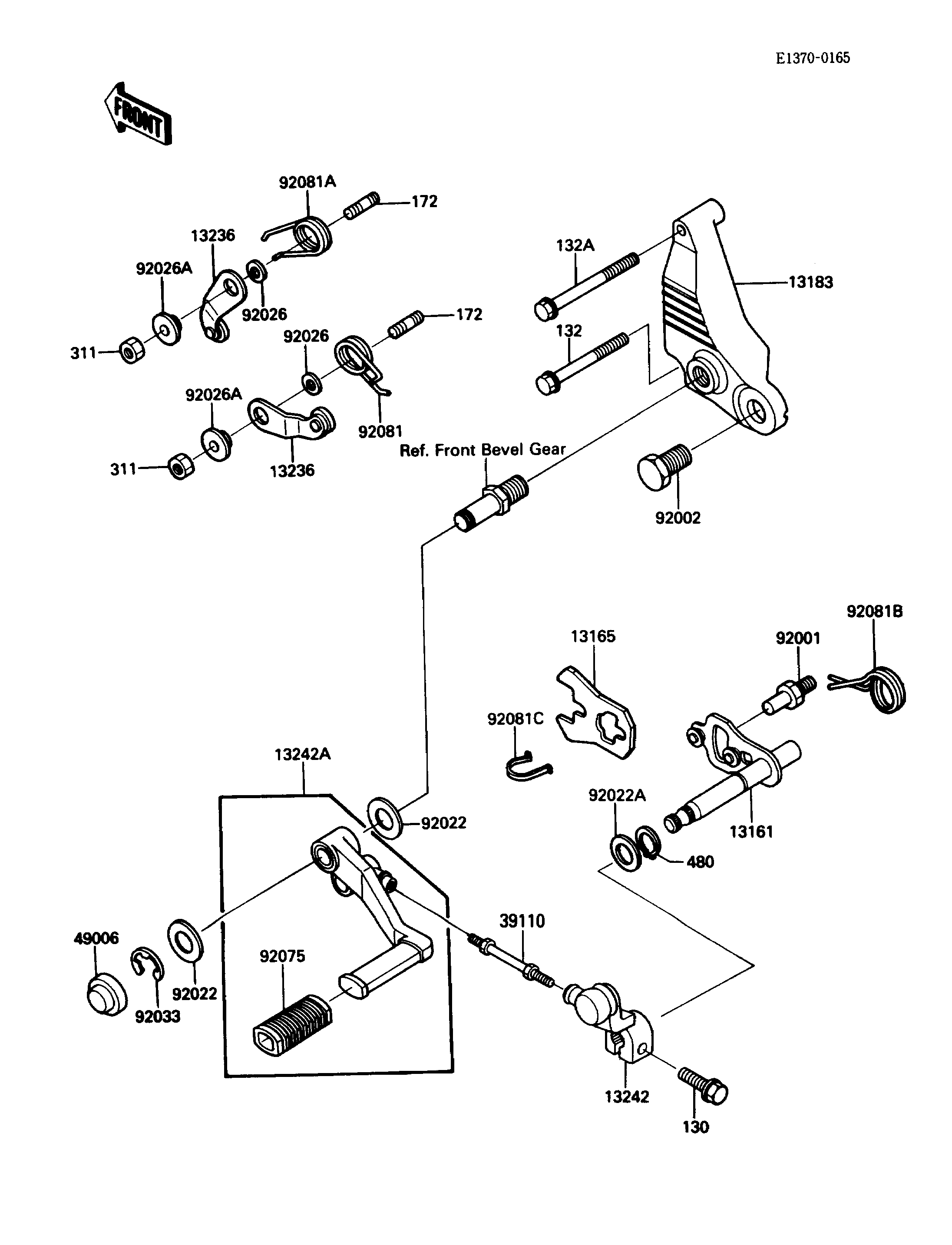

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LEVER-COMP-CHANGE SHAFT | 13161 | 13161-1123 | 1 | ||
PAWL | 13165 | 13165-1103 | 1 | ||
PLATE,CHANGE PEDAL | 13183 | 13169-1663 | 1 | ||
LEVER-COMP,GEAR POSITION | 13236 | 13236-1103 | 2 | ||
LEVER-ASSY-CHANGE | 13242 | 13242-1195 | 1 | ||
LEVER-ASSY-CHANGE,PEDAL | 13242A | 13242-1213 | 1 | ||
ROD-ASSY-TIE,CHANGE PEDAL | 39110 | 39110-1071 | 1 | ||
BOOT,CHANGE LEVER | 49006 | 49006-1061 | 1 | ||
BOLT,RETURN SPRING | 92001 | 92001-1455 | 1 | ||
BOLT | 92002 | 92002-1816 | 1 | ||
WASHER,12.5X22X1.2 | 92022 | 92022-1593 | 2 | ||
WASHER,13.3X18X1 | 92022A | 92022-1772 | 1 | ||
SPACER,6.3X12X1.0 | 92026 | 92026-094 | 2 | ||
SPACER | 92026A | 92026-1217 | 2 | ||
RING-SNAP,TYPE-E,10MM | 92033 | 92033-1178 | 1 | ||
DAMPER,CHANGE PEDAL | 92075 | 92075-1175 | 1 | ||
SPRING | 92081 | 92081-1645 | 1 | ||
SPRING | 92081A | 92081-1742 | 1 | ||
SPRING,CHANGE PEDAL RETURN | 92081B | 92081-1750 | 1 | ||
SPRING,CHANGE LEVER | 92081C | 92081-1829 | 1 | ||
BOLT-FLANGED,6X20,BLACK | 130 | 130S0620 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132W0660 | 1 | ||
BOLT-FLANGED-SMALL | 132A | 132W0670 | 1 | ||
BOLT-STUD,6X14 | 172 | 172G0614 | 2 | ||
NUT-HEX,6MM | 311 | 311G0600 | 2 | ||
CIRCLIP-TYPE-C,13MM | 480 | 480J1300 | 1 |
LEVER-COMP-CHANGE SHAFT | |
REF # | 13161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAWL | |
REF # | 13165 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,CHANGE PEDAL | |
REF # | 13183 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP,GEAR POSITION | |
REF # | 13236 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LEVER-ASSY-CHANGE | |
REF # | 13242 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-CHANGE,PEDAL | |
REF # | 13242A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-ASSY-TIE,CHANGE PEDAL | |
REF # | 39110 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,CHANGE LEVER | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,RETURN SPRING | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,12.5X22X1.2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,13.3X18X1 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER,6.3X12X1.0 | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPACER | |
REF # | 92026A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP,TYPE-E,10MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,CHANGE PEDAL | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,CHANGE PEDAL RETURN | |
REF # | 92081B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,CHANGE LEVER | |
REF # | 92081C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X20,BLACK | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-STUD,6X14 | |
REF # | 172 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-HEX,6MM | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-C,13MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
