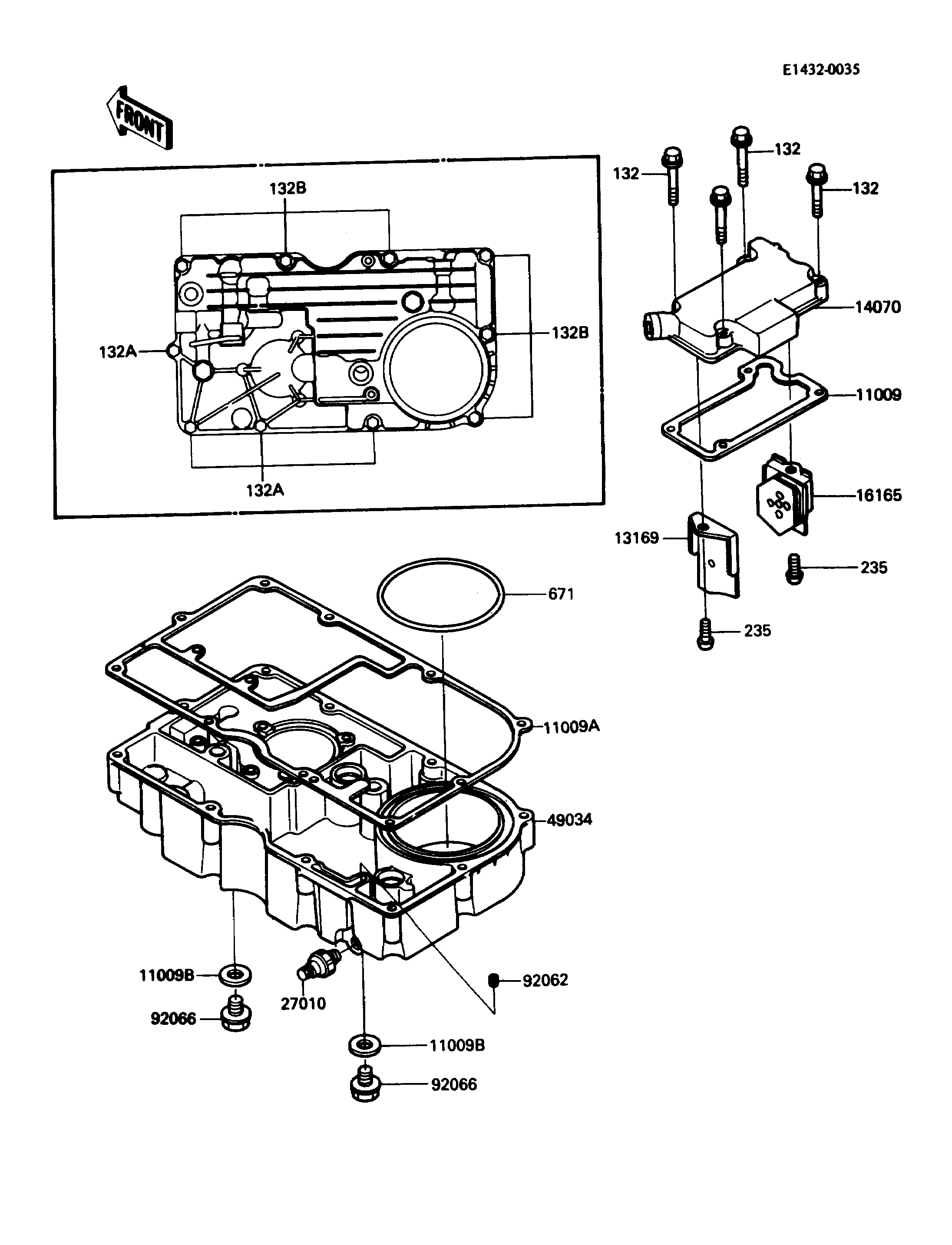

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,BREATHER BODY 11009 11009-1389 1
GASKET,OIL PAN 11009A 11009-1390 1
GASKET,12X22X2,DRAIN PLUG 11009B 92065-097 2
PLATE,BREATHER 13169 13169-1967 1
BODY-BREATHER 14070 14070-1061 1
SEPARATOR,OIL 16165 16165-1053 1
SWITCH,OIL PRESSURE 27010 27010-1155 1
PAN-OIL 49034 49034-1065 1
NOZZLE,YELLOW 92062 92062-1057 1
PLUG,OIL DRAIN,12X15 92066 92066-1174 2
BOLT-FLANGED-SMALL 132 132E0625 4
BOLT-FLANGED-SMALL 132A 132W0625 4
BOLT-FLANGED-SMALL 132B 132W0640 6
SCREW-PAN-WP-CROS 235 235B0610 2
O RING,90MM 671 671B2590 1
