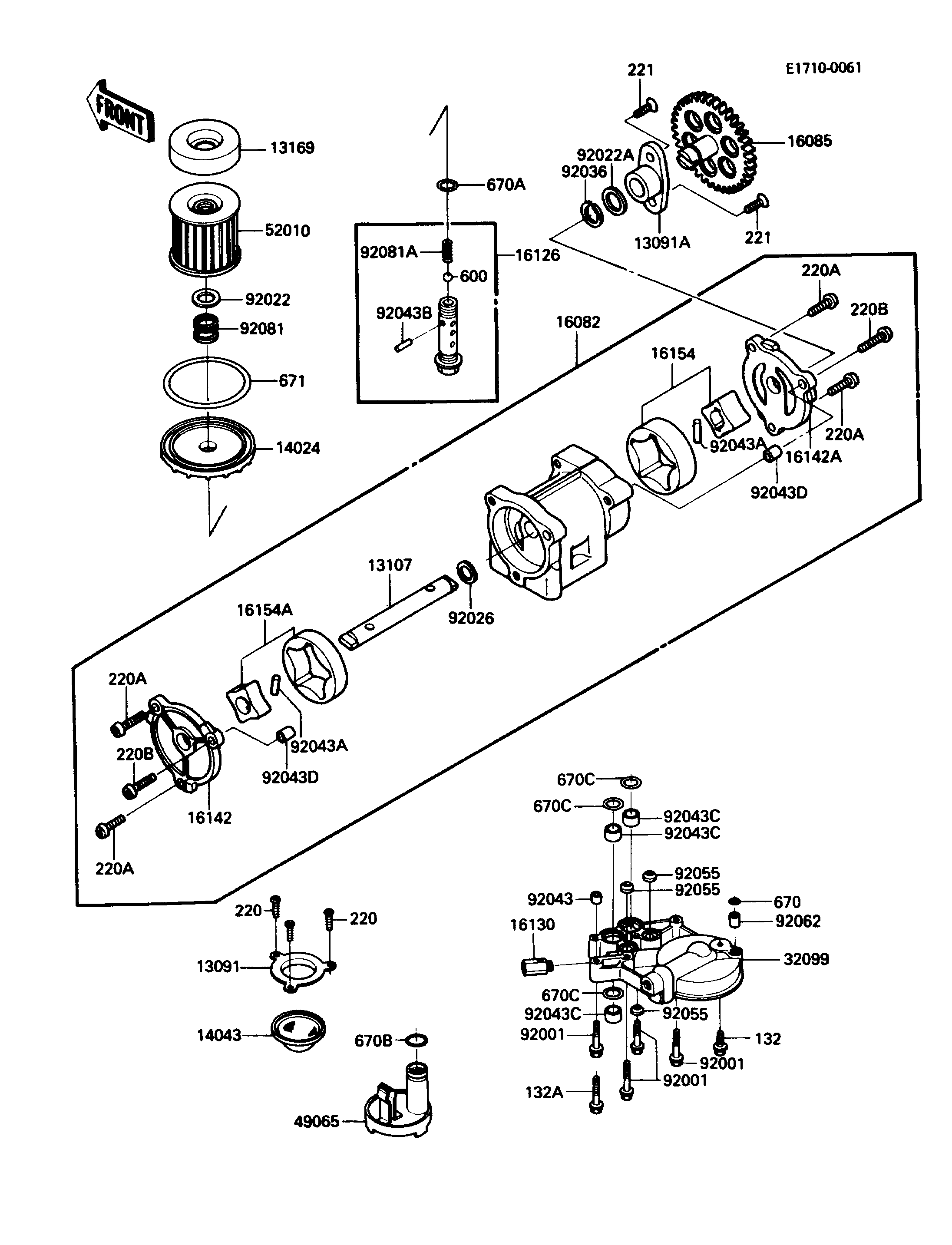

1986 Concours - Oil Pump/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,OIL FILTER 13091 13091-1274 1
HOLDER,PUMP GEAR 13091A 13091-1333 1
SHAFT,OIL PUMP 13107 13107-1105 1
PLATE,OIL FILTER 13169 13169-1313 1
COVER,OIL FILTER,F.BLACK 14024 14025-1422 1
FILTER,OIL 14043 16111-003 1
PUMP-ASSY-OIL 16082 16082-1060 1
GEAR,OIL PUMP,35T 16085 16085-1103 1
VALVE,OIL FILTER 16126 16126-1108 1
VALVE-ASSY-RELIEF 16130 16130-1001 1
COVER-PUMP,LH 16142 16142-1052 1
COVER-PUMP,RH 16142A 16142-1054 1
ROTOR-PUMP 16154 16154-1007 1
ROTOR-PUMP 16154A 16154-1053 1
CASE,OIL FILTER 32099 32099-1083 1
FILTER-OIL 49065 49065-1053 1
ELEMENT-OIL FILTER 52010 16099-003 1
BOLT,FLANGED,6X38 92001 92001-1105 4
WASHER,20.5X30X1 92022 92022-1012 1
WASHER,14X20X1 92022A 92022-1495 1
SPACER,OIL PUMP 92026 92026-1230 1
RING-SNAP,PUMP GEAR 92036 92036-1052 1
PIN,DOWEL,6.3X8X14 92043 92042-007 1
PIN,DOWEL,5X17.8 92043A 92043-1061 2
PIN,SPRING,2X20 92043B 92043-111 1
PIN,18X20X12 92043C 92043-1213 3
PIN,DOWEL,8X10 92043D 92043-1302 2
RING-O,19.5MM 92055 92055-077 3
NOZZLE 92062 92062-1055 1
SPRING,OIL FILTER 92081 92081-1018 1
SPRING 92081A 92081-109 1
BOLT-FLANGED-SMALL 132 132G0616 1
BOLT-FLANGED-SMALL 132A 132G0645 1
SCREW-PAN-CROS,6X12 220 220B0612 3
SCREW-PAN-CROS,6X14 220A 220B0614 4
SCREW-PAN-CROS,6X20,WHITE 220B 220B0620 2
SCREW-CSK-CROS,6X16 221 221B0616 2
BALL-STEEL,3/8" 600 600A1200 1
O RING,8MM 670 670B1508 1
O RING,16MM 670A 670B2016 1
O RING,18MM 670B 670B2018 1
O RING,20MM 670C 670D2020 3
O RING,90MM 671 671B2590 1
