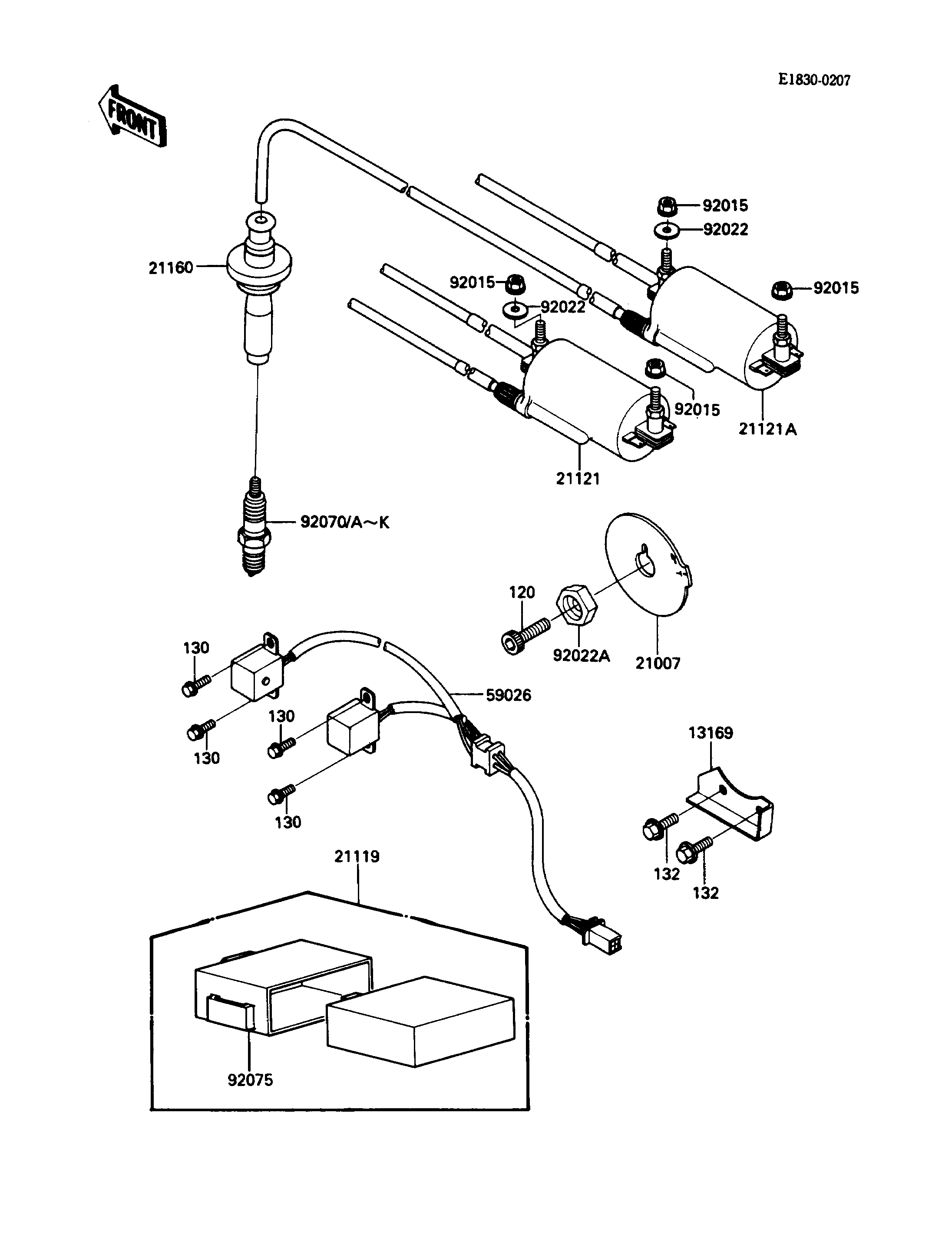

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,CHAIN GUIDE | 13169 | 13169-1748 | 1 | ||
| ROTOR,PULSING COIL | 21007 | 21007-1109 | 1 | ||
| IGNITER | 21119 | 21119-1110 | 1 | ||
| COIL-IGNITION,#1 | 21121 | 21121-1110 | 1 | ||
| COIL-IGNITION,#2 | 21121A | 21121-1111 | 1 | ||
| CAP-ASSY-PLUG | 21160 | 21160-1065 | 4 | ||
| COIL-PULSING | 59026 | 59026-1061 | 1 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1193 | 4 | ||
| WASHER,7X16X1.2 | 92022 | 92022-024 | 2 | ||
| WASHER,ROTOR | 92022A | 92022-1497 | 1 | ||
| PLUG-SPARK,X24ESR-U(ND) | 92070 | 4 | CN | ||
| PLUG-SPARK,D8EA(NGK) | 92070A | 92070-1011 | 4 | CAUS | |
| PLUG-SPARK,X22ES-U(ND) | 92070B | 4 | CAUS | ||
| PLUG-SPARK,D7EA(NGK) | 92070C | 92070-1013 | 4 | CAUS | |
| PLUG-SPARK,DR8ES(NGK) | 92070D | 92070-1019 | 4 | CN | |
| PLUG-SPARK,X24ES-U(ND) | 92070E | 4 | CAUS | ||
| PLUG-SPARK,D9EA(NGK) | 92070F | 92070-1034 | 4 | CAUS | |
| PLUG-SPARK,X27ES-U(ND) | 92070G | 4 | CAUS | (OPTION) | |
| PLUG-SPARK,X27ESR-U(ND) | 92070H | 4 | CN | ||
| PLUG-SPARK,DR7ES(NGK) | 92070I | 92070-1113 | 4 | CN | |
| PLUG-SPARK,DR8ES-L(NGK) | 92070J | 92070-1116 | 4 | CN | |
| PLUG-SPARK,X22ESR-U(ND) | 92070K | 92070-1117 | 4 | CN | |
| DAMPER,IGNITER | 92075 | 92075-1592 | 1 | ||
| WASHER,ROTOR | 120 | 120P0825 | 1 | ||
| BOLT-FLANGED | 130 | 130G0512 | 4 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0612 | 2 |
| PLATE,CHAIN GUIDE | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR,PULSING COIL | |
| REF # | 21007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| IGNITER | |
| REF # | 21119 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL-IGNITION,#1 | |
| REF # | 21121 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL-IGNITION,#2 | |
| REF # | 21121A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PLUG | |
| REF # | 21160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COIL-PULSING | |
| REF # | 59026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,7X16X1.2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,ROTOR | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG-SPARK,X24ESR-U(ND) | |
| REF # | 92070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CN |
| REMARKS | |
| PLUG-SPARK,D8EA(NGK) | |
| REF # | 92070A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CAUS |
| REMARKS | |
| PLUG-SPARK,X22ES-U(ND) | |
| REF # | 92070B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CAUS |
| REMARKS | |
| PLUG-SPARK,D7EA(NGK) | |
| REF # | 92070C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CAUS |
| REMARKS | |
| PLUG-SPARK,DR8ES(NGK) | |
| REF # | 92070D |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CN |
| REMARKS | |
| PLUG-SPARK,X24ES-U(ND) | |
| REF # | 92070E |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CAUS |
| REMARKS | |
| PLUG-SPARK,D9EA(NGK) | |
| REF # | 92070F |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CAUS |
| REMARKS | |
| PLUG-SPARK,X27ES-U(ND) | |
| REF # | 92070G |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CAUS |
| REMARKS | (OPTION) |
| PLUG-SPARK,X27ESR-U(ND) | |
| REF # | 92070H |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CN |
| REMARKS | |
| PLUG-SPARK,DR7ES(NGK) | |
| REF # | 92070I |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CN |
| REMARKS | |
| PLUG-SPARK,DR8ES-L(NGK) | |
| REF # | 92070J |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CN |
| REMARKS | |
| PLUG-SPARK,X22ESR-U(ND) | |
| REF # | 92070K |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CN |
| REMARKS | |
| DAMPER,IGNITER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,ROTOR | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
