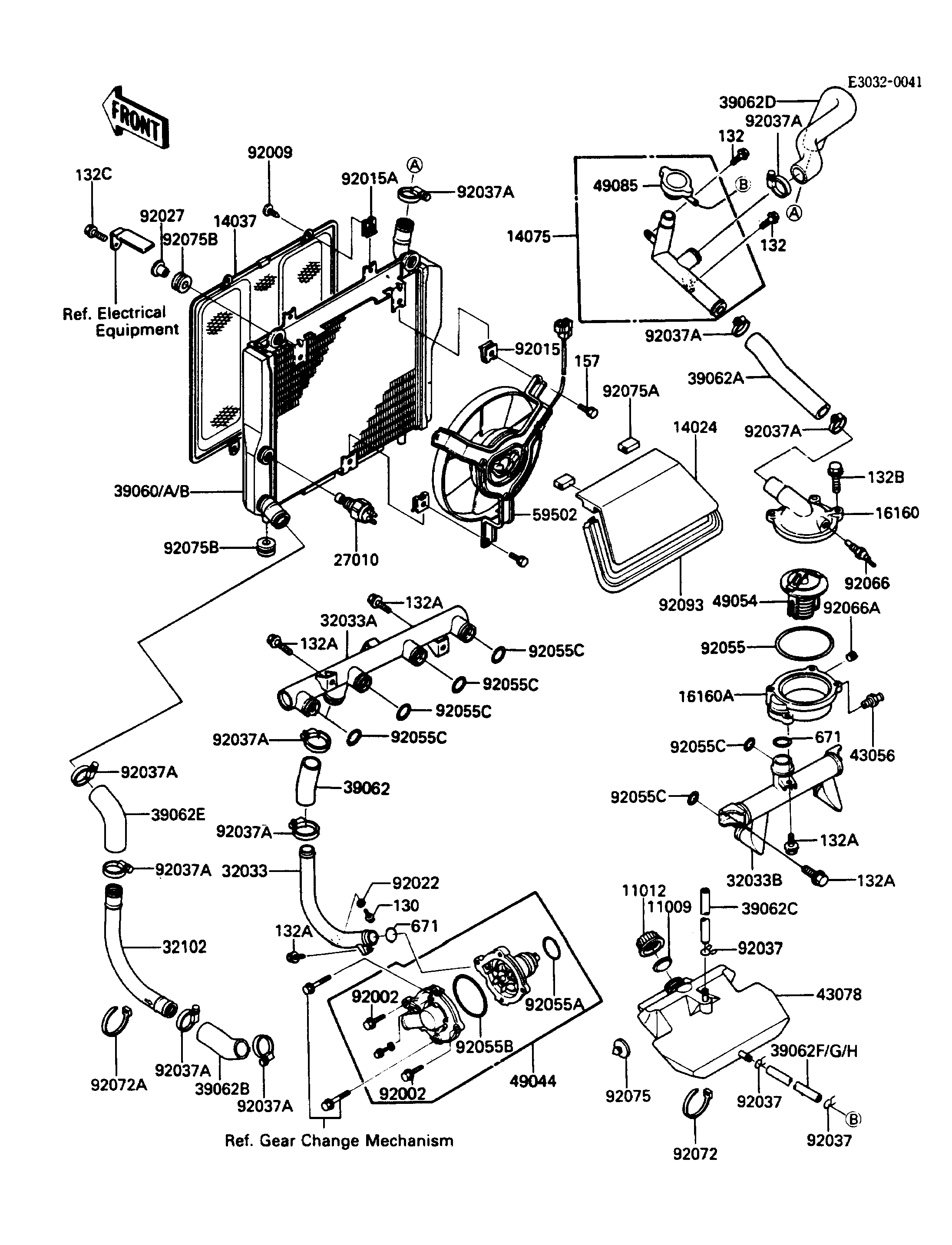

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11012 | 11012-1084 | 1 | ||
| COVER | 14024 | 14024-1267 | 1 | ||
| SCREEN,RADIATOR | 14037 | 14037-1070 | 1 | ||
| CAP-ASSY,RADIATOR | 14075 | 14075-1055 | 1 | ||
| BODY,THERMOSTAT,UPP | 16160 | 16160-1067 | 1 | ||
| BODY,THERMOSTAT,LWR | 16160A | 16160-1068 | 1 | ||
| SWITCH,FAN | 27010 | 27010-1202 | 1 | ||
| PIPE | 32033 | 32033-1206 | 1 | ||
| PIPE | 32033A | 32033-1262 | 1 | ||
| PIPE | 32033B | 32033-1719 | 1 | ||
| PIPE | 32102 | 32102-1023 | 1 | ||
| RADIATOR | 39060 | 39060-1068 | 1 | ( - JKAZGCA1 GA003839) | |
| RADIATOR | 39060B | 39060-1076 | 1 | (JKAZGCA1 GA003840 - ) | |
| HOSE-COOLING | 39062 | 39062-1072 | 1 | ||
| HOSE-COOLING | 39062A | 39062-1091 | 1 | ||
| HOSE-COOLING | 39062B | 39062-1092 | 1 | ||
| HOSE-COOLING,5.5X10.5X1500 | 39062C | 39062-1144 | 1 | ||
| HOSE-COOLING | 39062D | 39062-1164 | 1 | ||
| HOSE-COOLING | 39062E | 39062-1165 | 1 | ||
| HOSE-COOLING | 39062F | 39062-1196 | 1 | ( - JKAZGCA1 GA003839) | |
| HOSE-COOLING | 39062H | 39062-1226 | 1 | (JKAZGCA1 GA003840 - ) | |
| BREATHER | 43056 | 43056-003 | 1 | ||
| RESERVOIR | 43078 | 43078-1074 | 1 | ||
| PUMP-WATER | 49044 | 49044-1058 | 1 | ||
| THERMOSTAT | 49054 | 49054-1051 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1053 | 1 | ||
| FAN-ASSY | 59502 | 59502-1067 | 1 | ||
| BOLT,6X22 | 92002 | 92002-1392 | 2 | ||
| SCREW,TAPPING,6MM | 92009 | 92009-1261 | 4 | ||
| NUT | 92015 | 92015-1487 | 3 | ||
| NUT | 92015A | 92015-1582 | 4 | ||
| WASHER,6.2X11X1 | 92022 | 92022-304 | 1 | ||
| COLLAR,L=14 | 92027 | 92027-1134 | 2 | ||
| CLAMP,TUBE | 92037 | 92037-147 | 3 | ||
| CLAMP,COOLING HOSE | 92037A | 92037-1669 | 10 | ||
| RING-O,53.5X2.6 | 92055 | 92055-112 | 1 | ||
| RING-O,33.8MM | 92055A | 92055-1266 | 1 | ||
| RING-O,WATER PUMP | 92055B | 92055-1271 | 1 | ||
| RING-O | 92055C | 92055-1282 | 6 | ||
| PLUG,SENSOR WATER | 92066 | 92066-1183 | 1 | ||
| PLUG | 92066A | 92066-1201 | 1 | ||
| BAND,L=185 | 92072 | 92072-1195 | 1 | ||
| BAND,L=365 | 92072A | 92072-1197 | 1 | ||
| DAMPER,RUBBER | 92075 | 92075-078 | 8 | ||
| DAMPER | 92075A | 92075-1446 | 2 | ||
| DAMPER | 92075B | 92075-1569 | 4 | ||
| SEAL | 92093 | 92093-1214 | 1 | ||
| BOLT-FLANGED | 130 | 130J0610 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132W0608 | 2 | ||
| BOLT-FLANGED-SMALL | 132A | 132W0612 | 6 | ||
| BOLT-FLANGED-SMALL | 132B | 132W0620 | 3 | ||
| BOLT-FLANGED-SMALL | 132C | 132W0825 | 2 | ||
| BOLT-WSP | 157 | 157J0616 | 3 | ||
| O RING,25MM | 671 | 671B2525 | 2 |
