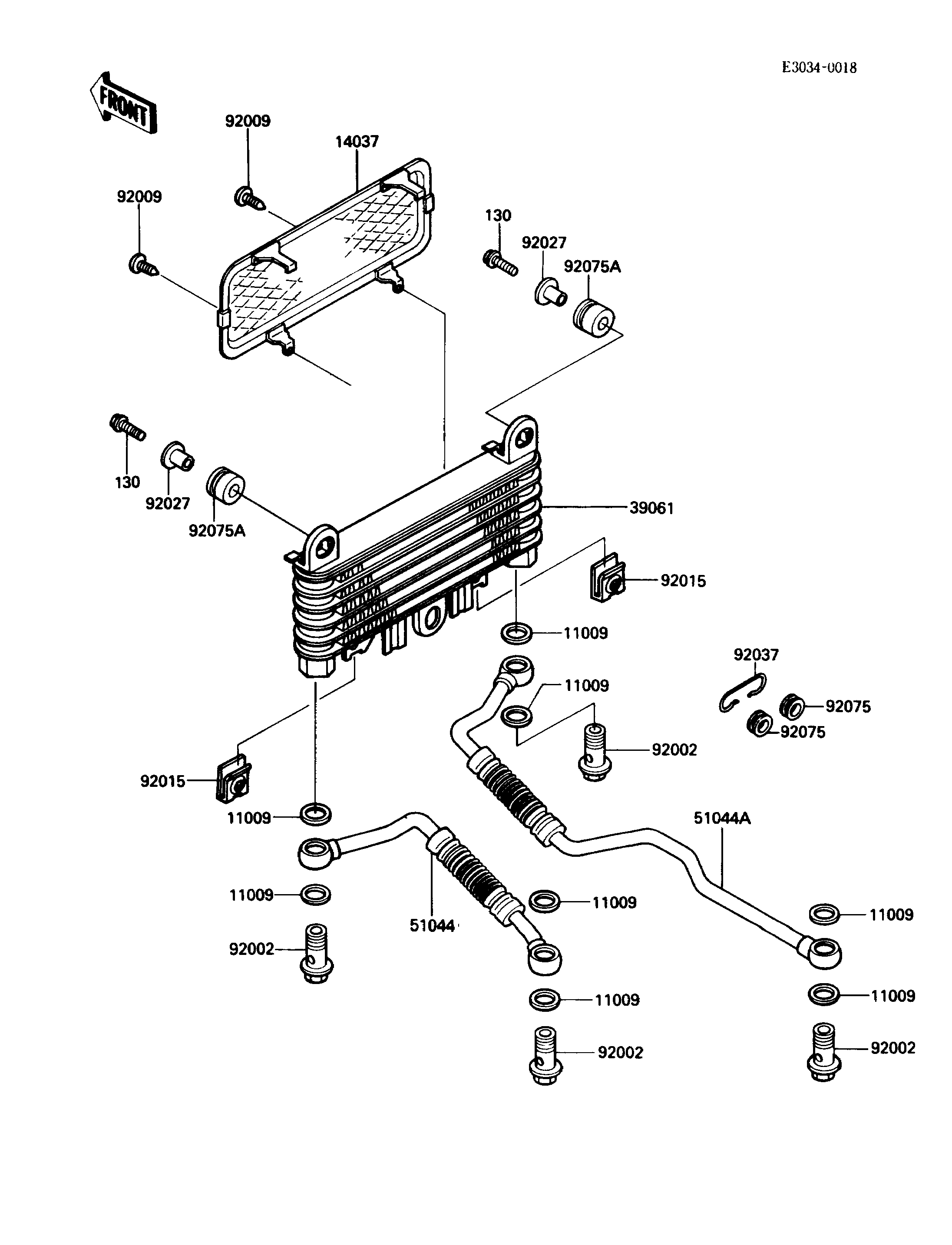

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,14X19.5X1.4 11009 11009-1461 8
SCREEN,OIL COOLER 14037 14037-1073 1
OIL COOLER 39061 39061-1117 1
TUBE-ASSY,OIL COOLER,LH 51044 51044-1068 1
TUBE-ASSY,OIL COOLER,RH 51044A 51044-1086 1
BOLT,14X28.5 92002 92001-1930 4
SCREW,TAPPING,6MM 92009 92009-1261 2
NUT 92015 92015-1582 2
COLLAR,FLANGED,L=12.1,BLACK 92027 92027-1651 3
CLAMP,OIL COOLER 92037 92037-1905 1
DAMPER,OIL COOLER 92075 92075-1942 2
DAMPER 92075A 92075-277 3
BOLT-FLANGED 130 130J0620 3
