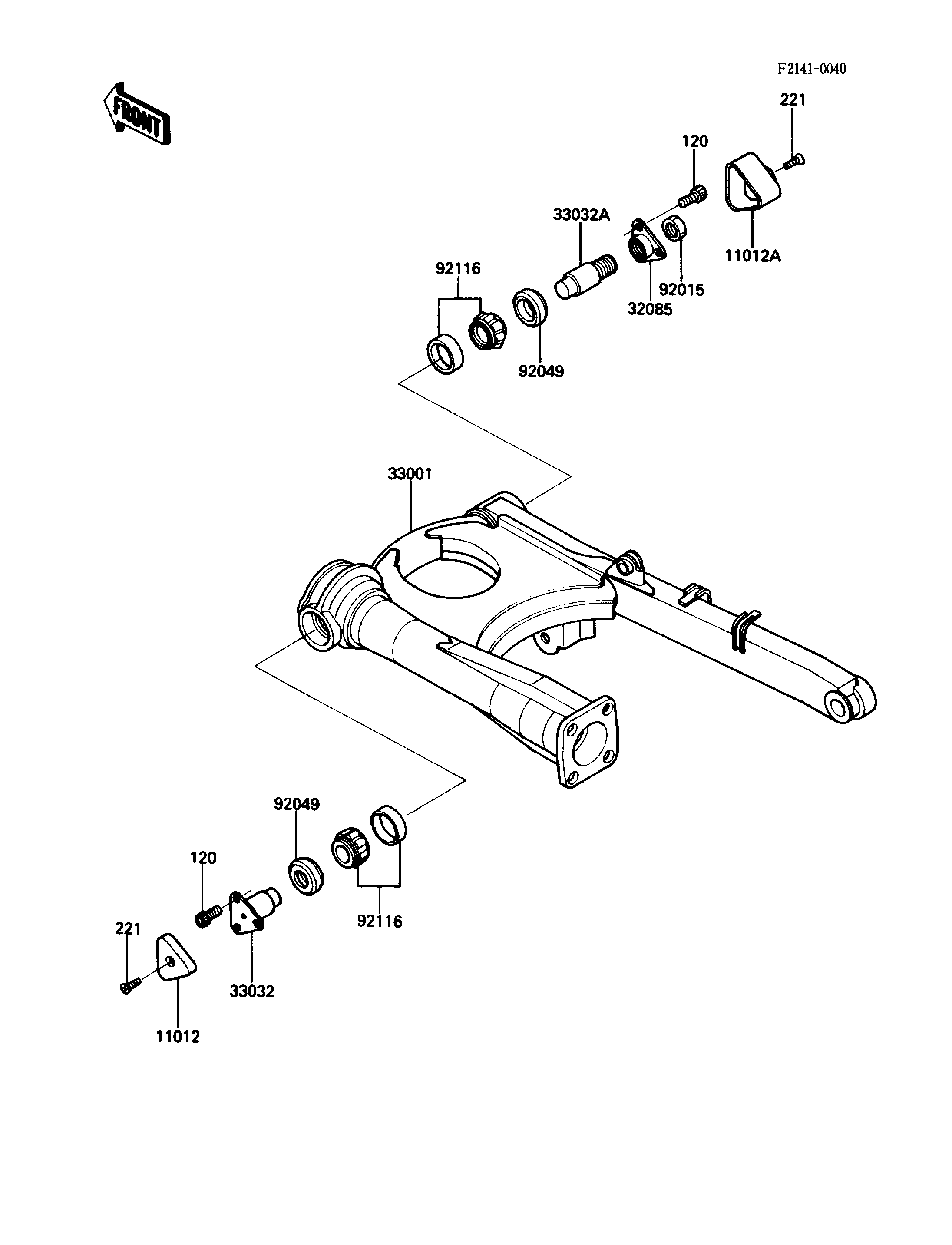

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM,LH 11012 11012-1512 1
CAP,SWING ARM,RH 11012A 11012-1518 1
STOPPER,SWING ARM SHAFT,RH 32085 32085-1234 1
ARM-COMP-SWING 33001 33001-1267 1
SHAFT-SWING ARM,LH 33032 33032-1122 1
SHAFT-SWING ARM,RH 33032A 33032-1123 1
NUT,20MM 92015 92015-1589 1
SEAL-OIL,26X42X6 92049 92049-1256 2
BEARING-ROLLER,H1-CAP 32004JR 92116 92116-1061 2
BOLT-SOCKET,8X20 120 120P0820 6
SCREW-CSK-CROS 221 221C0620 2
