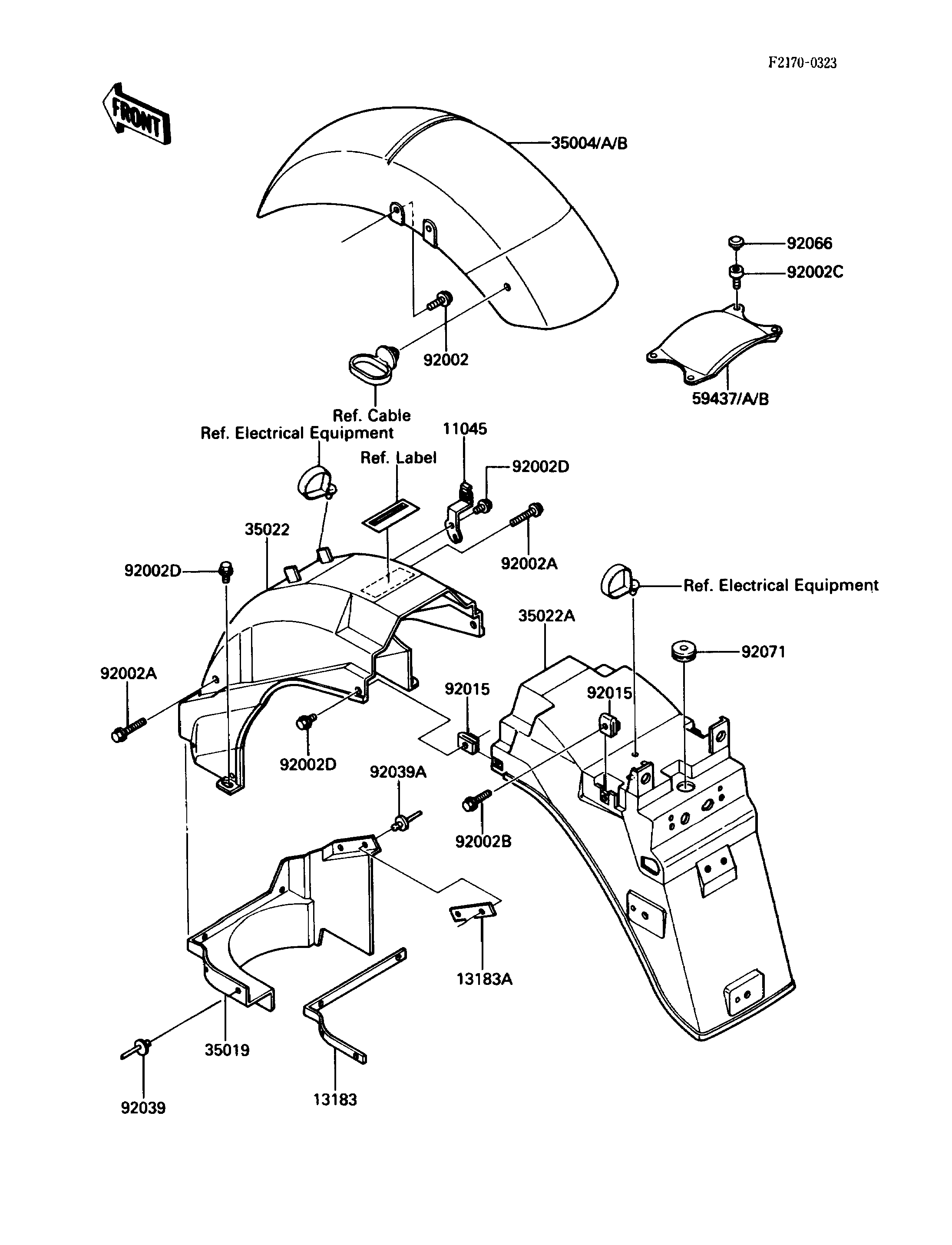

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,RR BRAKE RESERVOIR | 11045 | 11044-1782 | 1 | ||
PLATE,REAR FENDER FLAP,LH | 13183 | 13183-1021 | 1 | ||
PLATE,REAR FENDER FLAP,RH | 13183A | 13183-1022 | 1 | ||
FENDER-FRONT,P.G.GRAY/F.BLACK | 35004A | 35004-1191-T9 | 1 | ||
FENDER-FRONT,F.BLACK/C.W.RED | 35004B | 35004-1191-V6 | 1 | CN | |
FLAP,REAR FENDER,FR | 35019 | 35019-1183 | 1 | ||
FENDER-COMP-REAR,FR | 35022 | 35022-1223 | 1 | ||
FENDER-COMP-REAR,RR,BLACK | 35022A | 35022-1224-6Z | 1 | ||
STABILIZER,C.W.RED | 59437A | 59437-1056-H3 | 1 | CN | |
STABILIZER,P.G.GRAY | 59437B | 59437-1056-T8 | 1 | ||
BOLT,6X16 | 92002 | 92002-1219 | 4 | ||
BOLT,6X55 | 92002A | 92002-1707 | 2 | ||
BOLT,6X40 | 92002B | 92002-1711 | 2 | ||
BOLT,SOCKET,8X18 | 92002C | 92002-1835 | 4 | ||
BOLT,6X16 | 92002D | 92002-1852 | 5 | ||
NUT,6MM | 92015 | 92015-1602 | 4 | ||
RIVET | 92039 | 92039-1106 | 1 | ||
RIVET | 92039A | 92039-1147 | 5 | ||
PLUG | 92066 | 92066-1216 | 4 | ||
GROMMET,SENSOR LEAD | 92071 | 92071-1058 | 1 |
BRACKET,RR BRAKE RESERVOIR | |
REF # | 11045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,REAR FENDER FLAP,LH | |
REF # | 13183 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,REAR FENDER FLAP,RH | |
REF # | 13183A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FENDER-FRONT,P.G.GRAY/F.BLACK | |
REF # | 35004A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FENDER-FRONT,F.BLACK/C.W.RED | |
REF # | 35004B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
FLAP,REAR FENDER,FR | |
REF # | 35019 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FENDER-COMP-REAR,FR | |
REF # | 35022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FENDER-COMP-REAR,RR,BLACK | |
REF # | 35022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STABILIZER,C.W.RED | |
REF # | 59437A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
STABILIZER,P.G.GRAY | |
REF # | 59437B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X16 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,6X55 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X40 | |
REF # | 92002B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X18 | |
REF # | 92002C |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,6X16 | |
REF # | 92002D |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RIVET | |
REF # | 92039 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIVET | |
REF # | 92039A |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GROMMET,SENSOR LEAD | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
