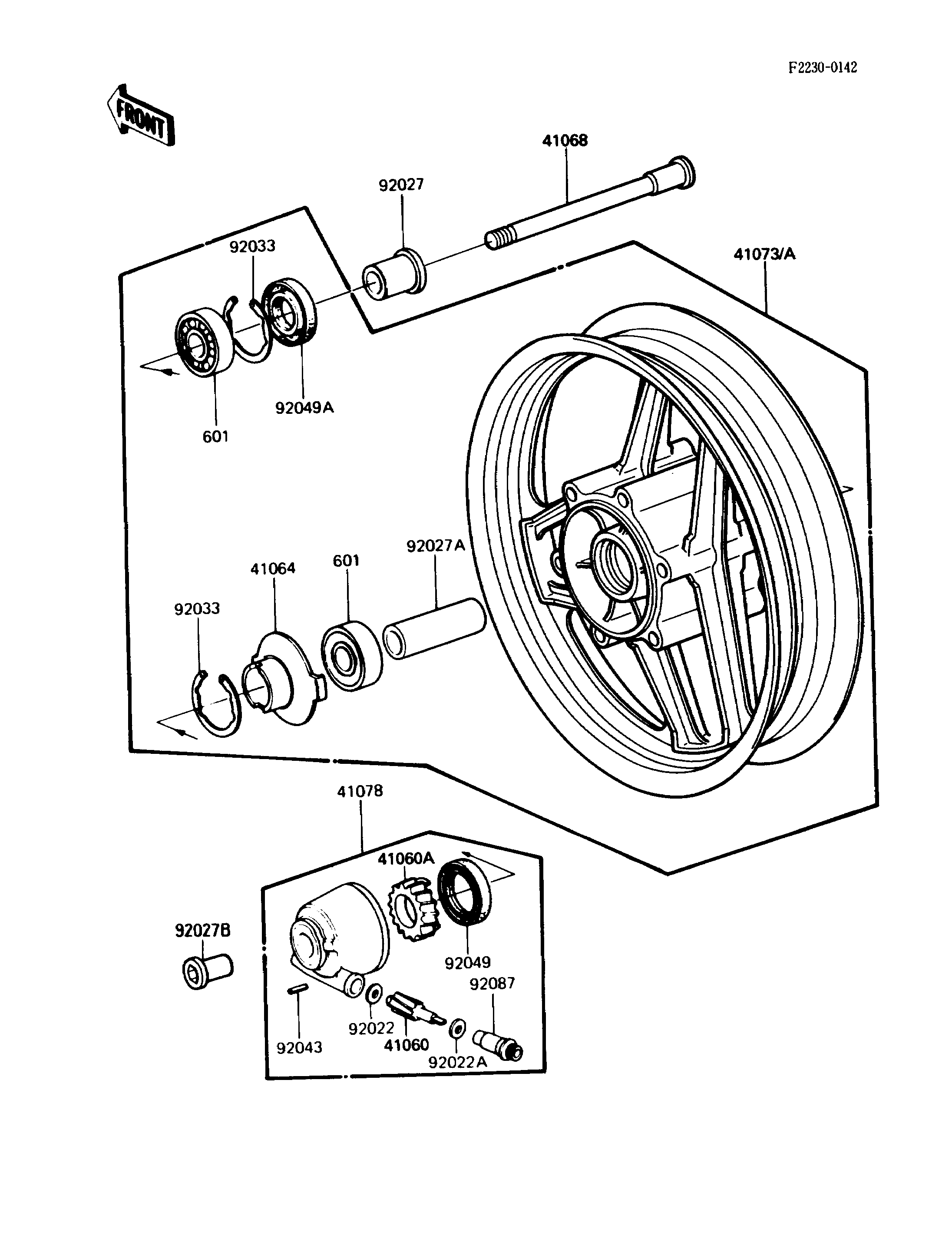

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GEAR-METER SCREW,9T 41060 41060-1016 1
GEAR-METER SCREW,25T 41060A 41060-1041 1
RECEIVER-SPEEDOMETER 41064 41064-1006 1
AXLE,FR 41068 41068-1164 1
WHEEL-ASSY,FR,SILVER NO.1 41073A 41073-1334-V5 1
CASE-ASSY-METER GEAR 41078 41078-1061 1
WASHER,5.1X9X0.4 92022 41063-001 1
WASHER,5.1X10X1 92022A 92022-1062 1
COLLAR,L=30 92027 92027-1225 1
COLLAR,L=71 92027A 92027-1725 1
COLLAR,FR AXLE,L=36.5 92027B 92027-1726 1
RING-SNAP,42MM 92033 92033-1041 2
PIN,SPRING 92043 41082-001 1
SEAL-OIL,BJN30427-C3 92049 92049-1057 1
SEAL-OIL,BJN22425 92049A 92049-1058 1
BUSHING-METER GEAR 92087 92087-1002 1
BEARING-BALL 601 601B6302U 2
