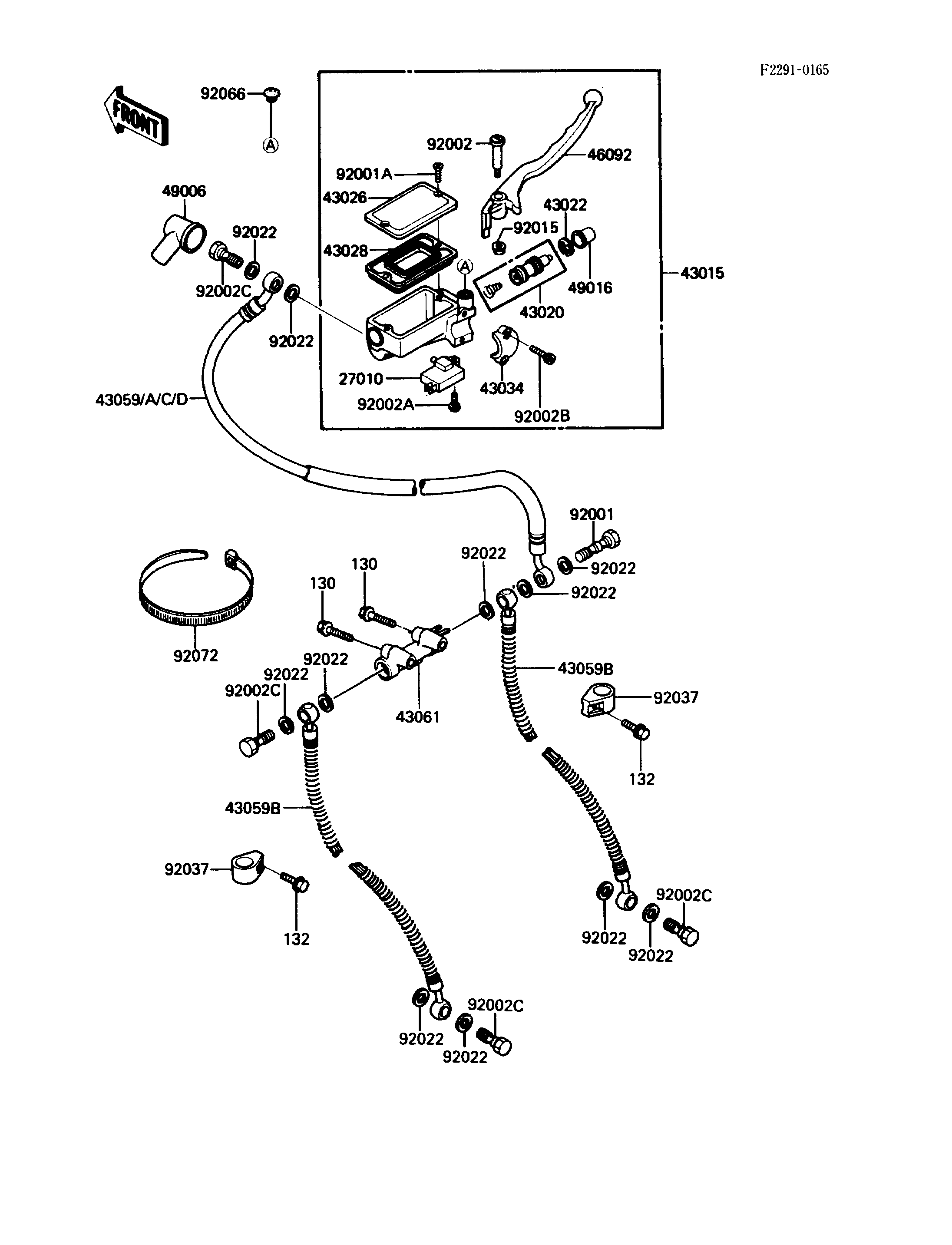

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SWITCH,BRAKE | 27010 | 27010-1170 | 1 | ||
| CYLINDER-ASSY-MASTER,FR | 43015 | 43015-1301 | 1 | ||
| PISTON-COMP-BRAKE,FR | 43020 | 43020-1054 | 1 | ||
| STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
| CAP-BRAKE,FR | 43026 | 43026-1052 | 1 | ||
| DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1058 | 1 | ||
| HOLDER-BRAKE,MASTER CYLINDER | 43034 | 43034-1053 | 1 | ||
| HOSE-BRAKE,FR,FOR LOW HANDLE | 43059 | 43059-1341 | 1 | ||
| HOSE-BRAKE,FR | 43059B | 43059-1342 | 2 | ||
| HOSE-BRAKE,FR,FOR UP HANDLE | 43059D | 43059-1401 | 1 | (OPTION) | |
| JOINT-BRAKE | 43061 | 43061-1004 | 1 | ||
| LEVER-GRIP,FRONT BRAKE | 46092 | 46092-1117 | 1 | ||
| BOOT,DUST | 49006 | 49006-1040 | 1 | ||
| COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | ||
| BOLT,BANJO,10X37 | 92001 | 92001-1203 | 1 | ||
| SCREW,5MM | 92001A | 92001-1727 | 2 | ||
| BOLT,LEVER SET | 92002 | 92002-1322 | 1 | ||
| BOLT,SCREW,4X12 | 92002A | 92002-1323 | 1 | ||
| BOLT,SOCKET,6X20 | 92002B | 92002-1324 | 2 | ||
| BOLT,OIL,L=23 | 92002C | 92002-1888 | 4 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1233 | 1 | ||
| WASHER,10.5X15X1.5 | 92022 | 43067-001 | 11 | ||
| CLAMP,HOSE | 92037 | 92037-1751 | 2 | ||
| PLUG,9.5X8,POLYETHYLENE | 92066 | 92066-1077 | 1 | ||
| BAND,L=365 | 92072 | 92072-1197 | 1 | ||
| BOLT-FLANGED,6X60 | 130 | 130G0660 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132W0620 | 2 |
