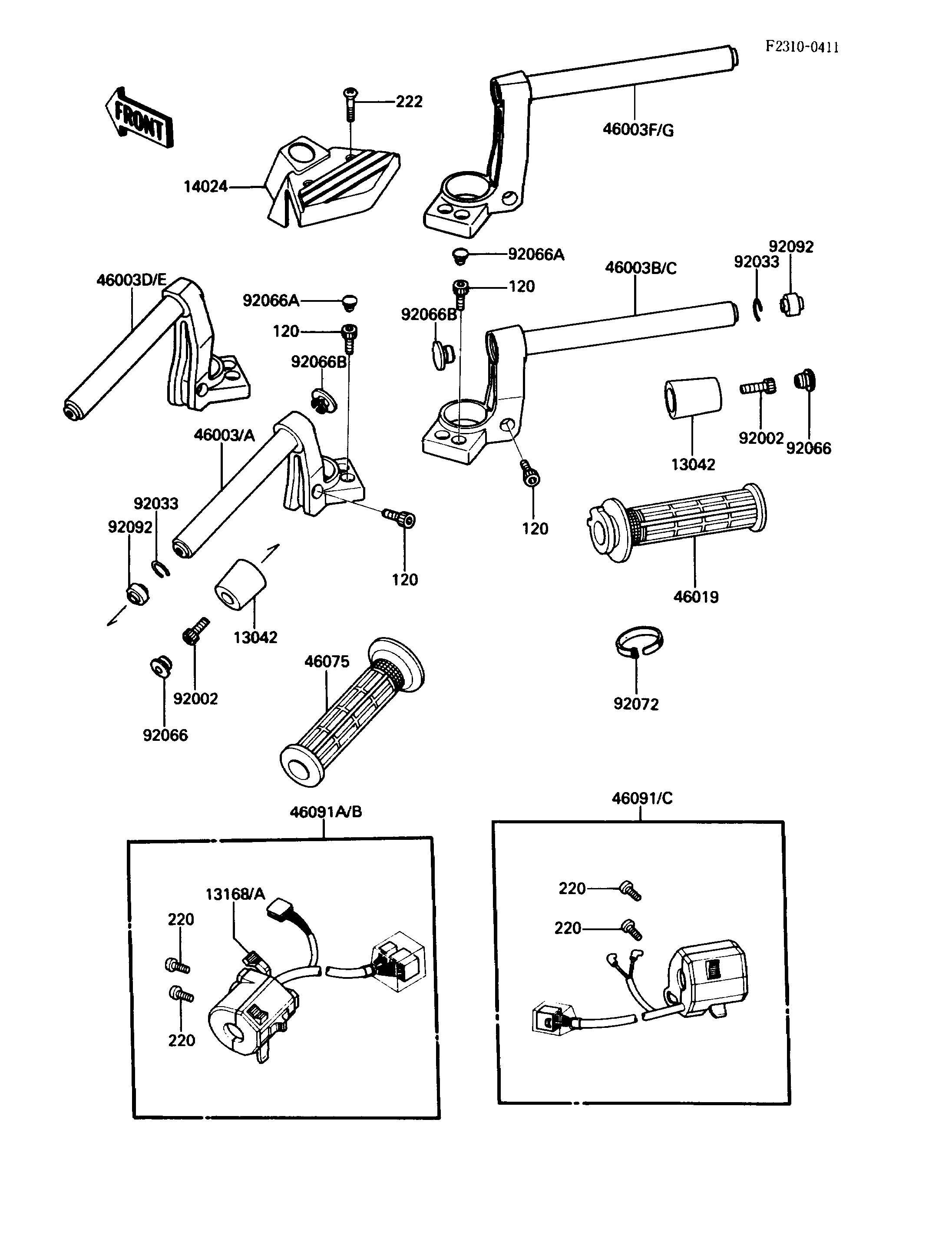

1986 Concours - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT,HANDLE 13042 13042-1006 2
LEVER,CHOKE 13168 13168-1239 1
COVER,HANDLE 14024 14024-1104 1
HANDLE,LH,LOW TYPE 46003 46003-1213 1
HANDLE,RH,LOW TYPE 46003B 46003-1214 1
HANDLE,LH,HIGH TYPE 46003E 46003-1246 1 (OPTION)
HANDLE,RH,HIGH TYPE 46003G 46003-1247 1 (OPTION)
GRIP-ASSY,THROTTLE 46019 46019-1059 1
GRIP,LH 46075 46075-1028 1
HOUSING-ASSY-CONTROL,RH 46091 46091-1405 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-1406 1
BOLT,SOCKET,8X30 92002 92002-1844 2
RING-SNAP,OD=22.2 92033 92033-1102 2
PLUG,HANDLE 92066 92066-1124 2
PLUG 92066A 92066-1216 4
PLUG,13.5X12,POLYETHYLENE 92066B 92066-1245 2
BAND,L=365 92072 92072-1197 2
BUSHING-RUBBER,HANDLE 92092 92092-1018 2
BOLT-SOCKET,8X20 120 120S0820 6
SCREW-PAN-CROS 220 220C0520 4
SCREW-CSK-RD-CROS 222 222C0525 2
