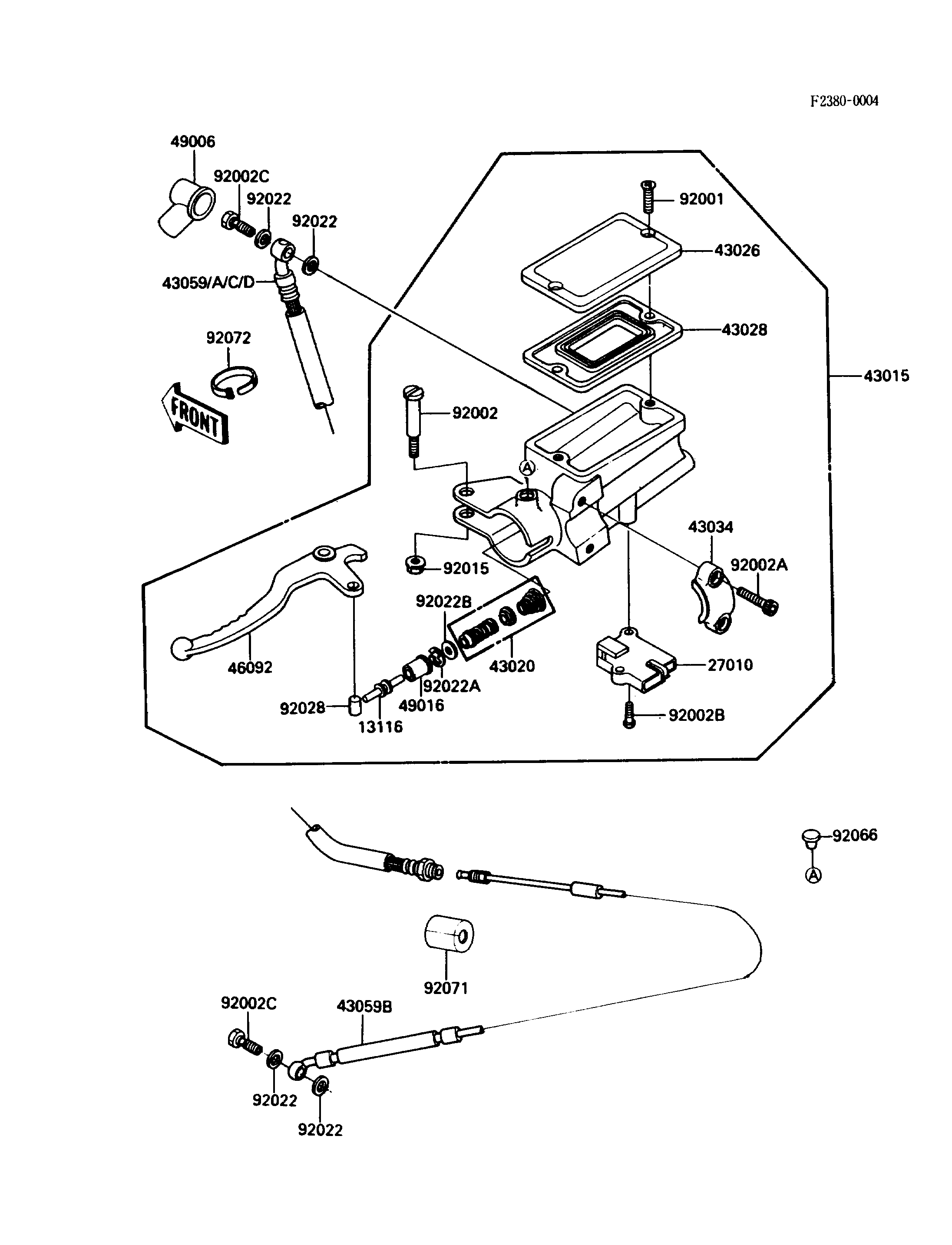

1986 Concours - Clutch Master Cylinder
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ROD-PUSH,MASTER CYLINDER | 13116 | 13116-1110 | 1 | ||
| SWITCH,CLUTCH | 27010 | 27010-1171 | 1 | ||
| CYLINDER-ASSY-MASTER,CLUTCH | 43015 | 43015-1318 | 1 | ||
| PISTON-COMP-BRAKE,CLUTCH | 43020 | 43020-1055 | 1 | ||
| CAP-BRAKE,FR | 43026 | 43026-1052 | 1 | ||
| DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1058 | 1 | ||
| HOLDER-BRAKE,MASTER CYLINDER | 43034 | 43034-1054 | 1 | ||
| HOSE-CLUTCH,FOR LOW HANDLE | 43059 | 43059-1339 | 1 | ||
| HOSE-BRAKE,CLUTCH | 43059B | 43059-1340 | 1 | ||
| HOSE-CLUTCH,FOR UP HANDLE | 43059D | 43059-1402 | 1 | (OPTION) | |
| LEVER-GRIP,CLUTCH | 46092 | 46092-1131 | 1 | ||
| BOOT,DUST | 49006 | 49006-1040 | 1 | ||
| COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | ||
| SCREW,5MM | 92001 | 92001-1727 | 2 | ||
| BOLT,LEVER SET | 92002 | 92002-1322 | 1 | ||
| BOLT,SOCKET,6X20 | 92002A | 92002-1324 | 2 | ||
| SCREW | 92002B | 92002-1325 | 1 | ||
| BOLT,OIL,L=23 | 92002C | 92002-1888 | 2 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1233 | 1 | ||
| WASHER,10.5X15X1.5 | 92022 | 43067-001 | 4 | ||
| WASHER,PISTON | 92022A | 92022-1605 | 1 | ||
| WASHER,PISTON | 92022B | 92022-1606 | 1 | ||
| BUSHING,MASTER CYLINDER | 92028 | 92028-1310 | 1 | ||
| PLUG,9.5X8,POLYETHYLENE | 92066 | 92066-1077 | 1 | ||
| GROMMET | 92071 | 92071-1143 | 1 | ||
| BAND,L=185 | 92072 | 92072-1195 | 1 |
