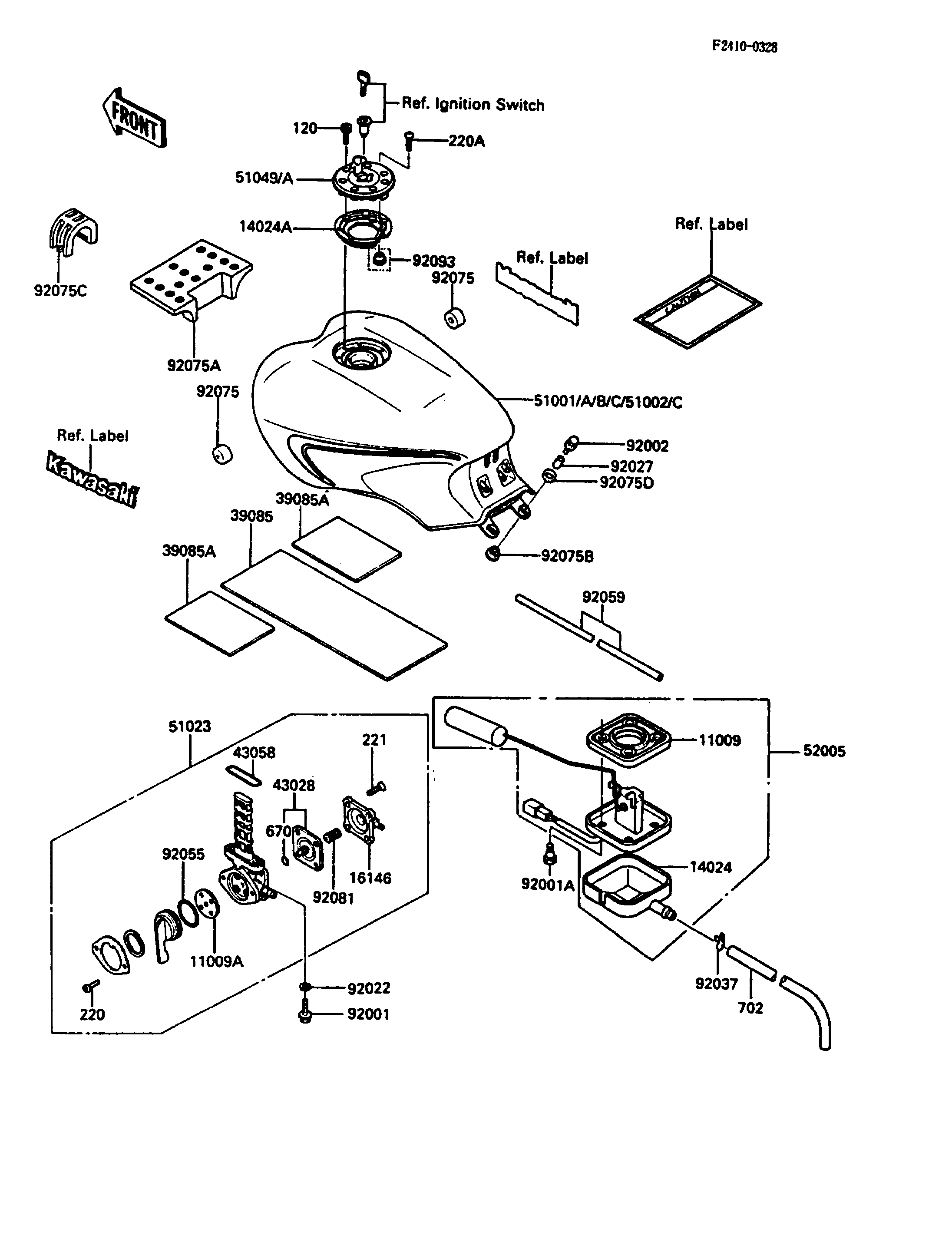

1986 Concours - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11009 11009-1308 1
GASKET,TAP VALVE 11009A 11009-1530 1
COVER,FUEL GAUGE 14024 14025-1536 1
COVER,TANK CAP 14024A 14025-1913 1
COVER-ASSY,TAP DIAPHRAGM 16146 16146-1005 1
PAD-TANK,CNT 39085 39085-1054 1 CA
PAD-TANK,SIDE 39085A 39085-1055 2 CA
DIAPHRAGM,TAP 43028 43028-1015 1
RING,TAP FLANGED 43058 51039-010 1
TANK-COMP-FUEL,C.W.RED 51001 51001-1231-H3 1 CN
TANK-COMP-FUEL,P.G.GRAY 51001A 51001-1231-T8 1 CNUS
TANK-COMP-FUEL,P.G.GRAY 51001C 51001-1237-T8 1 CA
TAP-ASSY,FUEL 51023 51023-1130 1
CAP-TANK,FUEL 51049 51049-1053 1
GAUGE,FUEL 52005 52005-1078 1
BOLT,6X20 92001 92001-1091 2
BOLT,FUEL GAUGE 92001A 92001-1705 4
BOLT,6X25 92002 92002-1137 2
WASHER,6.2X11X1.5 92022 92022-183 2
COLLAR,6.8X10X14.5 92027 92027-156 2
CLAMP,TUBE 92037 92037-147 1
RING-O,TAP LEVER 92055 92055-1027 1
TUBE,5X8X600 92059 92059-1726 1
DAMPER,FUEL TANK 92075 92075-125 2
DAMPER,FUEL TANK 92075A 92075-1672 1
DAMPER,MALE 92075B 92075-174 2
DAMPER,FUEL TANK 92075C 92075-1741 1
DAMPER,FEMALE 92075D 92075-175 2
SPRING,TAP DIAPHRAGM 92081 92081-1171 1
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
BOLT-SOCKET 120 120S0512 7
SCREW-PAN-CROS 220 220B0308 2
SCREW-PAN-CROS 220A 220C0508 1
SCREW-CSK-CROS,4X14 221 221B0414 4
O RING,4MM 670 670B1504 1
TUBE-RUBBER,7X10X780 702 702A07780 1
