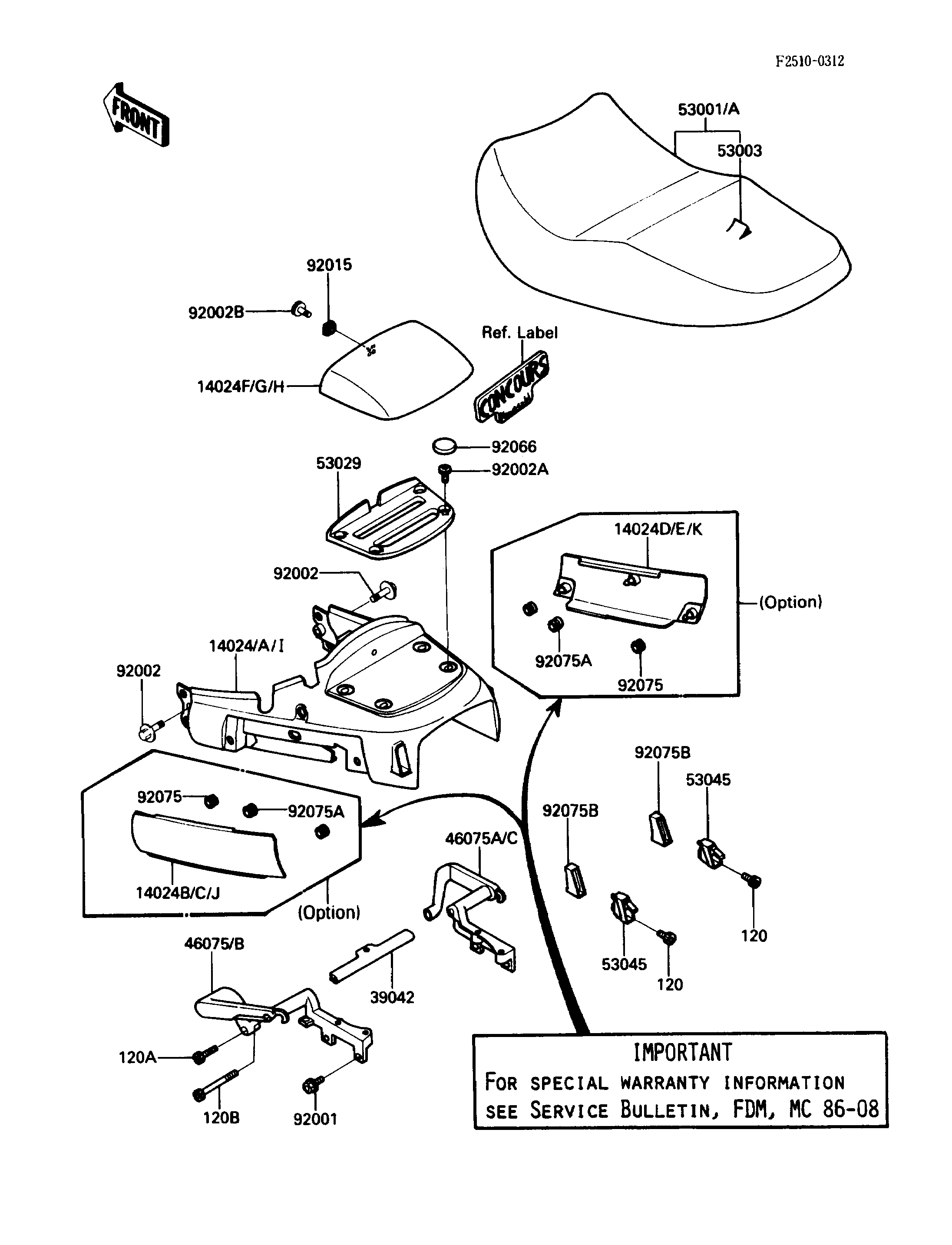

1986 Concours - Seat

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SEAT,C.W.RED 14024 14024-1224-H3 1 CN
COVER,SEAT,P.G.GRAY 14024A 14024-1224-T8 1
COVER,SEAT COVER,LH,C.W.RED 14024B 14024-1225-H3 1 CN
COVER,SEAT COVER,LH,P.G.GRAY 14024C 14024-1225-T8 1
COVER,SEAT COVER,RH,C.W.RED 14024D 14024-1226-H3 1 CN
COVER,SEAT COVER,RH,P.G.GRAY 14024E 14024-1226-T8 1
COVER,CARRIER,C.W.RED 14024G 14024-1227-H3 1 CN
COVER,CARRIER,P.G.GRAY 14024H 14024-1227-T8 1
CROSSMEMBER,SEAT GRIP 39042 39042-1052 1
GRIP,SEAT,RR,LH 46075 46075-1066 1
GRIP,SEAT,RR,RH 46075A 46075-1067 1
SEAT-ASSY,DUAL 53001 53001-1465 1
LEATHER,SEAT 53003 53003-1162 1
CARRIER,TAIL 53029 53029-1069 1
HOOK-ASSY,BUNGEE CORD 53045 53045-1052 2
BOLT,8X18 92001 92001-1359 4
BOLT,6X25 92002 92002-1135 2
BOLT,SOCKET,8X23.5 92002A 92002-1598 4
BOLT,5MM 92002B 92002-1724 1
NUT,5MM 92015 92015-1710 1
PLUG,19X6 92066 92066-1251 4
DAMPER 92075 92075-051 4
DAMPER 92075A 92075-1470 2
DAMPER,BUNGEE CORD HOOK 92075B 92075-1823 2
BOLT-SOCKET,6X14 120 120P0614 2
BOLT-SOCKET,8X25,BLACK 120A 120S0825 2
BOLT-SOCKET 120B 120S0890 2
