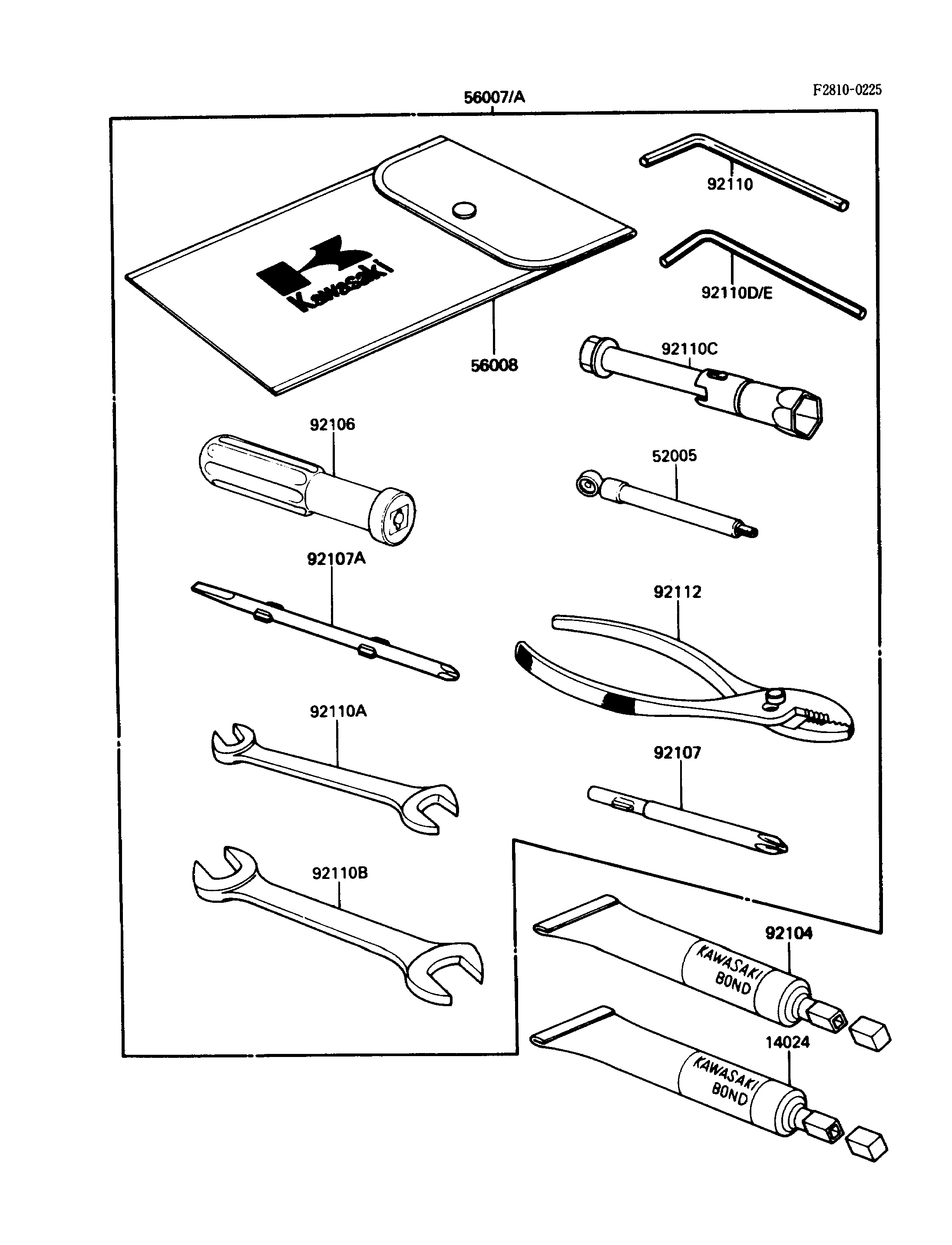

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
THREE BOND TB1211,HT/RS,WHITE 14024 56019-120 1
GAUGE,AIR,3.5KG/CM2 52005 52005-1031 1
TOOLKIT 56007 56007-1244 1
BAG,TOOL 56008 56008-006 1
GASKET-LIQUID,TUBE,100G,BLACK 92104 92104-1003 1
GRIP-SCREW DRIVER 92106 92106-1001 1
TOOL-DRIVER,#3PHILLIPS 92107 92107-1002 1
TOOL-DRIVER,#2PHILLIPS&SLOT 92107A 92107-1052 1
TOOL-WRENCH,ALLEN,5MM 92110 92110-1015 1
TOOL-WRENCH,OPEN END,10X12 92110A 92110-1038 1
TOOL-WRENCH,OPEN END,14X17 92110B 92110-1045 1
TOOL-WRENCH,BOX,18MM 92110C 92110-1134 1
TOOL-WRENCH,ALLEN,6MM 92110E 92127-003 1
TOOL-PLIERS 92112 92112-003 1
