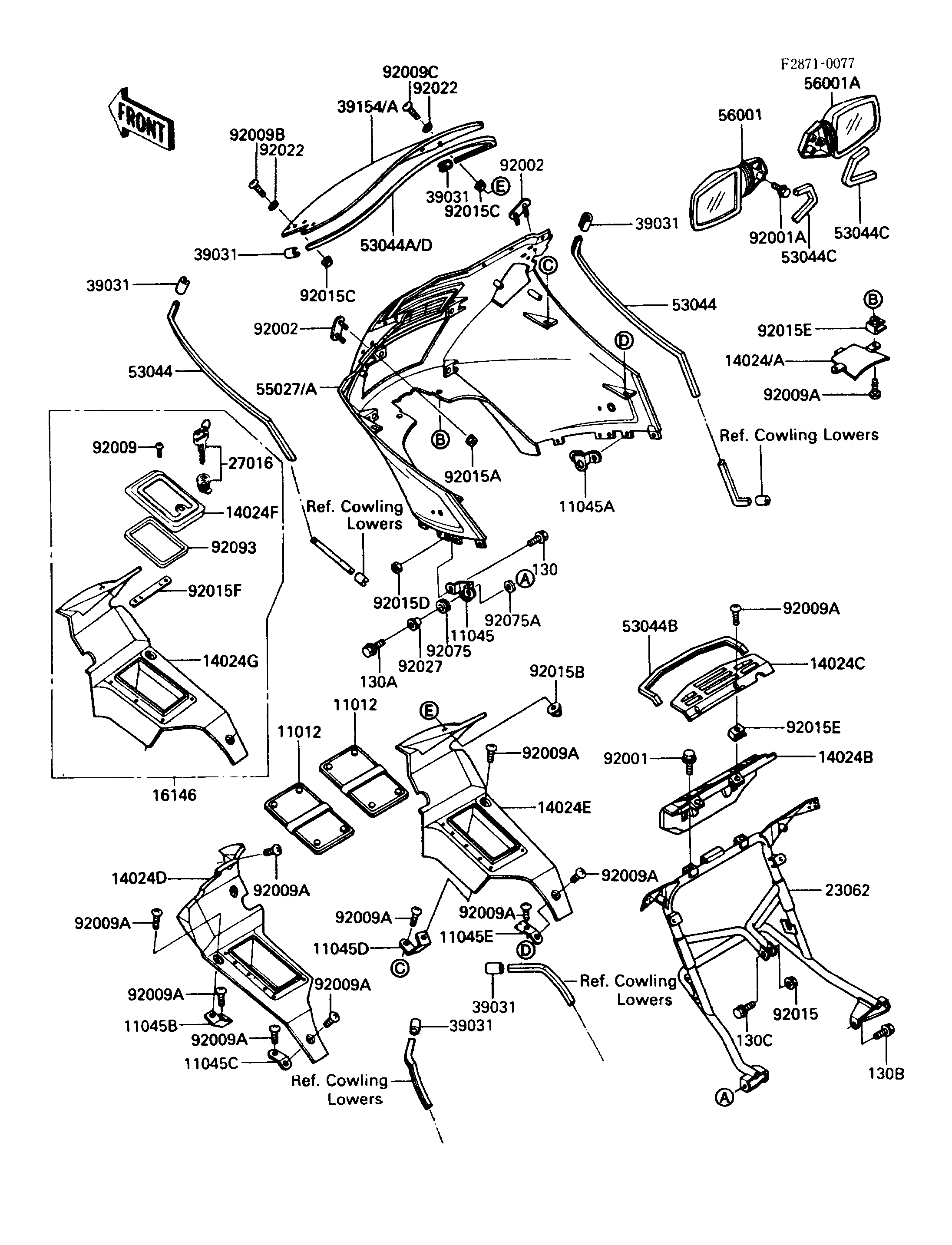

1986 Concours - Cowling(A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,INNER COWLING 11012 11012-1546 2
BRACKET,UPPER COWLING,LWR,LH 11045 11044-1907 1
BRACKET,UPPER COWLING,LWR,RH 11045A 11044-1908 1
BRACKET,INNER COWLING,FR,LH 11045B 11044-1909 1
BRACKET,INNER COWLING,RR 11045C 11044-1910 1
BRACKET,INNER COWLING,FR,RH 11045D 11044-1922 1
BRACKET,INNER COWLING,RR 11045E 11045-1612 1
COVER,UPPER COWLING,LWR,RED 14024 14024-1252-H3 1 CN
COVER,UPPER COWLING,LWR,GRAY 14024A 14024-1252-T8 1
COVER,HORN,RR 14024B 14024-1255 1
COVER,INNER COWLING,CNT 14024C 14024-1256 1
COVER,INNER COWLING,UPP,LH 14024D 14024-1422 1
COVER,INNER COWLING,UPP,RH 14024E 14024-1423 1
COVER,INNER COWLING COVER,RH 14024F 14024-1472 1 (OPTION)
COVER,INNER COWLING,UPP,RH 14024G 14024-1473 1 (OPTION)
COVER-ASSY,INNER COWLING,UPP 16146 16146-1083 1 (OPTION)
BRACKET-COMP,UPPER COWLING 23062 23062-1063 1
LOCK-ASSY,FAIRING POCKET 27016 27016-1073 1 (OPTION)
CAP-END,TRIM 39031 39031-1055 6
WINDSHIELD,SHORT TYPE 39154 39154-1062 1
WINDSHIELD,LONG TYPE 39154A 39154-1069 1 (OPTION)
TRIM,COWLING 53044 53044-1157 2
TRIM,WINDSHIELD,SHORT TYPE 53044A 53044-1164 1
TRIM,INNER COWLING 53044B 53044-1172 1
TRIM,MIRROR 53044C 53044-1173 2
TRIM,WINDSHIELD,LONG TYPE 53044D 53044-1192 1 (OPTION)
COWLING-ASSY,UPP,OUTER,RED 55027 55027-1092-H3 1 CN
COWLING-ASSY,UPP,OUTER,GRAY 55027A 55027-1092-T8 1
MIRROR-ASSY,LH 56001 56001-1333 1
MIRROR-ASSY,RH 56001A 56001-1334 1
BOLT 92001 92001-1825 2
BOLT,6X14,BLACK 92001A 92001-1847 4
BOLT,"U" 92002 92002-1800 2
SCREW,4X16 92009 92009-1108 2 (OPTION)
SCREW,6X14,BLACK 92009A 92009-1308 14
SCREW,5X14,BLACK 92009B 92009-1383 8
SCREW,5X20,BLACK 92009C 92009-1453 2
NUT,FLANGED,8MM,BLACK 92015 92015-1183 1
NUT,FLANGED,6MM,BLACK 92015A 92015-1237 4
NUT,LOCK 5MM 92015B 92015-1263 2
NUT,5MM,COWLING 92015C 92015-1343 10
NUT,STAY,6MM 92015D 92015-1394 4
NUT,6MM 92015E 92015-1602 4
NUT,PLATE,4MM 92015F 92015-1661 1 (OPTION)
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 10
COLLAR,L=13.1,BLACK 92027 92027-1450 2
DAMPER,MALE 92075 92075-174 2
DAMPER,FEMALE 92075A 92075-175 2
SEAL,FAIRING POCKET 92093 92093-1239 1 (OPTION)
BOLT-FLANGED,6X10,BLACK 130 130C0610 4
BOLT-FLANGED 130A 130C0625 2
BOLT-FLANGED 130B 130J0812 2
BOLT-FLANGED,8X30 130C 130J0830 1
