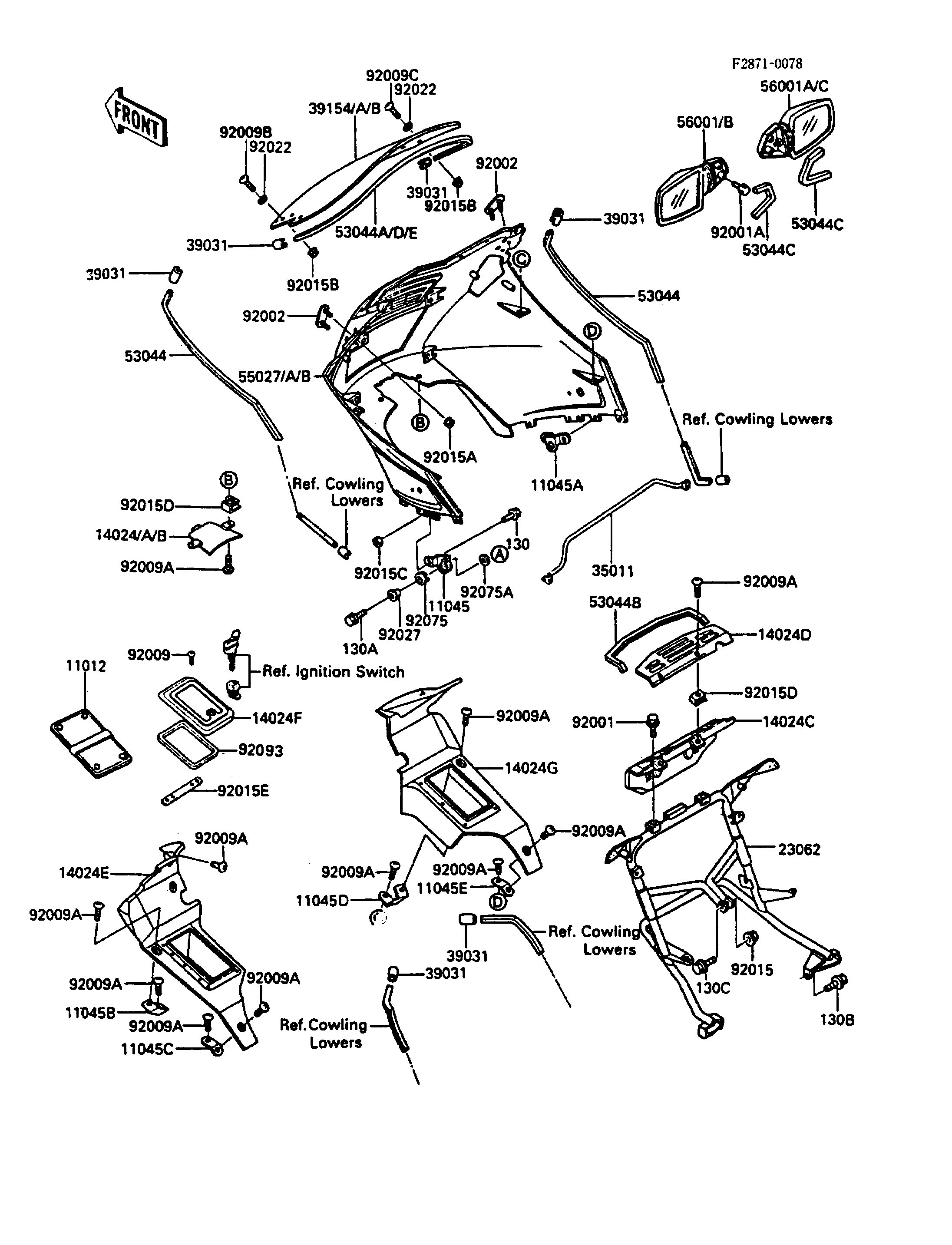

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,INNER COWLING | 11012 | 11012-1546 | 1 | ||
BRACKET,UPPER COWLING,LWR,LH | 11045 | 11044-1907 | 1 | ||
BRACKET,UPPER COWLING,LWR,RH | 11045A | 11044-1908 | 1 | ||
BRACKET,INNER COWLING,FR,LH | 11045B | 11044-1909 | 1 | ||
BRACKET,INNER COWLING,RR | 11045C | 11044-1910 | 1 | ||
BRACKET,INNER COWLING,FR,RH | 11045D | 11044-1922 | 1 | ||
BRACKET,INNER COWLING,RR | 11045E | 11045-1612 | 1 | ||
COVER,UPPER COWLING,LWR,RED | 14024 | 14024-1252-A5 | 1 | ||
COVER,HORN,RR | 14024C | 14024-1255 | 1 | ||
COVER,INNER COWLING,CNT | 14024D | 14024-1256 | 1 | ||
COVER,INNER COWLING,UPP,LH | 14024E | 14024-1422 | 1 | ||
COVER,INNER COWLING COVER,RH | 14024F | 14024-1472 | 1 | ||
COVER,INNER COWLING,UPP,RH | 14024G | 14024-1473 | 1 | ||
BRACKET-COMP,UPPER COWLING | 23062 | 23062-1068 | 1 | ||
STAY,SIDE COWLING | 35011 | 35011-1340 | 1 | ||
CAP-END,TRIM | 39031 | 39031-1055 | 6 | ||
WINDSHIELD,SHORT TYPE | 39154 | 39154-1070 | 1 | (OPTION) | |
WINDSHIELD,LONG TYPE | 39154A | 39154-1071 | 1 | ||
WINDSHIELD,SUPER LONG TYPE | 39154B | 39154-1075 | 1 | (OPTION) | |
TRIM,COWLING | 53044 | 53044-1157 | 2 | ||
TRIM,WINDSHIELD,SHORT TYPE | 53044A | 53044-1164 | 1 | (OPTION) | |
TRIM,INNER COWLING | 53044B | 53044-1172 | 1 | ||
TRIM,MIRROR | 53044C | 53044-1173 | 2 | ||
TRIM,WINDSHIELD,LONG TYPE | 53044D | 53044-1192 | 1 | ||
TRIM,WINDSHIELD,SUPER LONG TYP | 53044E | 53044-1196 | 1 | (OPTION) | |
COWLING-ASSY,UPP,OUTER,C.P.RED | 55027B | 55027-5035-A5 | 1 | ||
MIRROR-ASSY,LH | 56001B | 56001-1333 | 1 | ||
MIRROR-ASSY,RH | 56001C | 56001-1334 | 1 | ||
BOLT | 92001 | 92001-1825 | 2 | ||
BOLT,6X14,BLACK | 92001A | 92001-1847 | 4 | ||
BOLT,"U" | 92002 | 92002-1800 | 2 | ||
SCREW,4X16 | 92009 | 92009-1108 | 2 | ||
SCREW,6X14,BLACK | 92009A | 92009-1308 | 14 | ||
SCREW,5X14,BLACK | 92009B | 92009-1383 | 8 | ||
SCREW,5X20,BLACK | 92009C | 92009-1453 | 2 | ||
NUT,FLANGED,8MM,BLACK | 92015 | 92015-1183 | 1 | ||
NUT,FLANGED,6MM,BLACK | 92015A | 92015-1237 | 4 | ||
NUT,5MM,COWLING | 92015B | 92015-1343 | 10 | ||
NUT,STAY,6MM | 92015C | 92015-1394 | 4 | ||
NUT,6MM | 92015D | 92015-1602 | 4 | ||
NUT,PLATE,4MM | 92015E | 92015-1661 | 1 | ||
WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 10 | ||
COLLAR,L=13.1,BLACK | 92027 | 92027-1450 | 2 | ||
DAMPER,MALE | 92075 | 92075-174 | 2 | ||
DAMPER,FEMALE | 92075A | 92075-175 | 2 | ||
SEAL,FAIRING POCKET | 92093 | 92093-1239 | 1 | ||
BOLT-FLANGED,6X10,BLACK | 130 | 130C0610 | 4 | ||
BOLT-FLANGED | 130A | 130C0625 | 2 | ||
BOLT-FLANGED | 130B | 130J0812 | 2 | ||
BOLT-FLANGED,8X30 | 130C | 130J0830 | 1 |
CAP,INNER COWLING | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,UPPER COWLING,LWR,LH | |
REF # | 11045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,UPPER COWLING,LWR,RH | |
REF # | 11045A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,INNER COWLING,FR,LH | |
REF # | 11045B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,INNER COWLING,RR | |
REF # | 11045C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,INNER COWLING,FR,RH | |
REF # | 11045D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,INNER COWLING,RR | |
REF # | 11045E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,UPPER COWLING,LWR,RED | |
REF # | 14024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,HORN,RR | |
REF # | 14024C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,INNER COWLING,CNT | |
REF # | 14024D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,INNER COWLING,UPP,LH | |
REF # | 14024E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,INNER COWLING COVER,RH | |
REF # | 14024F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,INNER COWLING,UPP,RH | |
REF # | 14024G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-COMP,UPPER COWLING | |
REF # | 23062 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,SIDE COWLING | |
REF # | 35011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-END,TRIM | |
REF # | 39031 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
WINDSHIELD,SHORT TYPE | |
REF # | 39154 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
WINDSHIELD,LONG TYPE | |
REF # | 39154A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WINDSHIELD,SUPER LONG TYPE | |
REF # | 39154B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
TRIM,COWLING | |
REF # | 53044 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TRIM,WINDSHIELD,SHORT TYPE | |
REF # | 53044A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
TRIM,INNER COWLING | |
REF # | 53044B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM,MIRROR | |
REF # | 53044C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TRIM,WINDSHIELD,LONG TYPE | |
REF # | 53044D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM,WINDSHIELD,SUPER LONG TYP | |
REF # | 53044E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
COWLING-ASSY,UPP,OUTER,C.P.RED | |
REF # | 55027B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MIRROR-ASSY,LH | |
REF # | 56001B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MIRROR-ASSY,RH | |
REF # | 56001C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X14,BLACK | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,"U" | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,4X16 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,6X14,BLACK | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 14 |
DESTINATION | |
REMARKS |
SCREW,5X14,BLACK | |
REF # | 92009B |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
SCREW,5X20,BLACK | |
REF # | 92009C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,8MM,BLACK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM,BLACK | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,5MM,COWLING | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
NUT,STAY,6MM | |
REF # | 92015C |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92015D |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,PLATE,4MM | |
REF # | 92015E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,NYLON,5.3X11.5X1.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
COLLAR,L=13.1,BLACK | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,MALE | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,FEMALE | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL,FAIRING POCKET | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X10,BLACK | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X30 | |
REF # | 130C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
