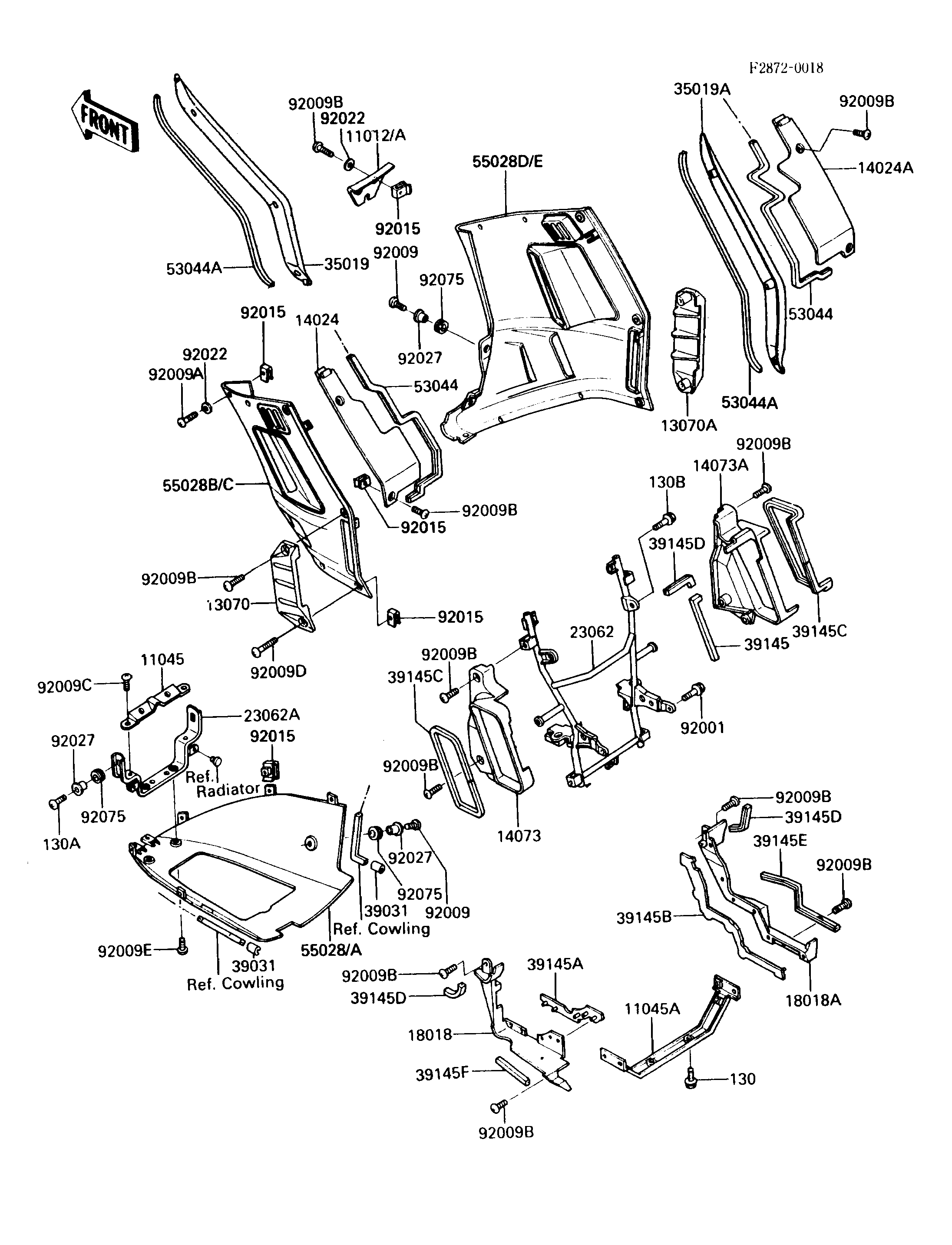

1986 Concours - Cowling Lowers(A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,RESERVOIR INSPECTION,RED 11012 11012-1534-H3 1 CN
CAP,RESERVOIR INSPECTION,GRAY 11012A 11012-1534-T8 1
BRACKET,RESERVOIR TANK,UPP 11045 11044-1919 1
BRACKET,LOWER COWLING,RR 11045A 11044-1920 1
GUIDE,SIDE COWLING,LH 13070 13070-1171 1
GUIDE,SIDE COWLING,RH 13070A 13070-1172 1
COVER,INNER COWLING,SIDE,LH 14024 14024-1460 1
COVER,INNER COWLING,SIDE,RH 14024A 14024-1461 1
DUCT,RADIATOR,RR,LH 14073 14073-1276 1
DUCT,RADIATOR,RR,RH 14073A 14073-1284 1
PLATE-HEAT GUARD,SIDE,LH 18018 18018-1068 1
PLATE-HEAT GUARD,SIDE,RH 18018A 18018-1069 1
BRACKET-COMP,RADIATOR 23062 23062-1064 1
BRACKET-COMP,LOWER COWLING,FR 23062A 23062-1065 1
FLAP,SIDE COWLING,LH 35019 35019-1193 1 (OPTION)
FLAP,SIDE COWLING,RH 35019A 35019-1194 1 (OPTION)
CAP-END,TRIM 39031 39031-1055 2
TRIM-SEAL,SIDE COWLING 39145 39145-1056 1
TRIM-SEAL,HEAT GUARD PLATE,LH 39145A 39145-1076 1
TRIM-SEAL,HEAT GUARD PLATE,RH 39145B 39145-1077 1
TRIM-SEAL,DUCT 39145C 39145-1078 2
TRIM-SEAL,HEAT GUARD 39145D 39145-1079 3
TRIM-SEAL,HEAT GUARD,RH 39145E 39145-1080 1
TRIM-SEAL,HEAT GUARD,LH 39145F 39145-1084 1
TRIM,INNER COWLING 53044 53044-1184 2
TRIM,INNER COWLING 53044A 53044-1184 2 (OPTION)
COWLING,LWR,C.W.RED 55028 55028-1124-H3 1 CN
COWLING,LWR,P.G.GRAY 55028A 55028-1124-T8 1
COWLING,SIDE,LH,C.W.RED 55028B 55028-1159-H3 1 CN
COWLING,SIDE,LH,P.G.GRAY 55028C 55028-1159-T8 1
COWLING,SIDE,RH,C.W.RED 55028D 55028-1160-H3 1 CN
COWLING,SIDE,RH,P.G.GRAY 55028E 55028-1160-T8 1
BOLT,FLANGED,10X41,BLACK 92001 92001-1844 2
SCREW,6X18,BLACK 92009 92009-1306 4
SCREW,6X22 92009A 92009-1307 10
SCREW,6X14,BLACK 92009B 92009-1308 16
SCREW,5X10 92009C 92009-1335 2
SCREW,6X28,BLACK 92009D 92009-1400 2
SCREW,6X10 92009E 92009-1402 2
NUT,6MM 92015 92015-1602 18
WASHER,6X16X1 92022 92022-1818 12
COLLAR,L=9.1,BLACK 92027 92027-1935 6
DAMPER 92075 92075-1634 6
BOLT-FLANGED,6X10 130 130B0610 2
BOLT-FLANGED 130A 130C0618 2
BOLT-FLANGED 130B 130J0812 2
