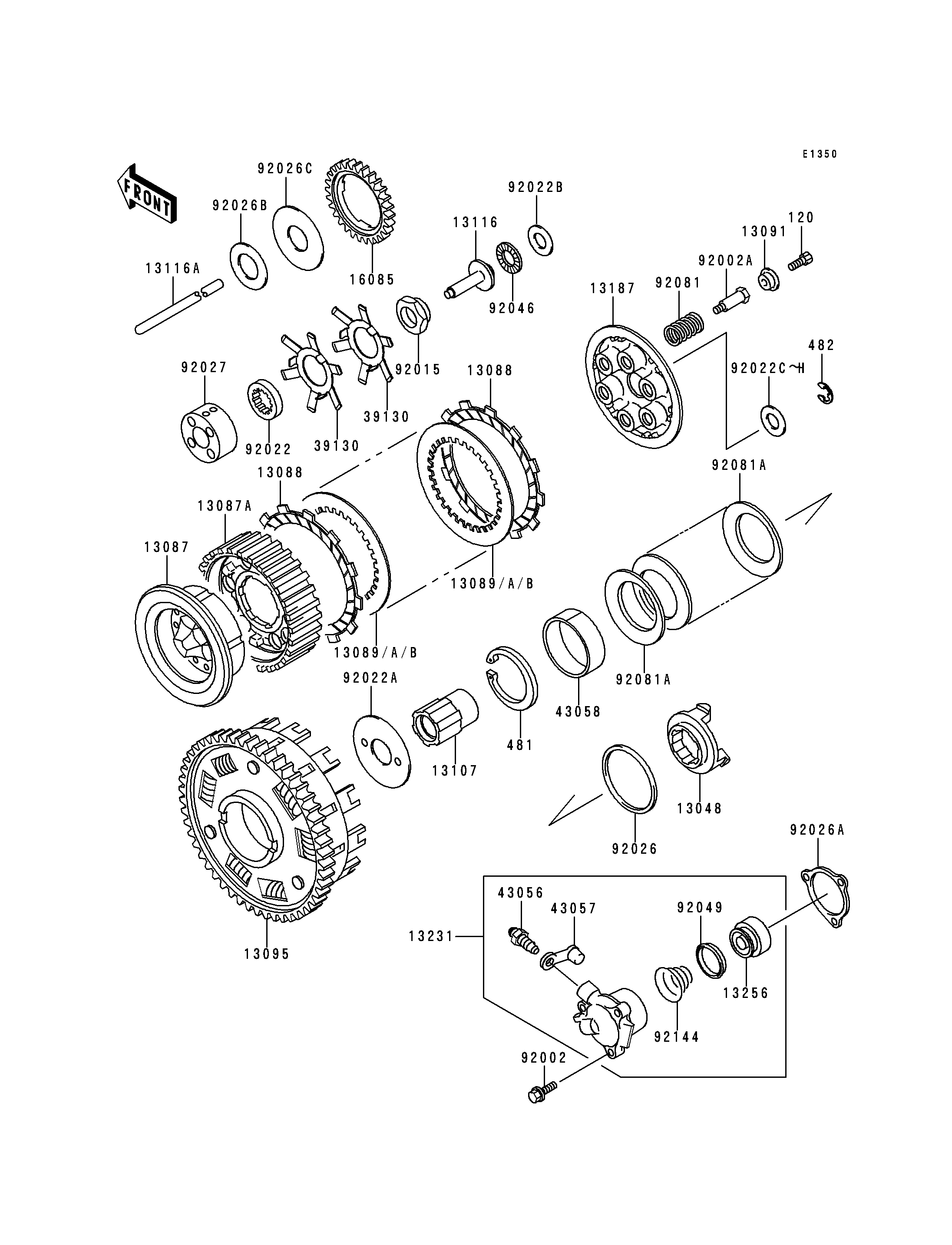

1997 Concours - Clutch

DOWNLOAD PDF
SELECT A NEW PART
13048
13048
13087
13087
13087A
13087A
13088
13088
13088
13088
13089
13089
13089
13089
13089A
13089A
13089A
13089A
13089B
13089B
13089B
13089B
13091
13091
13095
13095
13107
13107
13116
13116
13116A
13116A
13187
13187
13231
13231
13256
13256
16085
16085
39130
39130
39130
39130
43056
43056
43057
43057
43058
43058
92002
92002
92002A
92002A
92015
92015
92022
92022
92022A
92022A
92022B
92022B
92022C
92022C
92022D
92022D
92022E
92022E
92022F
92022F
92022G
92022G
92022H
92022H
92026
92026
92026A
92026A
92026B
92026B
92026C
92026C
92027
92027
92046
92046
92049
92049
92081
92081
120
120
481
481
482
482
92081A
92081A
92081A
92081A
92144
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAM-DAMPER 13048 13048-1007 1
HUB-CLUTCH 13087 13087-1071 1
HUB-CLUTCH 13087A 13087-1072 1
PLATE-FRICTION 13088 13088-1051 9
PLATE-CLUTCH,T=2.3 13089 13089-1004 AR
PLATE-CLUTCH,T=2.6 13089A 13089-1067 AR
PLATE-CLUTCH,T=2.0 13089B 13089-1068 AR
HOLDER,CLUTCH SPRING 13091 13091-1041 6
HOUSING-COMP-CLUTCH 13095 13095-1146 1
SHAFT,CLUTCH 13107 13107-1299 1
ROD-PUSH,CLUTCH 13116 13116-1119 1
ROD-PUSH,CLUTCH 13116A 13116-1140 1
PLATE-CLUTCH OPERATING 13187 13187-1055 1
RELEASE-ASSY-CLUTCH 13231 13231-1072 1
PISTON 13256 13256-1052 1
GEAR,OIL PUMP 16085 16085-1108 1
SPRING-LEAF 39130 39130-1071 2
BREATHER-BRAKE 43056 43056-1052 1
CAP-BREATHER 43057 43057-1001 1
RING 43058 43058-1059 1
BOLT,6X25 92002 92002-1344 3
BOLT,CLUTCH 92002A 92002-1639 6
NUT 92015 92015-1929 1
WASHER,TOOTHED,25X40X5 92022 92022-1114 1
WASHER,CLUTCH THRUST 92022A 92022-1221 1
WASHER,15.1X29X1.0 92022B 92022-1463 1
WASHER,15.1X23X1.0 92022C 92022-1750 AR
WASHER,15.1X23X0.8 92022D 92022-1751 AR
WASHER,15.1X23X1.2 92022E 92022-1752 AR
WASHER,15.1X23X1.4 92022F 92022-1753 AR
WASHER,15.1X23X1.6 92022G 92022-1754 AR
WASHER,15.1X23X1.8 92022H 92022-1755 AR
SPACER,59X70X3.5 92026 92026-1043 1
SPACER,CLUTCH RELEASE 92026A 92026-1263 1
SPACER,25X45X2.0 92026B 92026-1306 1
SPACER,25X62X2.0 92026C 92026-1307 1
COLLAR 92027 92027-1710 1
BEARING-NEEDLE,AXK1102 92046 92046-1052 1
SEAL-OIL,PISTON 92049 92049-1165 1
SPRING,CLUTCH 92081 92081-1114 6
BOLT-SOCKET,6X16 120 120Q0616 6
CIRCLIP 481 481J9500 1
CIRCLIP-TYPE-E,12MM 482 482J0200 1
SPRING 92081A 92081-1906 7
SPRING,CLUTCH RELEASE 92144 92144-1084 1
