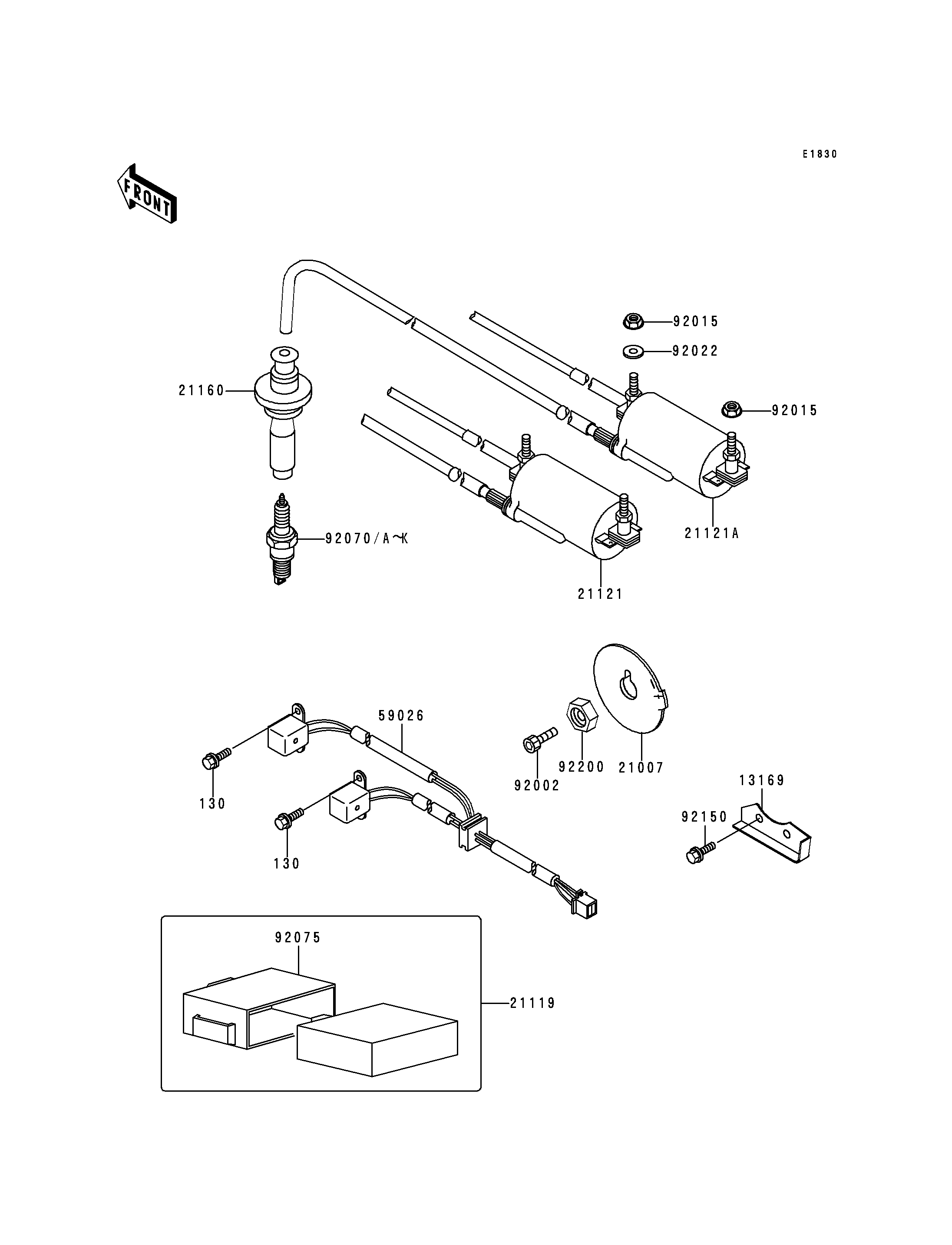

1995 Concours - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
13169
13169
21007
21007
21119
21119
21121
21121
21121A
21121A
21160
21160
59026
59026
92002
92002
92015
92015
92015
92015
92022
92022
130
130
130
130
92075
92075
92150
92150
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,CHAIN GUIDE 13169 13169-1748 1
ROTOR,PULSING COIL 21007 21007-1109 1
IGNITER 21119 21119-1110 1
COIL-IGNITION,#1&#4 21121 21121-1110 1
COIL-IGNITION,#2&#3 21121A 21121-1111 1
CAP-ASSY-PLUG 21160 21160-1065 4
COIL-PULSING 59026 59026-1061 1
BOLT,SOCKET,8X25 92002 92002-1442 1
NUT,FLANGED,6MM 92015 92015-1193 4
WASHER,7X16X1.2 92022 92022-024 2
BOLT-FLANGED 130 130G0512 4
DAMPER,IGNITER 92075 92075-1592 1
BOLT,6X12 92150 92150-1841 2
WASHER,ROTOR 92200 92200-1173 1
PLUG-SPARK,X24ESR-U(ND) 92070 4 (LOCAL PROCUREMENT ITEM)
PLUG-SPARK,D8EA(NGK) 92070A 92070-1011 4
PLUG-SPARK,X22ES-U(ND) 92070B 4 (OPTION)
PLUG-SPARK,D7EA(NGK) 92070C 92070-1013 4 (OPTION)
PLUG-SPARK,X24ES-U(ND) 92070D 4 (OPTION)
PLUG-SPARK,D9EA(NGK) 92070E 92070-1034 4 (OPTION)
PLUG-SPARK,X27ES-U(ND) 92070F 4 (OPTION)
PLUG-SPARK,X27ESR-U(ND) 92070G 4 (OPTION)
PLUG-SPARK,X22ESR-U(ND) 92070H 4 (OPTION)
PLUG-SPARK,DR7EA(NGK) 92070I 92070-1165 4 (OPTION)
PLUG-SPARK,DR9EA(NGK) 92070J 92070-1189 4 (OPTION)
PLUG-SPARK,DR8EA(NGK) 92070K 92070-1199 4
