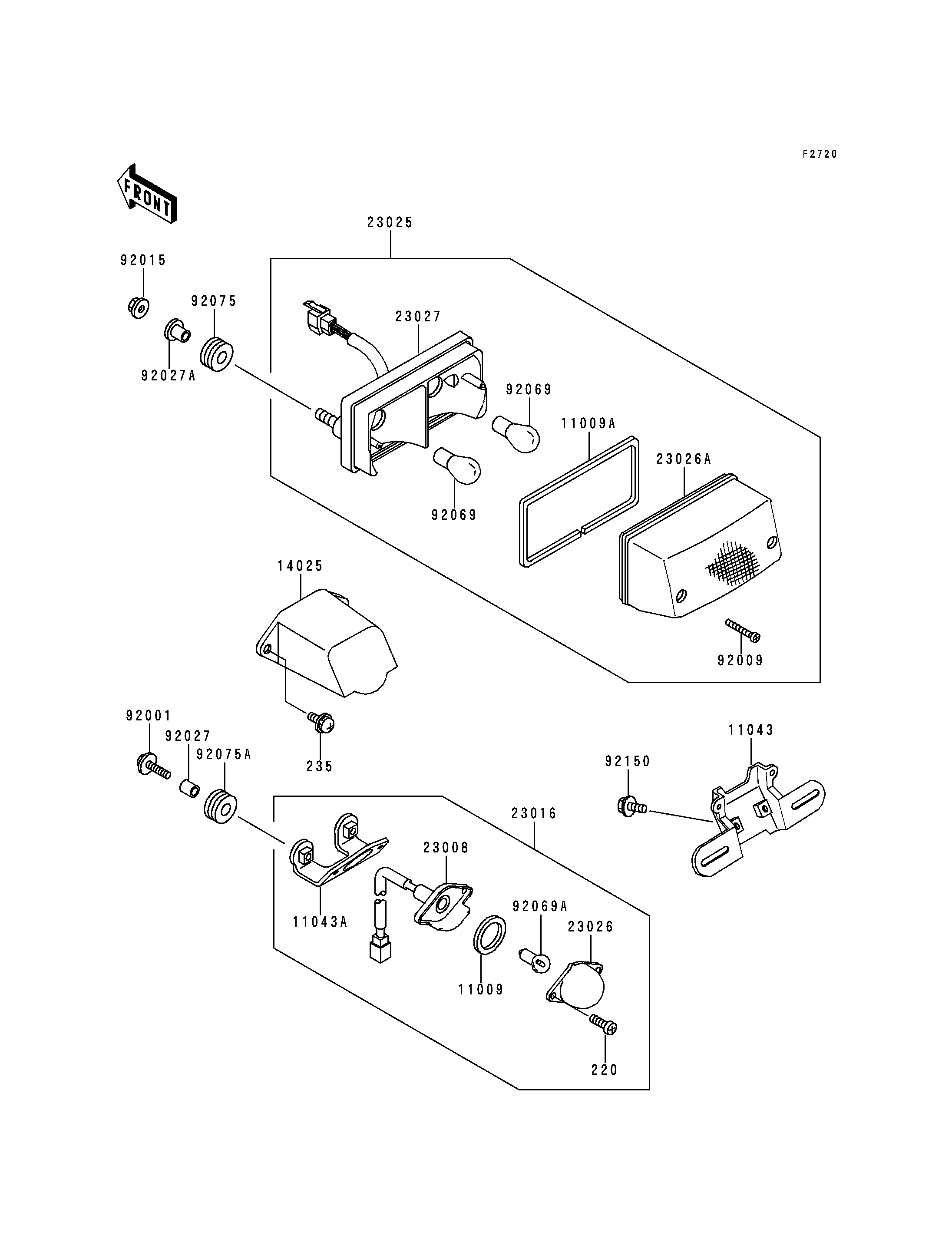

Parts Diagrams |
220
235
11009
11009A
11043
11043A
14025
23008
23016
23025
23026
23026A
23027
92001
92009
92015
92027
92027A
92069
92069
92069A
92075
92075A
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN-CROS | 220 | 220B0410 | 2 | ||
SCREW-PAN-WP-CROS | 235 | 235C0616 | 2 | ||
GASKET,LICENSE PLATE LAMP | 11009 | 11009-1372 | 1 | ||
GASKET,TAIL LAMP | 11009A | 11009-1581 | 1 | ||
BRACKET,LICENSE PLATE | 11043 | 11043-1440 | 1 | ||
BRACKET,LICENSE PLATE LAMP | 11043A | 11043-1497 | 1 | ||
COVER,LICENSE PLATE LAMP | 14025 | 14025-1821 | 1 | ||
SOCKET-ASSY,LICENSE PLATE LAMP | 23008 | 23008-1221 | 1 | ||
LAMP-ASSY,LICENSE PLATE | 23016 | 23016-1053 | 1 | ||
LAMP-TAIL | 23025 | 23025-1139 | 1 | ||
LENS,LAMP | 23026 | 23026-1054 | 1 | ||
LENS,TAIL LAMP | 23026A | 23026-1079 | 1 | ||
BODY-COMP-TAIL LAMP | 23027 | 23027-1069 | 1 | ||
BOLT,6X20 | 92001 | 92001-1773 | 2 | ||
SCREW,TAPPING,4X20 | 92009 | 92009-1297 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 2 | ||
COLLAR,6.8X10X10.5 | 92027 | 92027-120 | 2 | ||
COLLAR,L=13.1 | 92027A | 92027-251 | 2 | ||
BULB,12V 27/8W | 92069 | 92069-059 | 2 | ||
BULB,12V 8W | 92069A | 92069-1012 | 1 | ||
DAMPER | 92075 | 92075-1690 | 2 | ||
DAMPER,CASE | 92075A | 92075-222 | 2 | ||
BOLT,6X16 | 92150 | 92150-1909 | 2 |
SCREW-PAN-CROS | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-WP-CROS | |
REF # | 235 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,LICENSE PLATE LAMP | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,TAIL LAMP | |
REF # | 11009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,LICENSE PLATE | |
REF # | 11043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,LICENSE PLATE LAMP | |
REF # | 11043A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,LICENSE PLATE LAMP | |
REF # | 14025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SOCKET-ASSY,LICENSE PLATE LAMP | |
REF # | 23008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP-ASSY,LICENSE PLATE | |
REF # | 23016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP-TAIL | |
REF # | 23025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LENS,LAMP | |
REF # | 23026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LENS,TAIL LAMP | |
REF # | 23026A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY-COMP-TAIL LAMP | |
REF # | 23027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,4X20 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,6.8X10X10.5 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,L=13.1 | |
REF # | 92027A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BULB,12V 27/8W | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BULB,12V 8W | |
REF # | 92069A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,CASE | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X16 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
