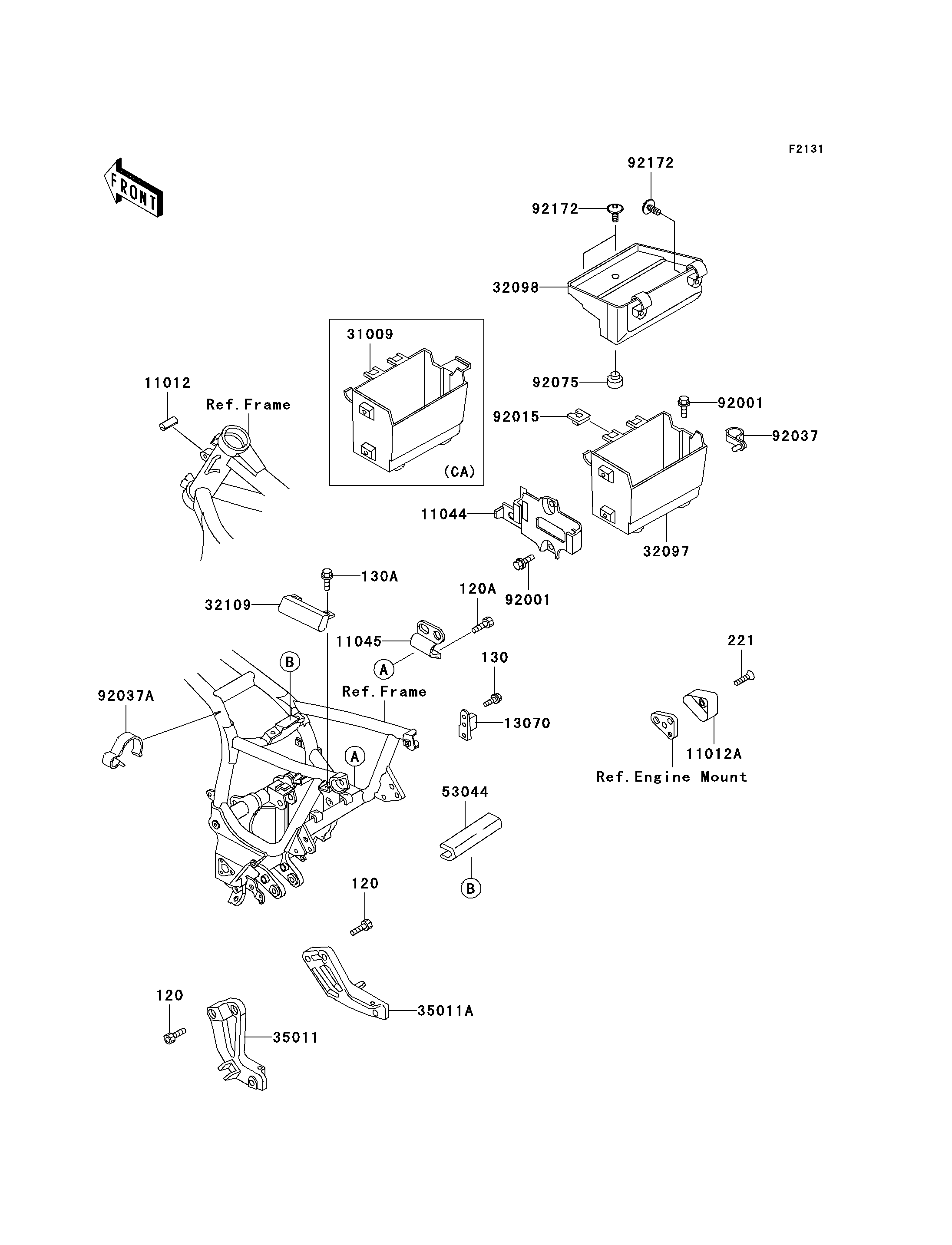

2000 Concours - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
120
120
120A
130A
221
11012
11012A
11044
11045
32098
32109
35011
35011A
53044
92001
92001
92015
92037
92075
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120P0816 4
BOLT-SOCKET,6X14,BLACK 120A 120S0614 2
BOLT-FLANGED 130A 130J0812 2
SCREW-CSK-CROS 221 221C0620 1
CAP 11012 11012-1438 1
CAP,ENGINE BRACKET 11012A 11012-1531 1
BRACKET,MAGNETIC SWITCH 11044 11044-1642 1
BRACKET,REARSHOCK ADJUST KNOB 11045 11045-1118 1
CASE-TOOL 32098 32098-1068 1
GRIP-FRAME,LH 32109 32109-1136 1
STAY,MUFFLER&REAR STEP,LH 35011 35011-1293 1
STAY,MUFFLER&REAR STEP,RH 35011A 35011-1294 1
TRIM 53044 53044-1174 1
BOLT,6X12 92001 92001-1771 4
NUT,6MM 92015 92015-1602 2
CLAMP,SPEED,L=43 92037 92037-1290 1
DAMPER 92075 92075-1045 1
SCREW,6X14 92172 92172-0004 4
BOLT-FLANGED,6X10,BLACK 130 130C0610 2 CNUS
GUIDE,HOSE 13070 13070-1160 1 CNUS
CASE-COMP-BATTERY 31009 31009-1052 1 CA
CASE-BATTERY 32097 32097-1124 1 CNUS
CLAMP,HOSE 92037A 92037-1552 2 CNUS
