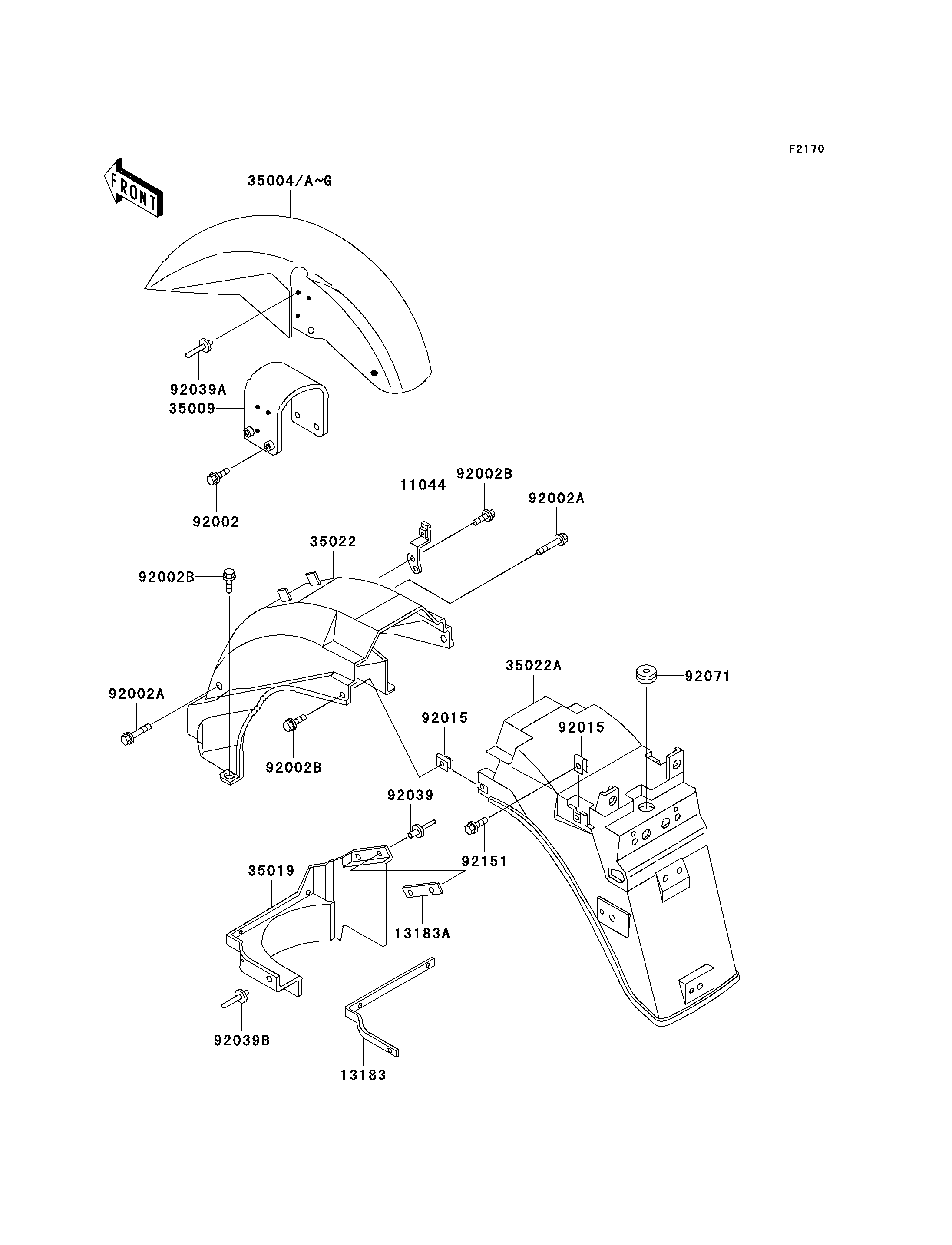

Parts Diagrams |
11044
13183
13183A
35009
35019
35022
35022A
92002
92002A
92002A
92002B
92002B
92002B
92015
92015
92039
92039A
92039B
92071
92151
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,RR BRAKE RESERVOIR | 11044 | 11044-1782 | 1 | ||
PLATE,REAR FENDER FLAP,LH | 13183 | 13183-1021 | 1 | ||
PLATE,REAR FENDER FLAP,RH | 13183A | 13183-1022 | 1 | ||
BRACE,FRONT FENDER | 35009 | 35009-1101 | 1 | ||
FLAP,REAR FENDER,FR | 35019 | 35019-1183 | 1 | ||
FENDER-COMP-REAR,FR | 35022 | 35022-1223 | 1 | ||
FENDER-COMP-REAR,RR,BLACK | 35022A | 35022-1224-6Z | 1 | ||
BOLT,FLANGED,8X20 | 92002 | 92002-1134 | 4 | ||
BOLT,6X55 | 92002A | 92002-1707 | 2 | ||
BOLT,6X16 | 92002B | 92002-1852 | 5 | ||
NUT,6MM | 92015 | 92015-1602 | 4 | ||
RIVET | 92039 | 92039-1147 | 5 | ||
RIVET | 92039A | 92039-1230 | 6 | ||
RIVET | 92039B | 92039-1231 | 1 | ||
GROMMET,SENSOR LEAD | 92071 | 92071-1058 | 1 | ||
BOLT | 92151 | 92151-1056 | 2 | ||
FENDER-FRONT,C.P.RED | 35004 | 35004-1402-A5 | 1 | CN | |
FENDER-FRONT,C.P.RED | 35004F | 35004-1402-V9 | 1 | CAUS |
