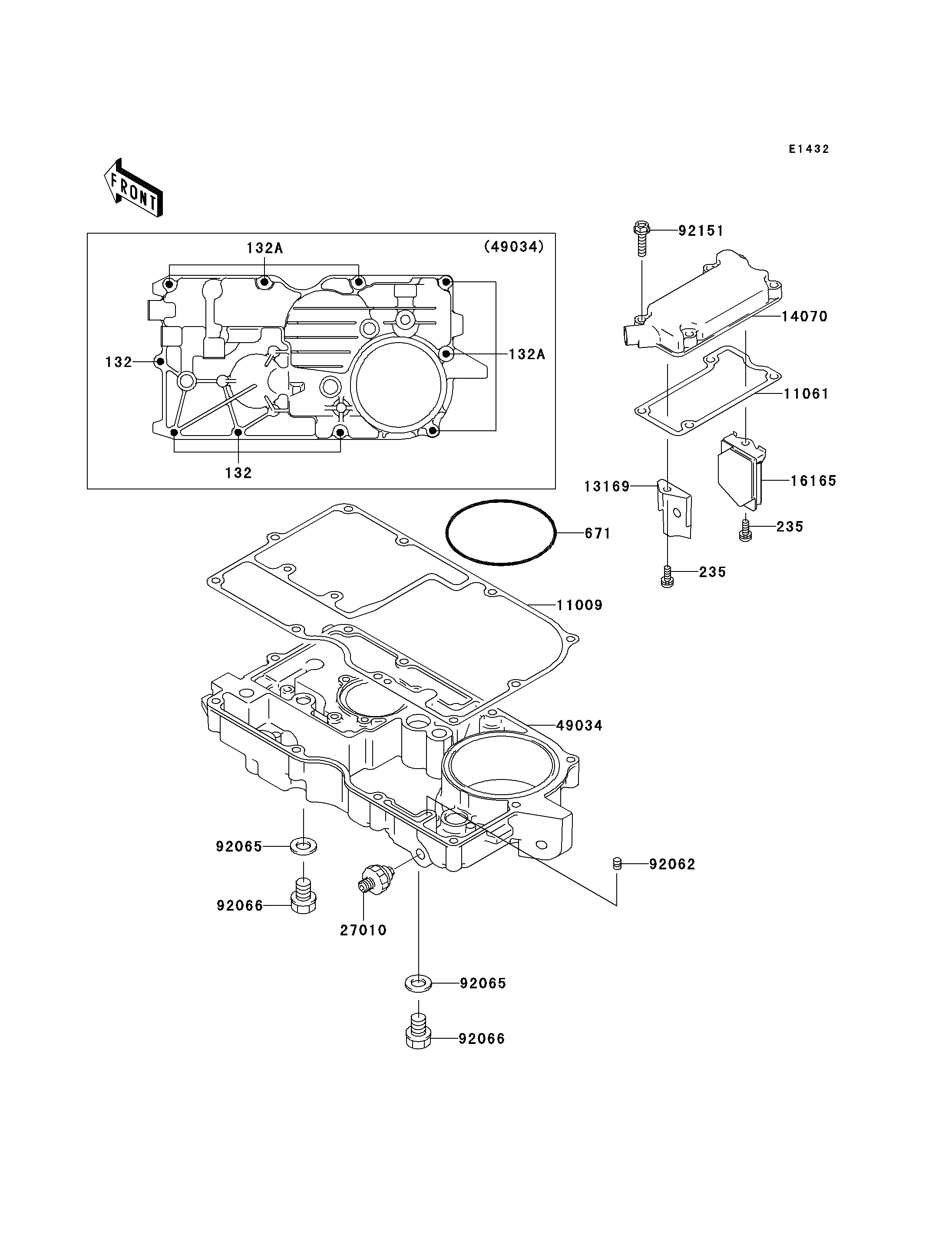

2005 Concours - Breather Cover/Oil Pan
132
132
132A
132A
235
235
671
11009
11061
13169
14070
16165
27010
49034
92062
92065
92065
92066
92066
92151
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132J0625 | 4 | ||
| BOLT-FLANGED-SMALL,6X40 | 132A | 132J0640 | 6 | ||
| SCREW-PAN-WP-CROS | 235 | 235B0610 | 2 | ||
| O RING,90MM | 671 | 671B2590 | 1 | ||
| GASKET,OIL PAN | 11009 | 11009-1981 | 1 | ||
| GASKET,BREATHER BODY | 11061 | 11061-1102 | 1 | ||
| PLATE,BREATHER | 13169 | 13169-1967 | 1 | ||
| BODY-BREATHER | 14070 | 14070-1086 | 1 | ||
| SEPARATOR,OIL | 16165 | 16165-1053 | 1 | ||
| SWITCH,OIL PRESSURE | 27010 | 27010-1313 | 1 | ||
| PAN-OIL | 49034 | 49034-1065 | 1 | ||
| NOZZLE,6X8,YELLOW | 92062 | 92062-1080 | 1 | ||
| GASKET,12X22X2 | 92065 | 92065-097 | 2 | ||
| PLUG,OIL DRAIN,12X15 | 92066 | 92066-1174 | 2 | ||
| BOLT,6X25 | 92151 | 92151-1546 | 4 |
