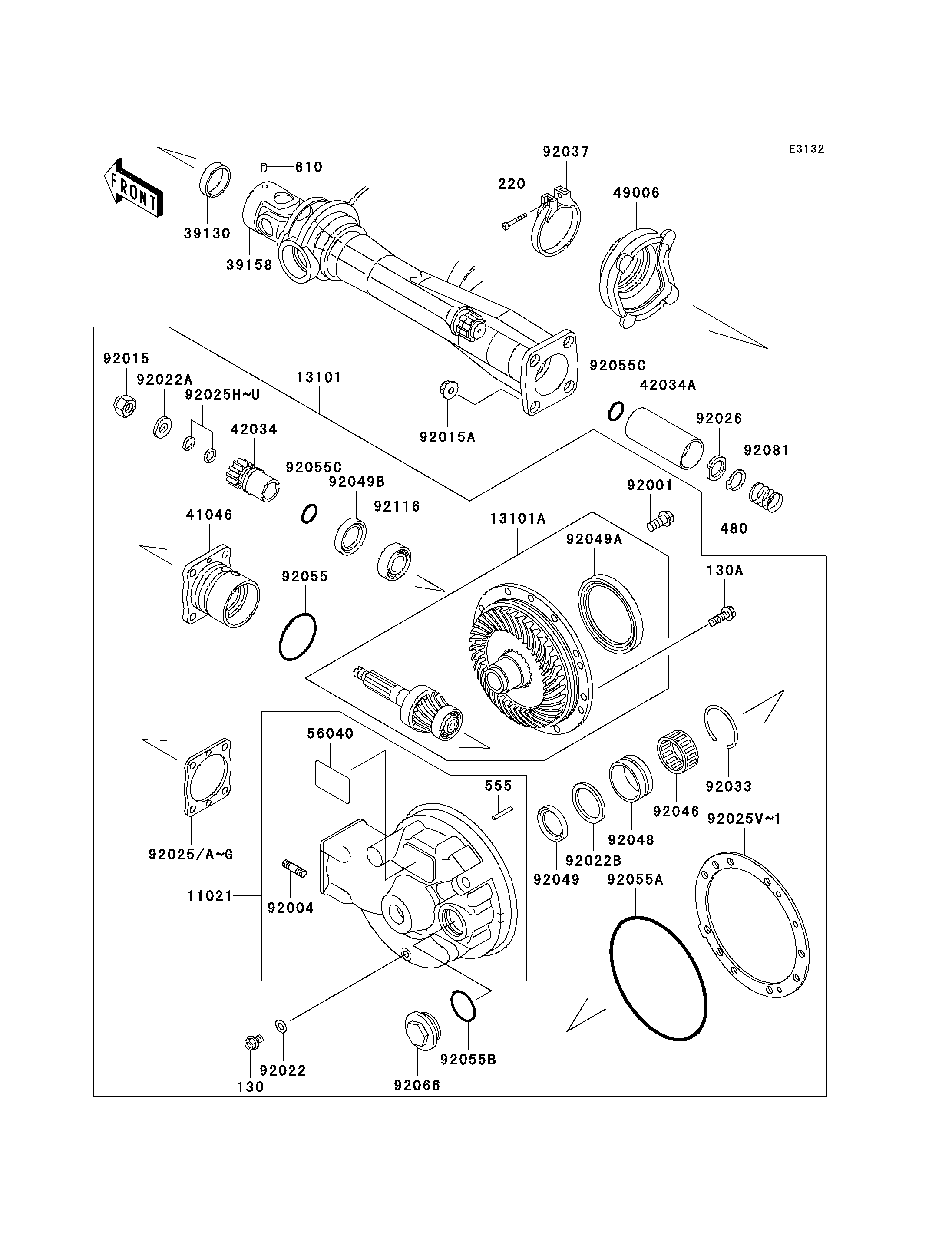

2005 Concours - Drive Shaft/Final Gear

DOWNLOAD PDF
SELECT A NEW PART
11021
11021
13101
13101
13101A
13101A
39130
39130
39158
39158
41046
41046
42034
42034
42034A
42034A
49006
49006
56040
56040
92001
92001
92004
92004
92015
92015
92015A
92015A
92022
92022
92022A
92022A
92022B
92022B
92025
92025
92025A
92025A
92025B
92025B
92025C
92025C
92025D
92025D
92025E
92025E
92025F
92025F
92025G
92025G
92025H
92025H
92025I
92025I
92025J
92025J
92025K
92025K
92025L
92025L
92025M
92025M
92025N
92025N
92025O
92025O
92025P
92025P
92025Q
92025Q
92025R
92025R
92025S
92025S
92025T
92025T
92025U
92025U
92025V
92025V
130
130
130A
130A
220
220
480
480
555
555
610
610
920250
920250
920251
920251
92025W
92025W
92025X
92025X
92025Y
92025Y
92025Z
92025Z
92026
92026
92033
92033
92037
92037
92046
92046
92048
92048
92049
92049
92049A
92049A
92049B
92049B
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92055C
92055C
92066
92066
92081
92081
92116
92116
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-ASSY,FINAL BEVEL,G.GRAY 11021 11021-1063-GD 1
GEAR-ASSY,FINAL BEVEL,G.GRAY 13101 13101-1099-GD 1
GEAR-ASSY,FINAL BEVEL 13101A 13101-5063 1
SPRING-LEAF 39130 39130-1002 1
SHAFT-ASSY-DRIVE 39158 39158-1059 1
HOUSING-BEARING,BLACK 41046 41046-1069 1
COUPLING 42034 42034-1079 1
COUPLING,PROPELLER SHAFT,OUTER 42034A 42034-1178 1
BOOT 49006 49006-1188 1
LABEL-WARNING,OIL 56040 56040-1047 1
BOLT,10X23 92001 92001-1778 1
STUD,10X30,BLACK 92004 92004-1045 4
NUT,16MM 92015 92015-1059 1
NUT,10MM 92015A 92015-1649 4
WASHER,8.2X16X1 92022 92022-1086 1
WASHER,16X32X3.2 92022A 92022-1105 1
WASHER,39X49.5X1 92022B 92022-1294 1
SHIM,T=0.15 92025 92025-1052 AR
SHIM,T=0.50 92025A 92025-1053 AR
SHIM,T=0.60 92025B 92025-1054 AR
SHIM,T=0.70 92025C 92025-1055 AR
SHIM,T=0.80 92025D 92025-1056 AR
SHIM,T=0.90 92025E 92025-1057 AR
SHIM,T=1.00 92025F 92025-1058 AR
SHIM,T=1.20 92025G 92025-1059 AR
SHIM,T=1.30 92025H 92025-1214 AR
SHIM,T=1.32 92025I 92025-1215 AR
SHIM,T=1.34 92025J 92025-1216 AR
SHIM,T=1.36 92025K 92025-1217 AR
SHIM,T=1.38 92025L 92025-1218 AR
SHIM,T=0.10 92025M 92025-1219 AR
SHIM,T=0.20 92025N 92025-1220 AR
SHIM,T=0.30 92025O 92025-1221 AR
SHIM,T=0.50 92025P 92025-1222 AR
SHIM,T=0.60 92025Q 92025-1223 AR
SHIM,T=0.70 92025R 92025-1224 AR
SHIM,T=0.80 92025S 92025-1225 AR
SHIM,T=0.90 92025T 92025-1226 AR
SHIM,T=1.00 92025U 92025-1227 AR
SHIM,T=0.10 92025V 92025-1625 AR
BOLT-FLANGED 130 130X0812 1
BOLT-FLANGED 130A 130Y0825 7
SCREW-PAN-CROS 220 220B0430 1
CIRCLIP-TYPE-C,26MM 480 480J2600 1
PIN-SPRING 555 555A0428 1
ROLLER,4X6 610 610A0406 1
SHIM,T=0.90 920250 92025-1630 AR
SHIM,T=1.20 920251 92025-1631 AR
SHIM,T=0.15 92025W 92025-1626 AR
SHIM,T=0.20 92025X 92025-1627 AR
SHIM,T=0.30 92025Y 92025-1628 AR
SHIM,T=0.60 92025Z 92025-1629 AR
SPACER,PROPELLER SHAFT 92026 92026-1085 1
RING-SNAP,52MM 92033 92033-1074 1
CLAMP,BOOT FITTING 92037 92037-1112 1
BEARING-NEEDLE,KTV384620E01 C3 92046 92046-1057 1
RACE,ORT465021E01 92048 92048-1019 1
SEAL-OIL,S-35477HS 92049 92049-1025 1
SEAL-OIL,S-901159HS 92049A 92049-1026 1
SEAL-OIL,SC32487 92049B 92049-1033 1
RING-O,ID=57.6 92055 92055-1038 1
RING-O,154MM 92055A 92055-1165 1
RING-O,35.8MM 92055B 92055-1281 1
RING-O 92055C 92055-1646 2
PLUG,36X7.5,G.GRAY 92066 92066-1006-GD 1
SPRING,PROPELLER SHAFT 92081 92081-1183 1
BEARING-ROLLER,4T32005X 92116 92116-1004 1
