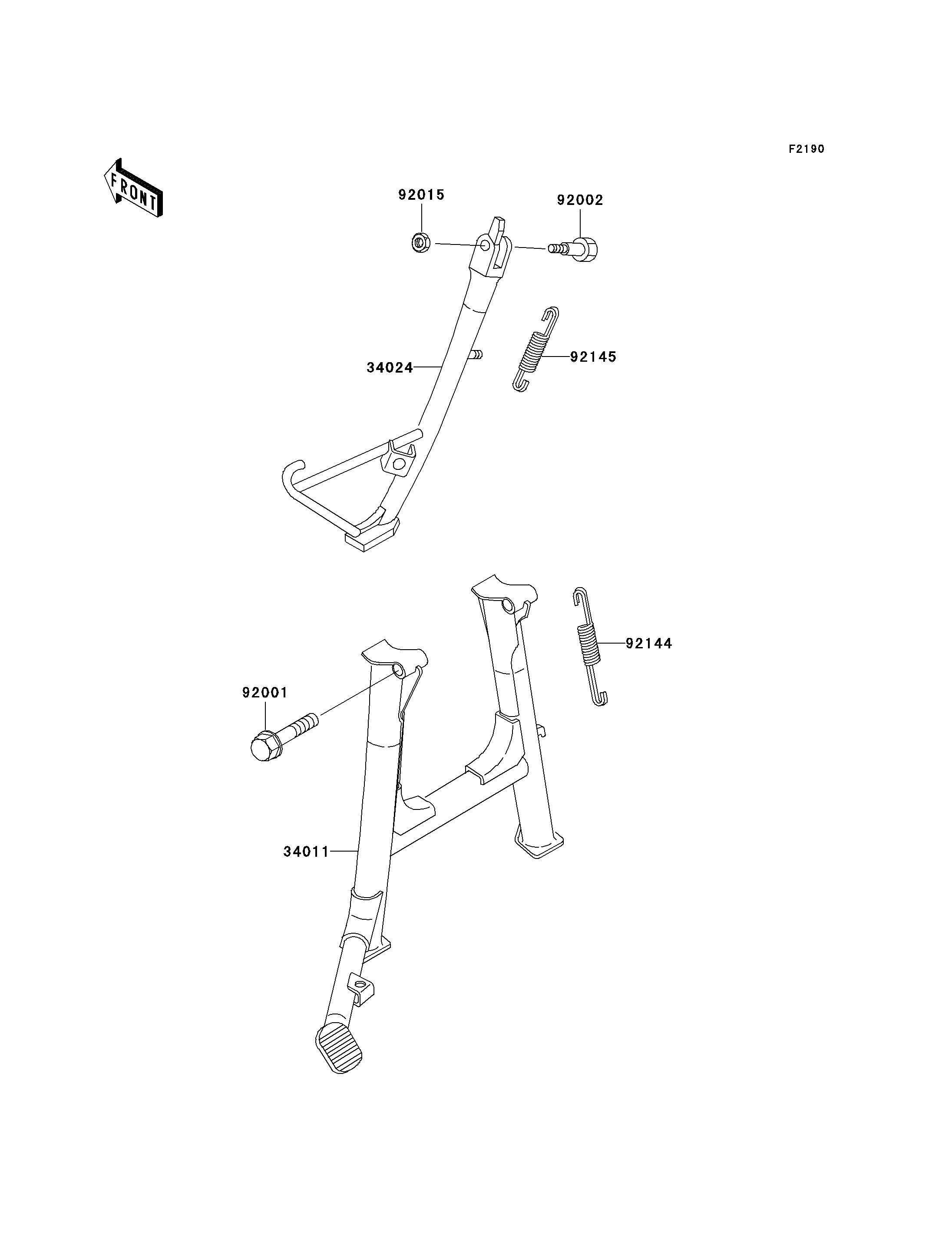

34011
34024
92001
92002
92015
92144
92145
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAND-CENTER 34011 34011-1134 1
STAND-SIDE 34024 34024-1208 1
BOLT,CENTER STAND 92001 92001-1880 2
BOLT,SIDE STAND 92002 92002-1813 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 1
SPRING,CENTER STAND 92144 92144-1098 1
SPRING,SIDE STAND 92145 92145-0092 1
