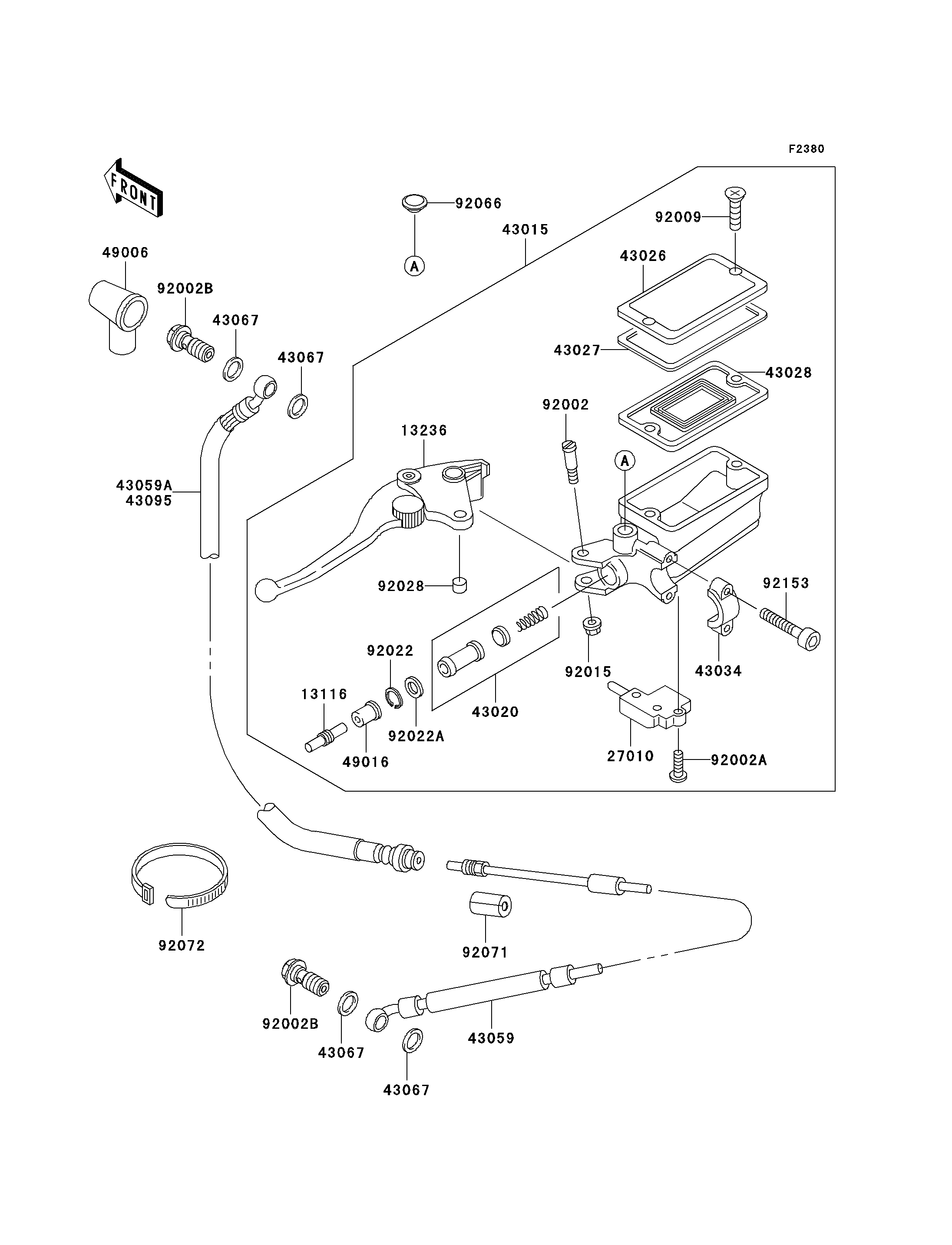

2005 Concours - Clutch Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
13116
13236
27010
43015
43020
43026
43027
43028
43034
43059
43059A
43067
43067
43067
43067
43095
49006
49016
92002
92002A
92002B
92002B
92009
92015
92022
92022A
92028
92066
92071
92072
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROD-PUSH,MASTER CYLINDER 13116 13116-1110 1
LEVER-COMP,CLUTCH 13236 13236-1186 1
SWITCH,CLUTCH 27010 27010-1406 1
CYLINDER-ASSY-MASTER,CLUTCH 43015 43015-1499 1
PISTON-COMP-BRAKE,CLUTCH 43020 43020-1055 1
CAP-BRAKE 43026 43026-1076 1
PLATE-DIAPHRAGM 43027 43027-1055 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1058 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1054 1
HOSE-BRAKE,CLUTCH 43059 43059-1340 1
HOSE-BRAKE,FOR LOW HANDLE 43059A 43059-1824 1 (OPTION)
WASHER,10.5X15X1.5 43067 43067-001 4
HOSE-BRAKE,FOR UP HANDLE 43095 43095-1390 1
BOOT,DUST 49006 49006-1040 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,LEVER SET,BLACK 92002 92002-1322 1
SCREW,4X16 92002A 92002-1325 1
BOLT,OIL,L=23 92002B 92002-1888 2
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
CIRCLIP 92022 92022-1605 1
WASHER,PISTON 92022A 92022-1606 1
BUSHING,MASTER CYLINDER 92028 92028-1310 1
PLUG,9.5X8,POLYETHYLENE 92066 92066-1077 1
GROMMET 92071 92071-1143 1
BAND,L=202 92072 92072-1195 1
BOLT,SOCKET,6X20 92153 92153-0417 2
