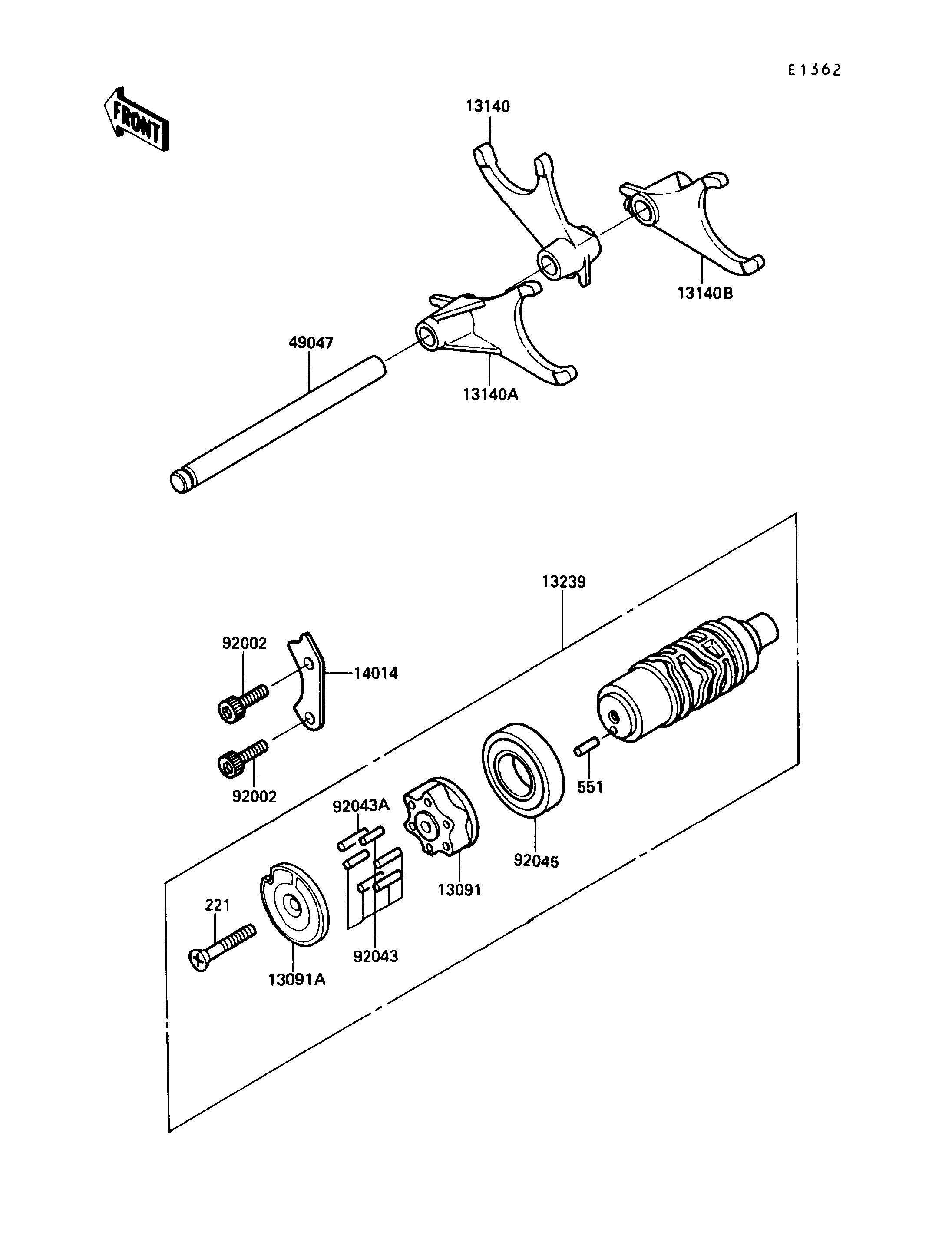

1989 Concours (Canada Only) - Change Drum/Shift Fork

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,CHANGE DRUM 13091 13091-1275 1
HOLDER,NEUTRAL 13091A 13091-1334 1
FORK-SHIFT 13140 13140-1127 1
FORK-SHIFT 13140A 13140-1128 1
FORK-SHIFT 13140B 13140-1129 1
DRUM-ASSY-CHANGE 13239 13239-1122 1
PLATE-POSITION,CHANGE DRUM 14014 14014-1059 1
ROD-SHIFT 49047 49047-1055 1
BOLT,SOCKET,6X16 92002 92002-1778 2
PIN,DOWEL,4X15.8 92043 92042-014 5
PIN,DOWEL,4X17.8 92043A 92042-020 1
BEARING-BALL,16005(NTN) 92045 92045-1045 1
SCREW-CSK-CROS,6X45 221 221B0645 1
PIN-DOWEL,4X8 551 551A0408 1
