Parts Diagrams
OWNER CENTER |
![customer service agent speaking with a customer](/Content/Images/owner-header-mobile.jpg)
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

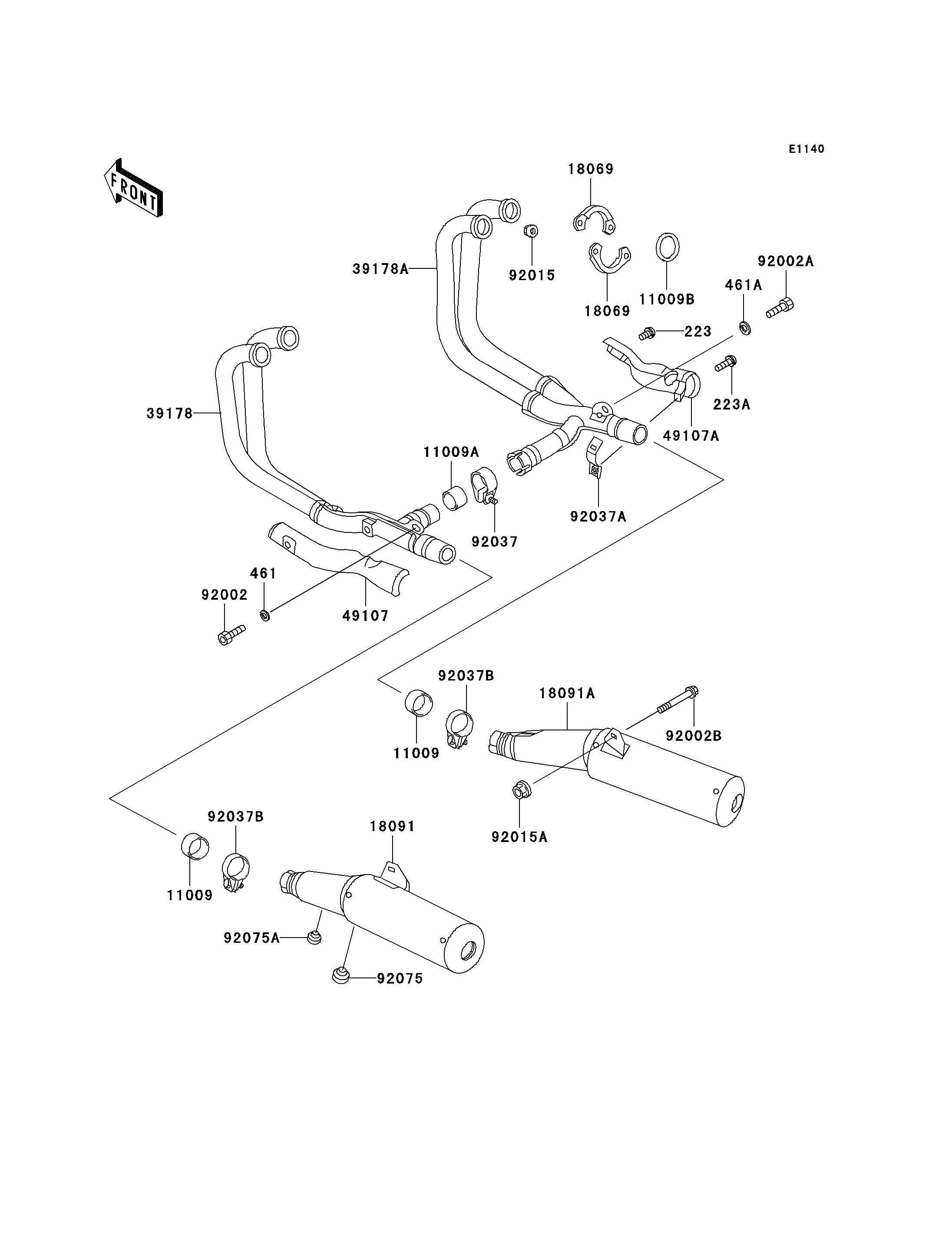

223
223A
461
461A
11009
11009
11009A
11009B
18069
18069
18091
18091A
39178
39178A
49107
49107A
92002
92002A
92002B
92015
92015A
92037
92037A
92037B
92037B
92075
92075A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN-WS-CROS,6X12 | 223 | 223C0612 | 2 | ||
SCREW-PAN-WS-CROS,6X20 | 223A | 223C0620 | 2 | ||
WASHER-SPRING,8MM | 461 | 461F0800 | 1 | ||
WASHER-SPRING,10MM,BLACK | 461A | 461K1000 | 1 | ||
GASKET,EXHAUST PIPE CONNECTING | 11009 | 11009-1666 | 2 | ||
GASKET,EXHAUST MANIFOLD | 11009A | 11009-1668 | 1 | ||
GASKET,EXHAUST PIPE HOLDER | 11009B | 11009-1840 | 4 | ||
HOLDER-EXHAUST PIPE | 18069 | 18069-1122 | 8 | ||
BODY-COMP-MUFFLER,LH | 18091 | 18091-0206 | 1 | ||
BODY-COMP-MUFFLER,RH | 18091A | 18091-0207 | 1 | ||
MANIFOLD-COMP-EXHAUST,LH | 39178 | 39178-1105 | 1 | ||
MANIFOLD-COMP-EXHAUST,RH | 39178A | 39178-1106 | 1 | ||
COVER-EXHAUST PIPE,LH | 49107 | 49107-1053 | 1 | ||
COVER-EXHAUST PIPE,RH | 49107A | 49107-1058 | 1 | ||
BOLT,SOCKET,8X20 | 92002 | 92002-1477 | 1 | ||
BOLT,SOCKET,10X25 | 92002A | 92002-1683 | 1 | ||
BOLT,10X30 | 92002B | 92002-1817 | 2 | ||
NUT,LOCK,8MM | 92015 | 92015-1380 | 8 | ||
NUT,FLANGED,10MM | 92015A | 92015-1387 | 2 | ||
CLAMP,MUFFLER,BLACK | 92037 | 92037-1270 | 1 | ||
CLAMP,EXHAUST PIPE COVER | 92037A | 92037-1506 | 2 | ||
CLAMP,POWER CHAMBER | 92037B | 92037-1537 | 2 | ||
DAMPER | 92075 | 92075-1002 | 1 | ||
DAMPER | 92075A | 92075-281 | 1 |
SCREW-PAN-WS-CROS,6X12 | |
REF # | 223 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-WS-CROS,6X20 | |
REF # | 223A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-SPRING,8MM | |
REF # | 461 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-SPRING,10MM,BLACK | |
REF # | 461A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,EXHAUST PIPE CONNECTING | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,EXHAUST MANIFOLD | |
REF # | 11009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,EXHAUST PIPE HOLDER | |
REF # | 11009B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
HOLDER-EXHAUST PIPE | |
REF # | 18069 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
BODY-COMP-MUFFLER,LH | |
REF # | 18091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY-COMP-MUFFLER,RH | |
REF # | 18091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MANIFOLD-COMP-EXHAUST,LH | |
REF # | 39178 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MANIFOLD-COMP-EXHAUST,RH | |
REF # | 39178A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-EXHAUST PIPE,LH | |
REF # | 49107 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-EXHAUST PIPE,RH | |
REF # | 49107A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X20 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,10X25 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,10X30 | |
REF # | 92002B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
NUT,FLANGED,10MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,MUFFLER,BLACK | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,EXHAUST PIPE COVER | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,POWER CHAMBER | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
