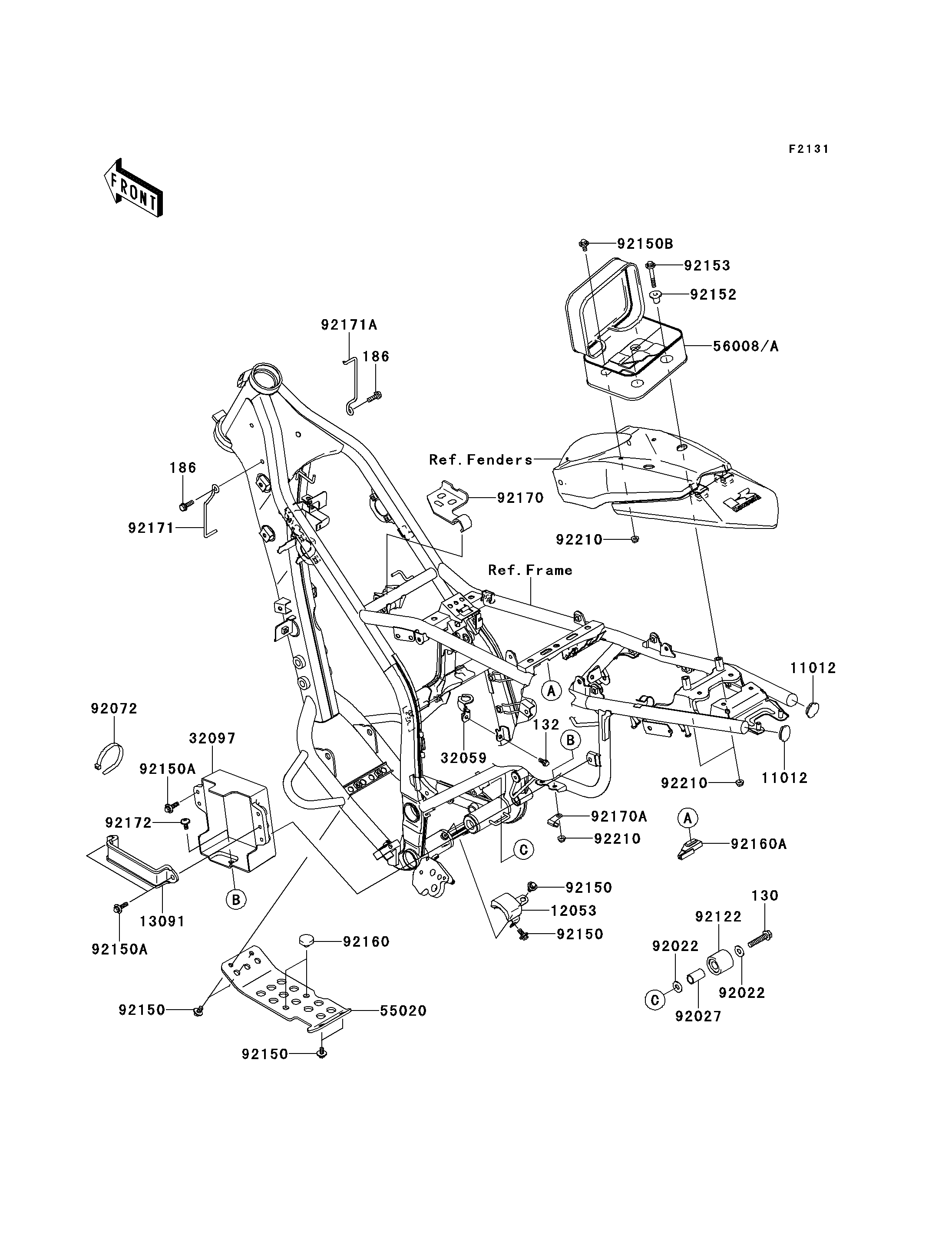

2009 KLX®250S - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
132
186
186
11012
11012
12053
13091
32059
32097
55020
56008
92022
92022
92027
92072
92122
92150
92150
92150
92150
92150A
92150A
92150B
92152
92153
92160
92160A
92170
92170A
92171
92171A
92172
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X40 130 130BA0840 1
BOLT-FLANGED-SMALL,6X12 132 132BB0612 1
BOLT-UPSET-WP,6X20 186 186BA0620 2
CAP 11012 11012-1369 2
GUIDE-CHAIN 12053 12053-0001 1
HOLDER 13091 13091-1875 1
BRACKET-SWITCH,BRAKE 32059 32059-1117 1
CASE-BATTERY 32097 32097-0001 1
GUARD,ENGINE 55020 55020-1456 1
BAG,TOOL,BLACK 56008 56008-0002-MA 1
WASHER,8.5X20X1.6 92022 92022-1561 2
COLLAR,CHAIN ROLLER 92027 92027-1670 1
BAND,L=140 92072 92072-1293 1
ROLLER,CHAIN GUIDE 92122 92122-1153 1
BOLT,6X12 92150 92150-1435 6
BOLT,FLANGED,6X22 92150A 92150-1481 3
BOLT,FLANGED,6X16 92150B 92150-1506 2
COLLAR 92152 92152-0604 2
BOLT,6X45 92153 92153-0003 2
DAMPER 92160 92160-1396 2
DAMPER 92160A 92160-1565 1
CLAMP,HARNESS 92170 92170-1423 1
CLAMP,HARNESS 92170A 92170-1900 1
CLAMP,HARNESS,LH 92171 92171-1775 1
CLAMP,HARNESS,RH 92171A 92171-1907 1
SCREW,6X14 92172 92172-0004 1
NUT,FLANGED,6MM 92210 92210-0630 5
