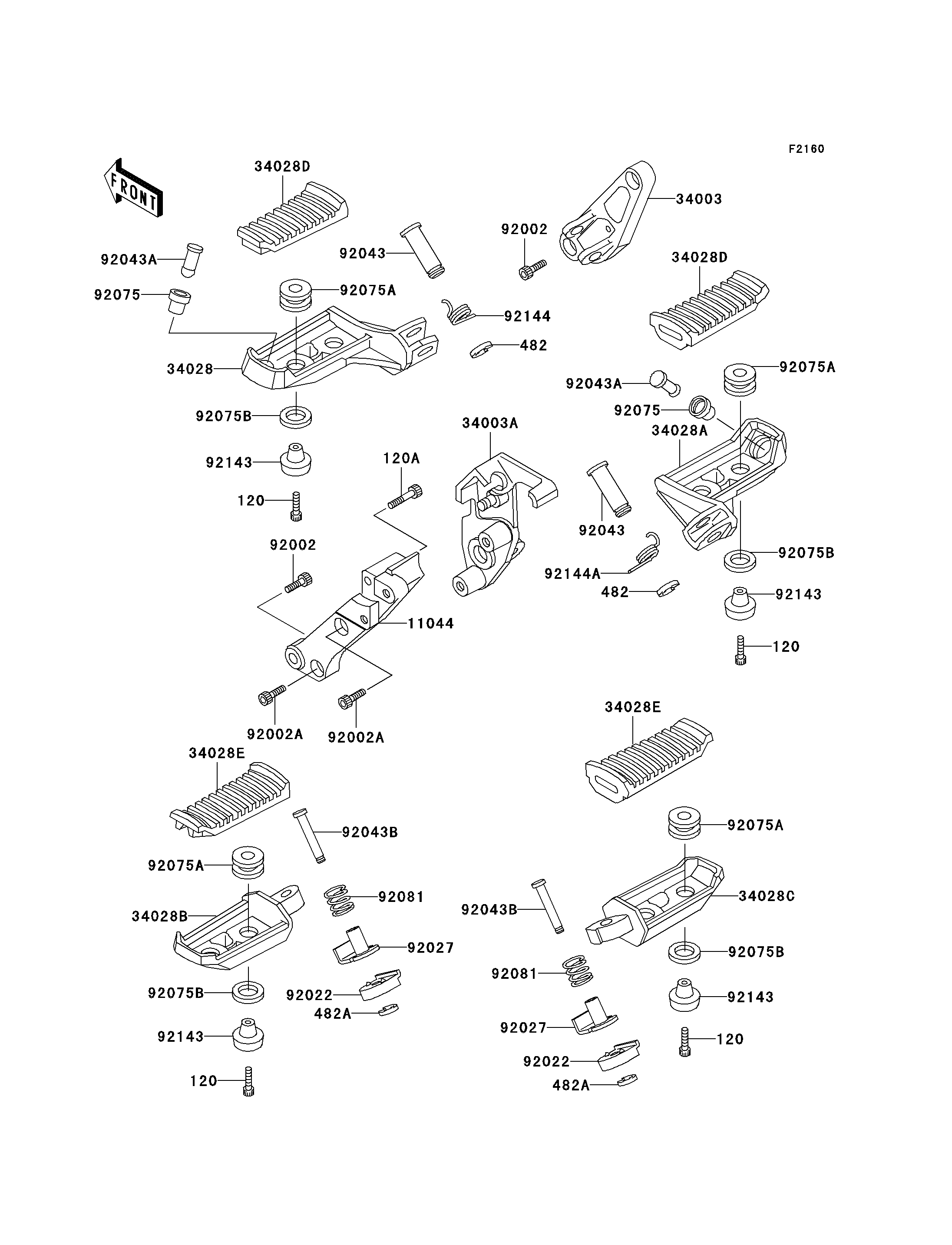

2006 Concours - Footrests

DOWNLOAD PDF
SELECT A NEW PART
120
120
120
120
120A
482
482
482A
482A
11044
34003
34003A
34028
34028A
34028B
34028C
34028D
34028D
34028E
34028E
92002
92002
92002A
92002A
92022
92022
92027
92027
92043
92043
92043A
92043A
92043B
92043B
92075
92075
92075A
92075A
92075A
92075A
92075B
92075B
92075B
92075B
92081
92081
92143
92143
92143
92143
92144
92144A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X20 120 120P0520 8
BOLT-SOCKET,8X40 120A 120P0840 1
CIRCLIP-TYPE-E,10MM 482 482L0100 2
CIRCLIP-TYPE-E,5MM 482A 482L5000 2
BRACKET,FRONT STEP,RH 11044 11044-1911 1
HOLDER-STEP,FR,LH 34003 34003-1259 1
HOLDER-STEP,FR,RH 34003A 34003-1260 1
STEP,FR,LH 34028 34028-1198 1
STEP,FR,RH 34028A 34028-1199 1
STEP,RR,LH 34028B 34028-1200 1
STEP,RR,RH 34028C 34028-1201 1
STEP,FR,RUBBER 34028D 34028-1206 2
STEP,RR,RUBBER 34028E 34028-1207 2
BOLT,SOCKET,8X20 92002 92002-1178 3
BOLT,SOCKET,8X25 92002A 92002-1442 2
WASHER,STEP,RR 92022 92022-1507 2
COLLAR,STEP 92027 92027-1732 2
PIN,12X42.5 92043 92043-1145 2
PIN,BANK SENSOR 92043A 92043-1219 2
PIN,6X38.5 92043B 92043-1238 2
DAMPER,BANK SENSOR 92075 92075-1597 2
DAMPER,MALE 92075A 92075-174 8
DAMPER,FEMALE 92075B 92075-175 8
SPRING,STEP,RR 92081 92081-1612 2
COLLAR,STEP 92143 92143-1005 8
SPRING,STEP RETURN 92144 92144-1567 1
SPRING,STEP RETURN 92144A 92144-1568 1
