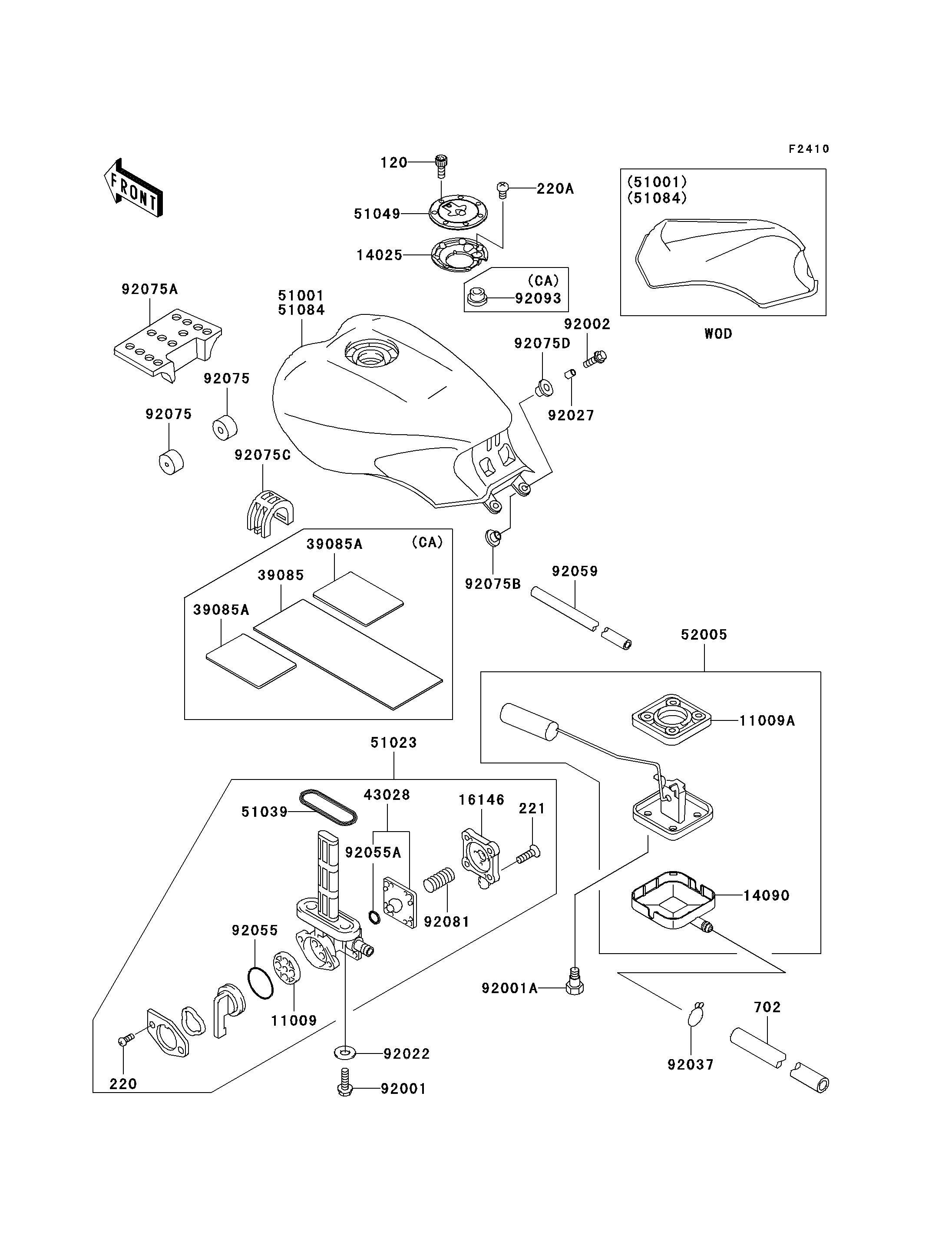

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,TAP VALVE | 11009 | 11009-1530 | 1 | ||
GASKET,FUEL GAUGE | 11009A | 11009-1656 | 1 | ||
COVER,TANK CAP | 14025 | 14025-1913 | 1 | ||
COVER,FUEL GAUGE | 14090 | 14090-1624 | 1 | ||
COVER-ASSY,TAP DIAPHRAGM | 16146 | 16146-1005 | 1 | ||
DIAPHRAGM,TAP | 43028 | 43028-1015 | 1 | ||
TAP-ASSY,FUEL | 51023 | 51023-1388 | 1 | ||
RING,TAP FLANGED | 51039 | 51039-010 | 1 | ||
CAP-TANK,FUEL | 51049 | 51049-1131 | 1 | ||
GAUGE,FUEL | 52005 | 52005-1078 | 1 | ||
BOLT,6X20 | 92001 | 92001-1091 | 2 | ||
BOLT,FUEL GAUGE | 92001A | 92001-1705 | 4 | ||
BOLT-SOCKET,5X12 | 120 | 120S0512 | 7 | ||
SCREW-PAN-CROS,3X8 | 220 | 220B0308 | 2 | ||
SCREW-PAN-CROSS,5X8 | 220A | 220F0508 | 1 | ||
SCREW-CSK-CROS,4X14 | 221 | 221B0414 | 4 | ||
TUBE-RUBBER,7X10X780 | 702 | 702A07780 | 1 | ||
BOLT,6X25 | 92002 | 92002-1137 | 2 | ||
WASHER,6.2X11X1.5 | 92022 | 92022-183 | 2 | ||
COLLAR,6.8X10X14.5 | 92027 | 92027-156 | 2 | ||
CLAMP,TUBE | 92037 | 92037-147 | 1 | ||
RING-O,TAP LEVER | 92055 | 92055-1027 | 1 | ||
RING-O | 92055A | 92055-1664 | 1 | ||
TUBE,5X8X600 | 92059 | 92059-1726 | 1 | ||
DAMPER,FUEL TANK | 92075 | 92075-125 | 2 | ||
DAMPER,FUEL TANK | 92075A | 92075-1672 | 1 | ||
DAMPER,MALE | 92075B | 92075-174 | 2 | ||
DAMPER,FUEL TANK | 92075C | 92075-1741 | 1 | ||
DAMPER,FEMALE | 92075D | 92075-175 | 2 | ||
SPRING,TAP DIAPHRAGM | 92081 | 92081-1171 | 1 | ||
PAD-TANK,CNT | 39085 | 39085-1060 | 1 | CA | |
PAD-TANK,SIDE | 39085A | 39085-1061 | 2 | CA | |
TANK-COMP-FUEL,M.N.BLUE | 51001 | 51001-1616-TK | 1 | CNUS | |
TANK-COMP-FUEL,M.N.BLUE | 51084 | 51084-5066-TK | 1 | CA | |
SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | CA |
