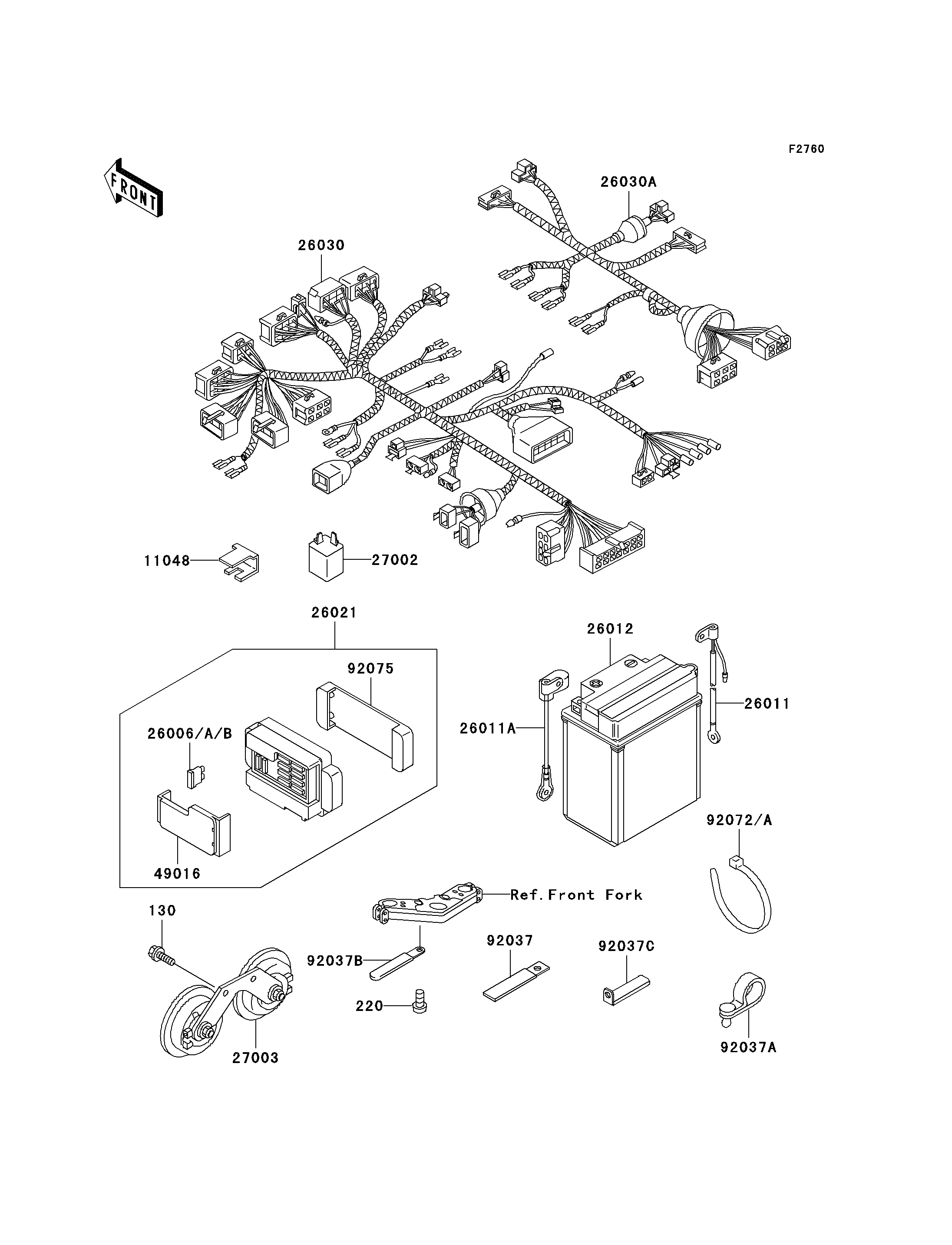

2006 Concours - Chassis Electrical Equipment
130
220
11048
26006
26006A
26006B
26011
26011A
26012
26021
26030
26030A
27002
27003
49016
92037
92037A
92037B
92037C
92072
92072A
92075
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X12 | 130 | 130C0612 | 2 | ||
SCREW-PAN-CROS,5X10 | 220 | 220C0510 | 1 | ||
BRACKET,FUSE LOCK | 11048 | 11048-1680 | 1 | ||
FUSE,30A-G | 26006 | 26006-1067 | 2 | ||
FUSE,10A-R | 26006A | 26006-1068 | 6 | ||
FUSE,15A-B | 26006B | 26006-1069 | 2 | ||
WIRE-LEAD,BATTERY(-) | 26011 | 26011-1323 | 1 | ||
WIRE-LEAD,BATTERY(+) | 26011A | 26011-1358 | 1 | ||
BATTERY,YB18L-A-TP,12V 18AH | 26012 | 26012-1340 | 1 | ||
JUNCTION BOX | 26021 | 26021-1091 | 1 | ||
HARNESS,MAIN | 26030 | 26030-1252 | 1 | ||
HARNESS,COWLING | 26030A | 26030-1285 | 1 | ||
RELAY-ASSY,TURN SIGNAL | 27002 | 27002-1060 | 1 | ||
HORN,DOUBLE | 27003 | 27003-1372 | 1 | ||
COVER-SEAL,FUSE | 49016 | 49016-1170 | 1 | ||
CLAMP,L=60 | 92037 | 92037-1069 | 2 | ||
CLAMP,SPEED,L=58 | 92037A | 92037-1163 | 2 | ||
CLAMP,L=45 | 92037B | 92037-1539 | 1 | ||
CLAMP,HARNESS | 92037C | 92037-1564 | 1 | ||
BAND,L=202 | 92072 | 92072-1195 | 11 | ||
BAND,L=365 | 92072A | 92072-1197 | 3 | ||
DAMPER,JUNCTION BOX | 92075 | 92075-1688 | 1 |
BOLT-FLANGED,6X12 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,5X10 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,FUSE LOCK | |
REF # | 11048 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FUSE,30A-G | |
REF # | 26006 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FUSE,10A-R | |
REF # | 26006A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
FUSE,15A-B | |
REF # | 26006B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WIRE-LEAD,BATTERY(-) | |
REF # | 26011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WIRE-LEAD,BATTERY(+) | |
REF # | 26011A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BATTERY,YB18L-A-TP,12V 18AH | |
REF # | 26012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JUNCTION BOX | |
REF # | 26021 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HARNESS,MAIN | |
REF # | 26030 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HARNESS,COWLING | |
REF # | 26030A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RELAY-ASSY,TURN SIGNAL | |
REF # | 27002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HORN,DOUBLE | |
REF # | 27003 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-SEAL,FUSE | |
REF # | 49016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,L=60 | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,SPEED,L=58 | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,L=45 | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,HARNESS | |
REF # | 92037C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,L=202 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 11 |
DESTINATION | |
REMARKS |
BAND,L=365 | |
REF # | 92072A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
DAMPER,JUNCTION BOX | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
