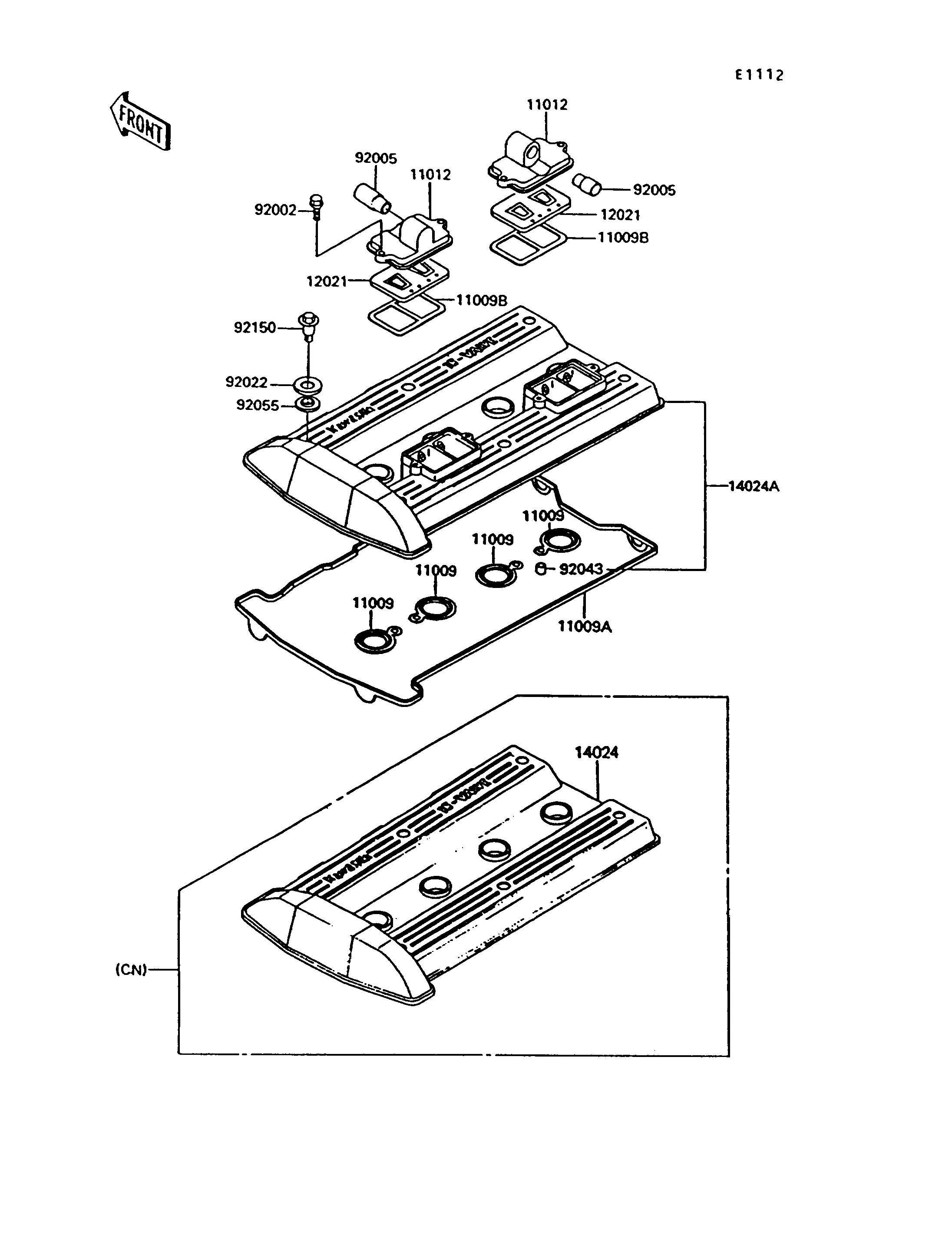

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11009 11009-1377 4
GASKET,CYLINDER HEAD COVER 11009A 11009-1378 1
GASKET,REED VALVE 11009B 11009-1905 2 CAUS
CAP,REED VALVE 11012 11012-1481 2 CAUS
VALVE-ASSY-REED 12021 12021-1053 2 CAUS
COVER,CYLINDER HEAD 14024 14024-1082 1 CN
COVER,CYLINDER HEAD 14024A 14024-1138 1 CAUS
BOLT,6X22 92002 92002-1068 4 CAUS
FITTING,REED VALVE 92005 92005-1006 2 CAUS
WASHER,HEAD COVER BOLT 92022 92022-1487 6
PIN,DOWEL,8X10 92043 92043-1302 4 CAUS
RING-O,HEAD COVER BOLT 92055 92055-1225 6
BOLT,HEAD COVER 92150 92150-1447 6
